Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

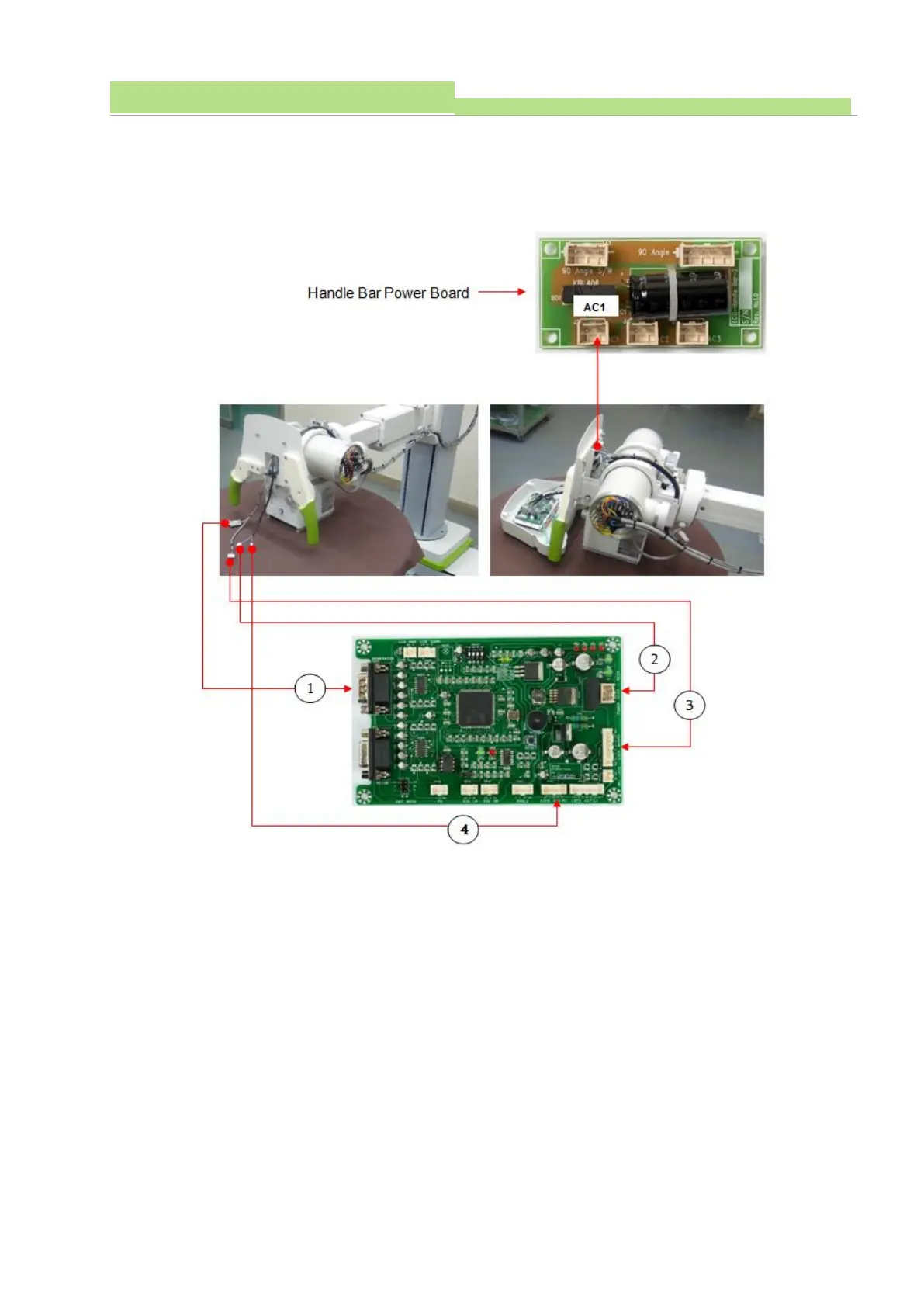

5.10.5.6 Handle bar (LCD module) Cable connection
● There are ports like Generator cable, Angle sensor port, Power port.
● Connect LCD Module first.
● Make correct wiring to LCD Module.
No.1: P609 in Handle Bar PCB goes to OP console SUB port.
No.2: P901 in Handle Bar PCB goes to Handle Bar Power board AC1.
No.3: P703 in Handle Bar PCB goes to P907 on Stand Lock board.
No.4: P601 in Handle Bar goes to Angle sensor.
