Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Presets
- 139 -

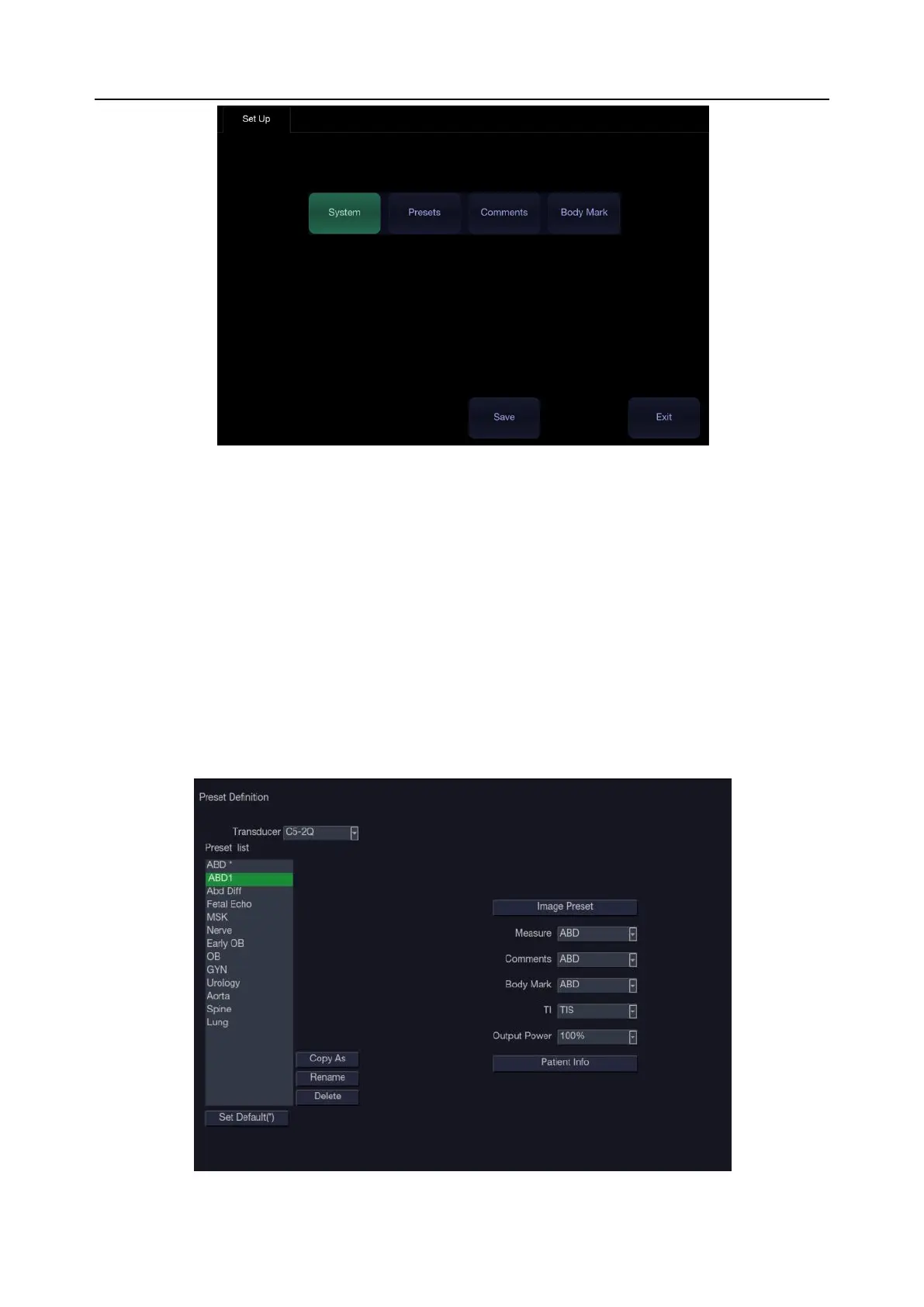

Figure 10-3 Top level Touch Screen for the Setup Function
 Press System to edit overall system settings unrelated to presets. See section 11 for details.
 Press Presets to do any of the following:
o Edit the imaging parameters of an exam preset.
o Configure the demographic fields that appear for that preset
o Configure which Comment, Measure or Body Marker presets are associated with each
exam preset.
 Press Comments to configure the pre-defined text of each comment preset.
 Press Body Mark to configure which body marker graphics appear with each Body Mark
preset.
10.3.1. Exam Preset
Press Presets to display the Exam Preset page, as shown below:
Figure 10-4 The Preset Definition Page
