Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Getting Started
- 17 -
3.2.3. Screen Layout

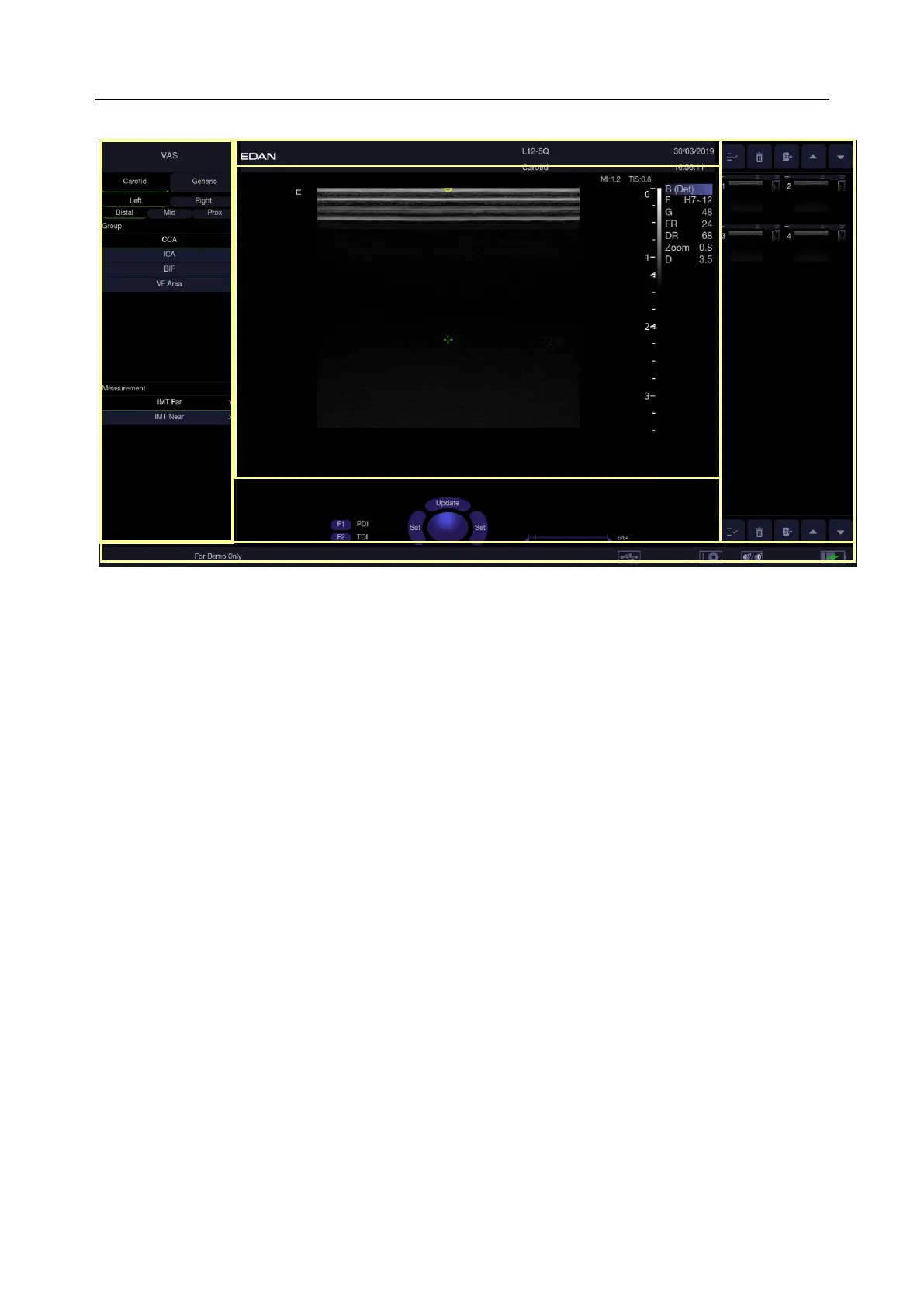

Figure 3-4 Main Screen Display
① Information Field
The top line of this field contains your hospital/institution name. Please see Section 11.1.1 General
Set-up for information on customization.
The second line of this field contains the patient name, gender, age and ID, as entered through the
Patient Information screen.
This field also contains data fields for:
The currently active transducer
The currently active preset
System date and time.
② Image Field
The ultrasound image appears in the Image field, under the Information field. The Image field also
contains information typically associated with the image, such as depth, TGC, maps, image
parameters, MI and TI.
③ Measurements Display Field
The left side of the screen displays available generic and application measurement items for current
exam preset.
④Thumbnail Field
The right side of the screen displays thumbnail images of all statics and clips captured for currently
active exam or when in Review. This field also contains several shortcut keys for selecting, viewing,
deleting, exporting images. See the below for details:
