Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Imaging
- 50 -
Angle
Adjusts the angle of the volume acquisition. Upward presses
increment the angle. Downward presses decrement the
angle.
Surface/
Skeleton
These two radio buttons determine if the acquisition is
optimized for looking at Skeleton or Surface.
3D
Displayed in Pre-4D. Press to switch to Pre-3D.
4D
Displayed in Pre-3D. Press to switch to Pre-4D.
Start
Start an acquisition.
Exit
Exit 3D/4D

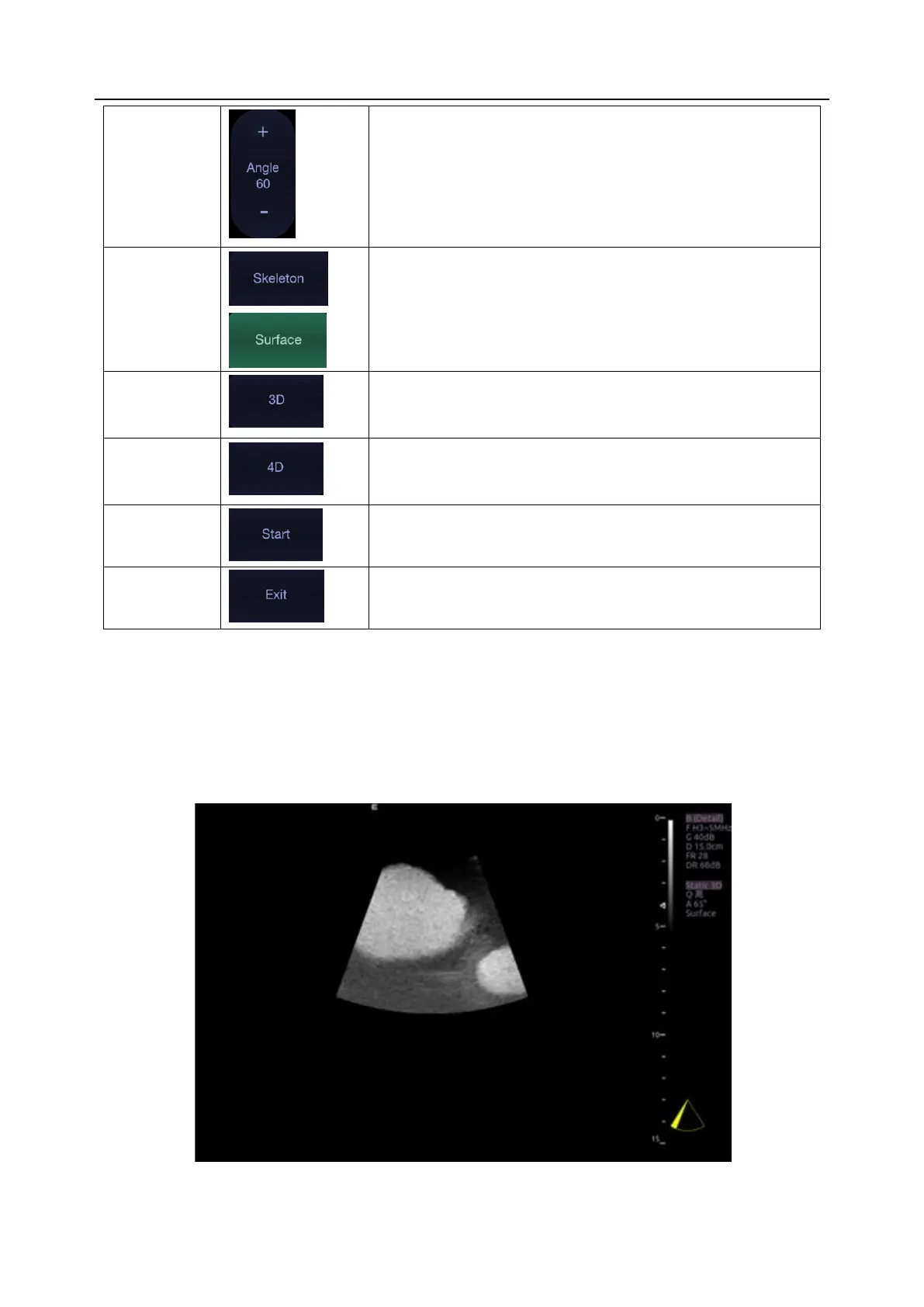

Table 5-7 Pre-3D Touch Screen
5.9.2. 3D Volume Sweeping
Select Skeleton or Surface on the Pre-3D touch screen and press Start button or <Update> key to
start image acquisition.
During the process of 3D volume sweeping, the images swept in VOI box are displayed in the image
area.
Figure 5-2 3D Image Scanning
