5.9.5. 4D Live Volume

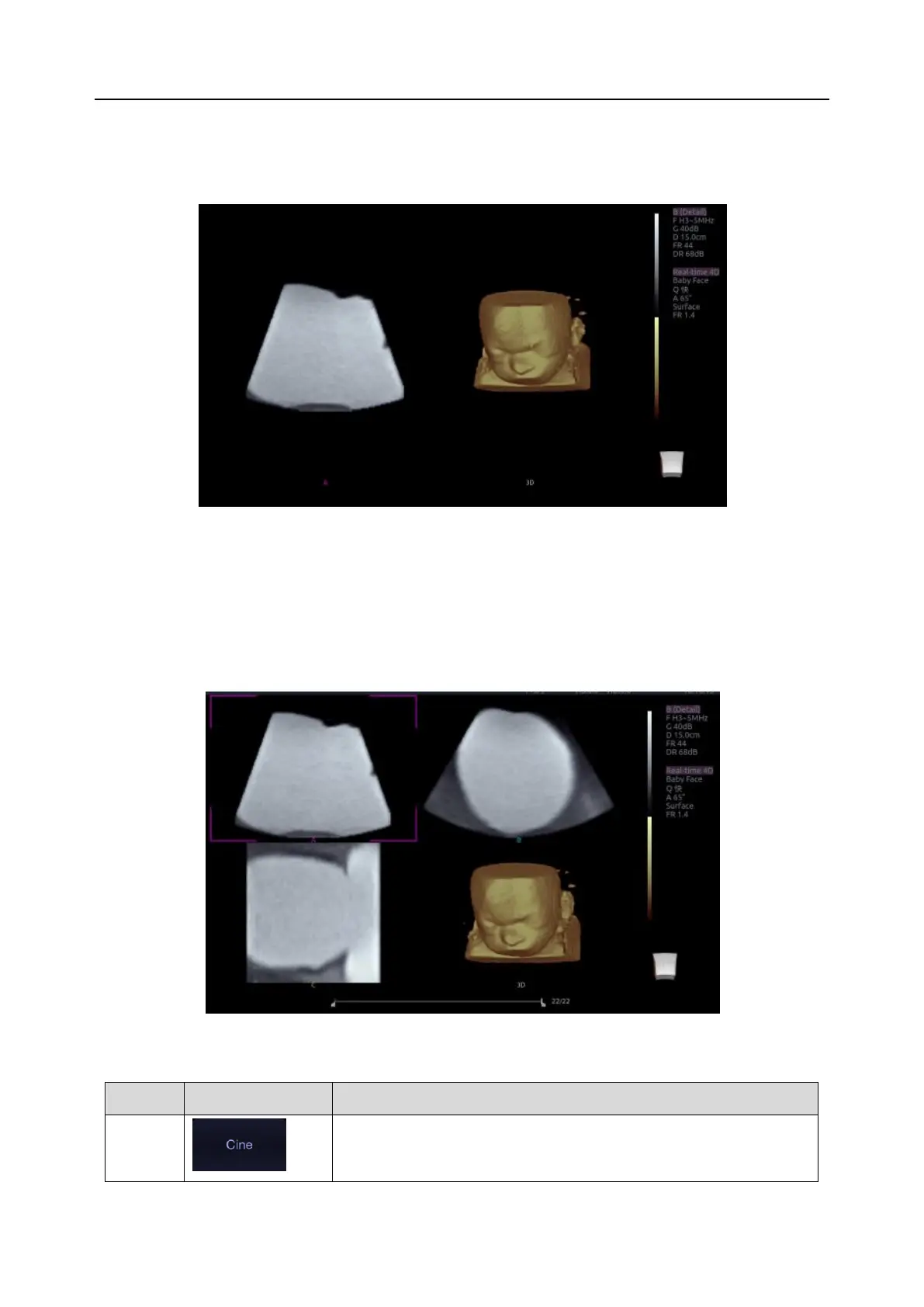

4D Live volume continuously sweeps and displays successive 3D volumes. As shown in figure below,
image in the left is A slice and image in the right is the live 4D volume rendering.
Figure 5-5 4D Volume Sweeping Image
5.9.6. 4D Cine
During the process of 4D live volume imaging, press the <Freeze> button on the control panel to enter
the 4D cine mode. A cine replay scroll bar appears below the images. Use the trackpad to replay the
images. For the selected frame, user can execute all operations that are available in 3D review status.
Press <Freeze> again to return to the live image.
Figure 5-6 4D Cine
Touch screen controls are the same as that of static 3D except for Cine button.
Switch between 3D and 4D review state
Table 5-10 4D Touch Screen
To Next Page
