Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Imaging
- 56 -
Distance
Adjust the distance between slices.
Next
When there are more slices than can be displayed at once
this control cycles through the subset of slices displayed.
Tint
Select multi-slice tint.
Smooth
Adjust smoothness of A\B\C slices. Higher filter levels
create a smoother image. Upward presses increase the
filter. Downward presses decrease the filter.
Rotation X
Rotate the basis slice by the X-axis of the activated
window. Parallel slices change with the rotation operation.
Rotation Y
Rotate the basis slice by the Y-axis of the activated
window. Parallel slices change with the rotation operation.
Rotation Z
Rotate the basis slice by the Z-axis of the activated
window. Parallel slices change with the rotation operation.

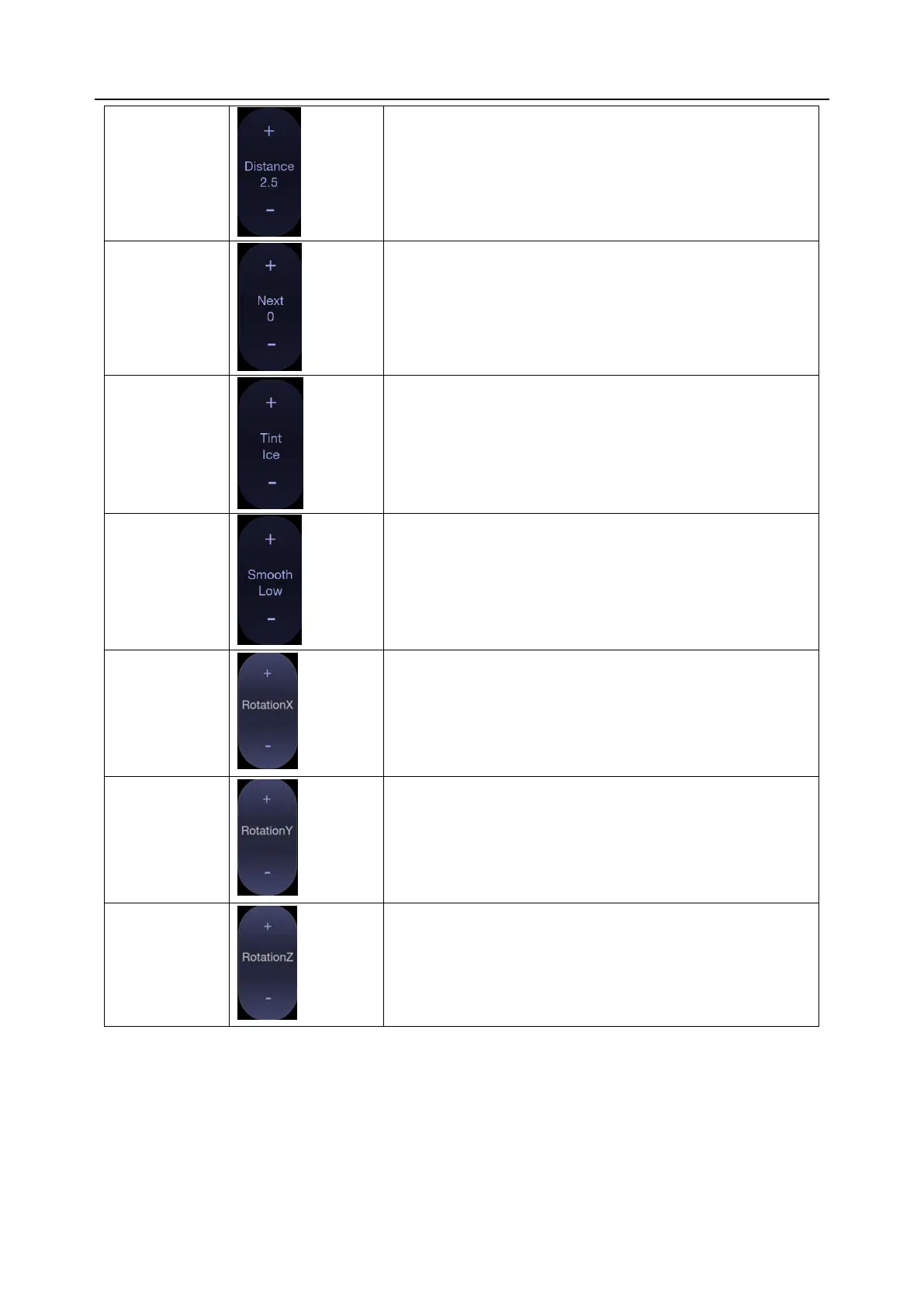

Table 5-9 Multi-slice Mode Touch Screen
5.9.4. 4D Volume Acquisition
In Pre-4D mode, select Skeleton or Surface first, adjust the VOI box and then press Start button on
the touch screen or the <Update> key to begin sweep.
