Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Getting Started
- 14 -
Caution
1. If an external monitor is connected to the system via display port, configure the resolution to
1920x1080, other resolution may cause abnormal ultrasound machine display.
3.2.2. Control Panel

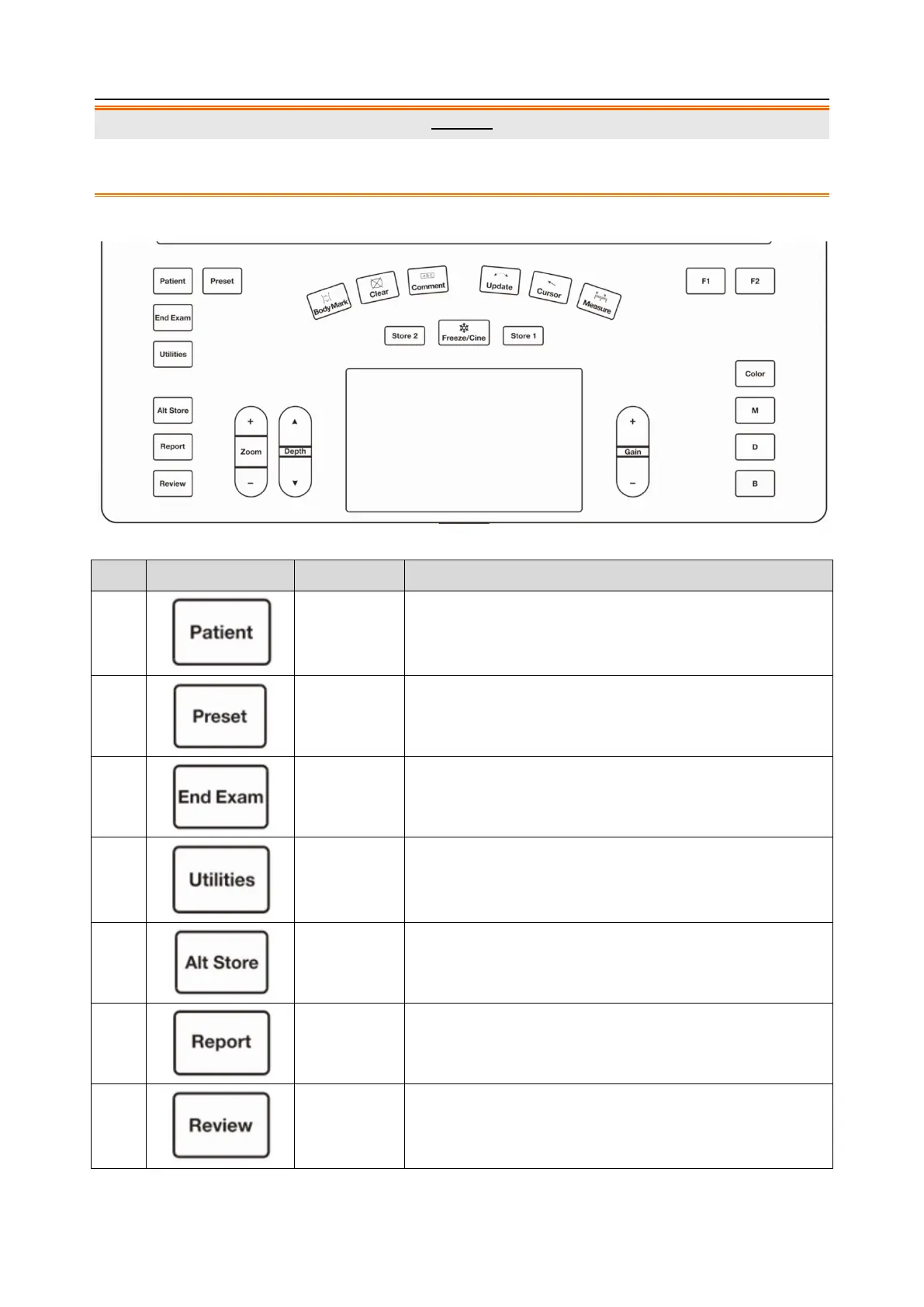

Figure 3-3 Control Panel
No.
Key
Name
Description
1.
Patient
Invokes the Patient Information Screen typically used to
start/end exams or to modify patient information during an
exam. See section 4.
2.
Preset
Allows you to switch transducer or change the Preset
being used.
3.
End Exam
Completes an exam without invoking the Patient
Information Screen for the next exam. See section 4.2.
4.
Utilities
Press this button to display the Set Up, Maintenance,
Connectivity, Screen Adjust keys, etc. on the touch
screen.
5.
Alt Store
One of three keys that can be configured to store images
or clips, or to set video printers. See section 9.1 for
details.
6.
Report
Press to display the report page.
7.
Review
Press to enter exam database or image review mode. See
section 9.2 for details.
