8.3 Worksheet and Report
Worksheet is available at any time during an exam, and is displayed as default on the main screen.
Report contains the information from a worksheet but it is formatted in a slightly different manner.
8.3.1. Worksheet
8.3.1.1. Viewing worksheet
Press <Report> key on the console to open worksheet screen. A worksheet includes: Patient
Information, Measurement/Calculation data, Findings, Comments, etc..

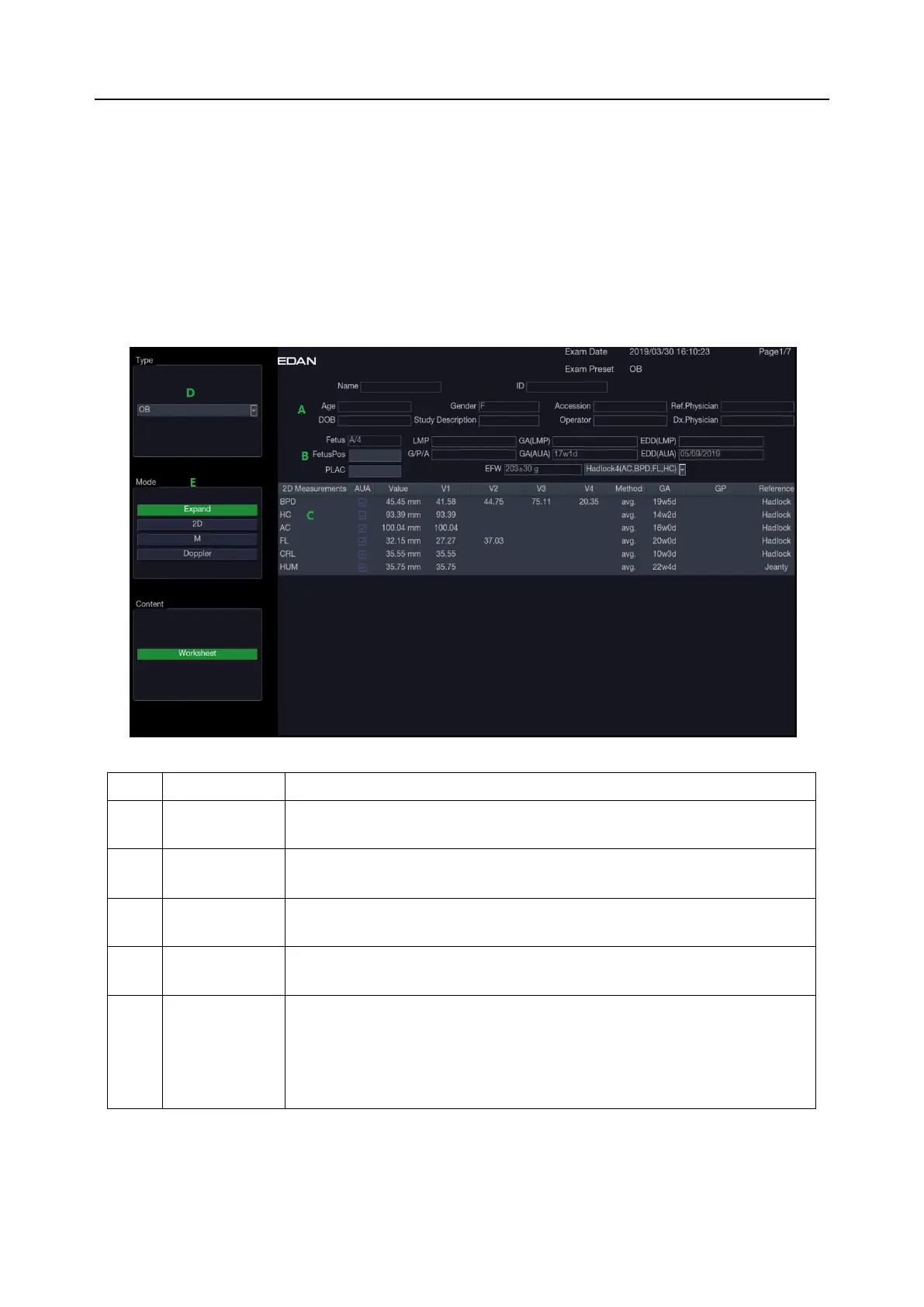

Figure 8-7 Worksheet Main Screen Display
No.
Name
Description
A
Patient
Information
Displays patient and doctor information, which comes from Patient
Information Screen.
B
Obstetric
Information
Displays information related to obstetric exam. Only displayed in
Obstetric exams. See 8.3.1.3 OB worksheet for details.
C
Measurement
Data
Displays all the measured and calculated data of current exam.
D
Exam Type
Selects the exam type from the drop-down list to display its
measurement data.
E
Imaging
Modes
2D, M, Doppler: Press these buttons to display or hide separate
measurement data by image modes.
Expand: Displays all available measurements of current exam preset
no matter whether it is measured or not when it is on, and contracts
unmeasured items when it is off. All those measured items are always
displayed, regardless it is in current measure preset or not.
