Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Getting Started
- 16 -

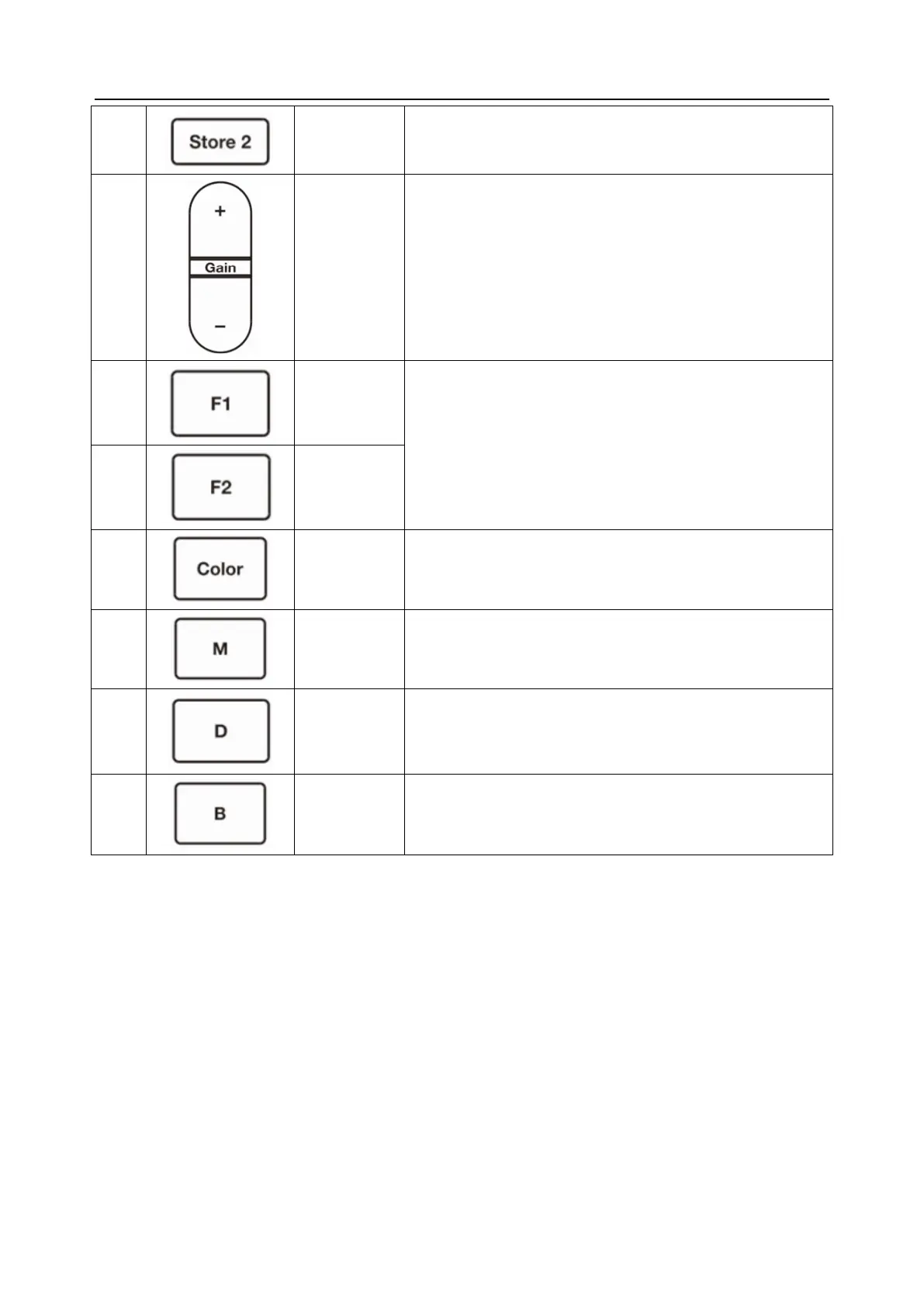

One of three keys that can be configured to store or print
images or clips, or to set video printers. See section 9.1
for details.
Controls the overall gain for the active imaging mode that
currently has the UI focus. In live imaging, the gain can
also be adjusted by sliding your finger along the top of the
trackpad area.
User-defined button. See section 11.1.1 for configuring
the user-defined button.
Press to enter or exit Color Mode.
Press to enter or exit M Mode. Use the trackpad to adjust
the M sample line.
Press to get the sample line. Use the trackpad to adjust
the position of the sample line. Press it again or press
<Update> key to display the Doppler strip.
Press to return to B-mode imaging from any other imaging
modes.
Table 3-5 Buttons on Control Panel
