Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Imaging
- 52 -

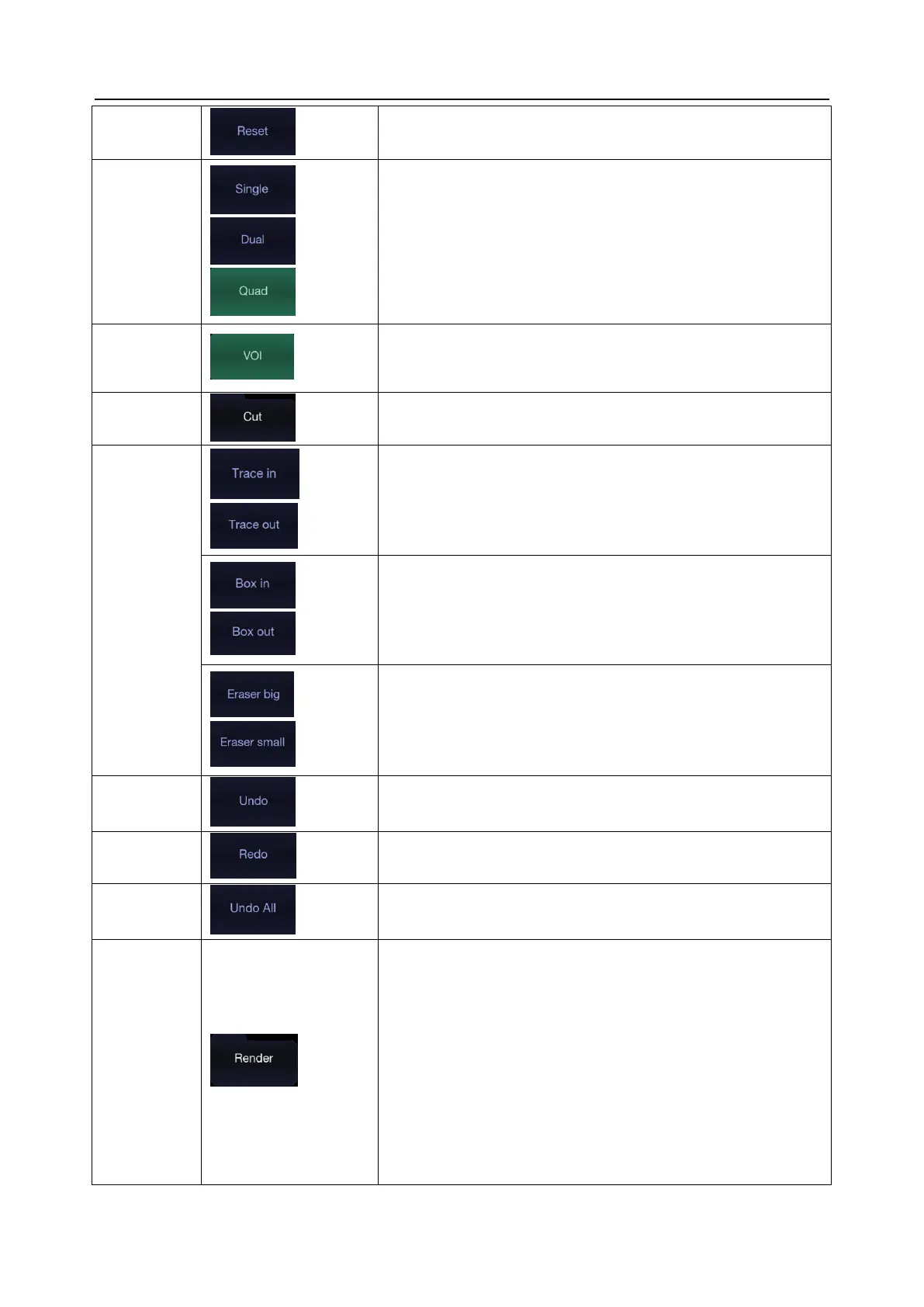

Reset the operation of pan, rotate and zoom to the initial
condition.
These three radio buttons switch the display to show 1, 2, or
4 images at once. Single shows the 3D image, dual shows
the A slice and 3D image, Quad shows three MPR slices and
3D image.
Press to activate the function of adjusting VOI or clip plane.
Use the trackpad to adjust and press <Set> to switch
between VOI and clip plane.
This is a folder of cut functions with various cut tools inside.
See below for details.
These are two radio buttons. The region inside or outside the
trace will be cut. To draw the trace, move the trackpad and
press <Set> to locate the start point, use trackpad to draw
trace and second press <Set> to locate the end point.
These are two radio buttons. The region inside or outside the
box will be cut. To draw the box, move the trackpad and
press <Set> to locate the top left point, move the trackpad
and a box is displayed. Press <Set> to locate the lower right
point of the box.
These two radio buttons switch the size of the eraser. To use
eraser to cut, move the trackpad and press <Set> to locate
the first point, move the trackpad and the path that the eraser
moves is cut, and then press <Set> to complete the cut.
Undo the previous cut operation
Redo the previous undo operation
Return to the condition before cutting
This is a folder containing various render modes inside.
Render modes of Surface, Max, Min and X-ray are available.
Surface: helpful for surface imaging, for example, fetus face,
hand or foot.
Max: displays the maximum intensity of gray values in the
VOI. This is helpful for viewing bony structures.
Min: displays the minimum intensity of gray values in the
VOI. This is helpful for viewing vessel structures.
X-ray: displays the average value of all gray values. This is
helpful for viewing tissues with different structure inside or
tissues with tumor.
