Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Transducers and Biopsy

- 77 -

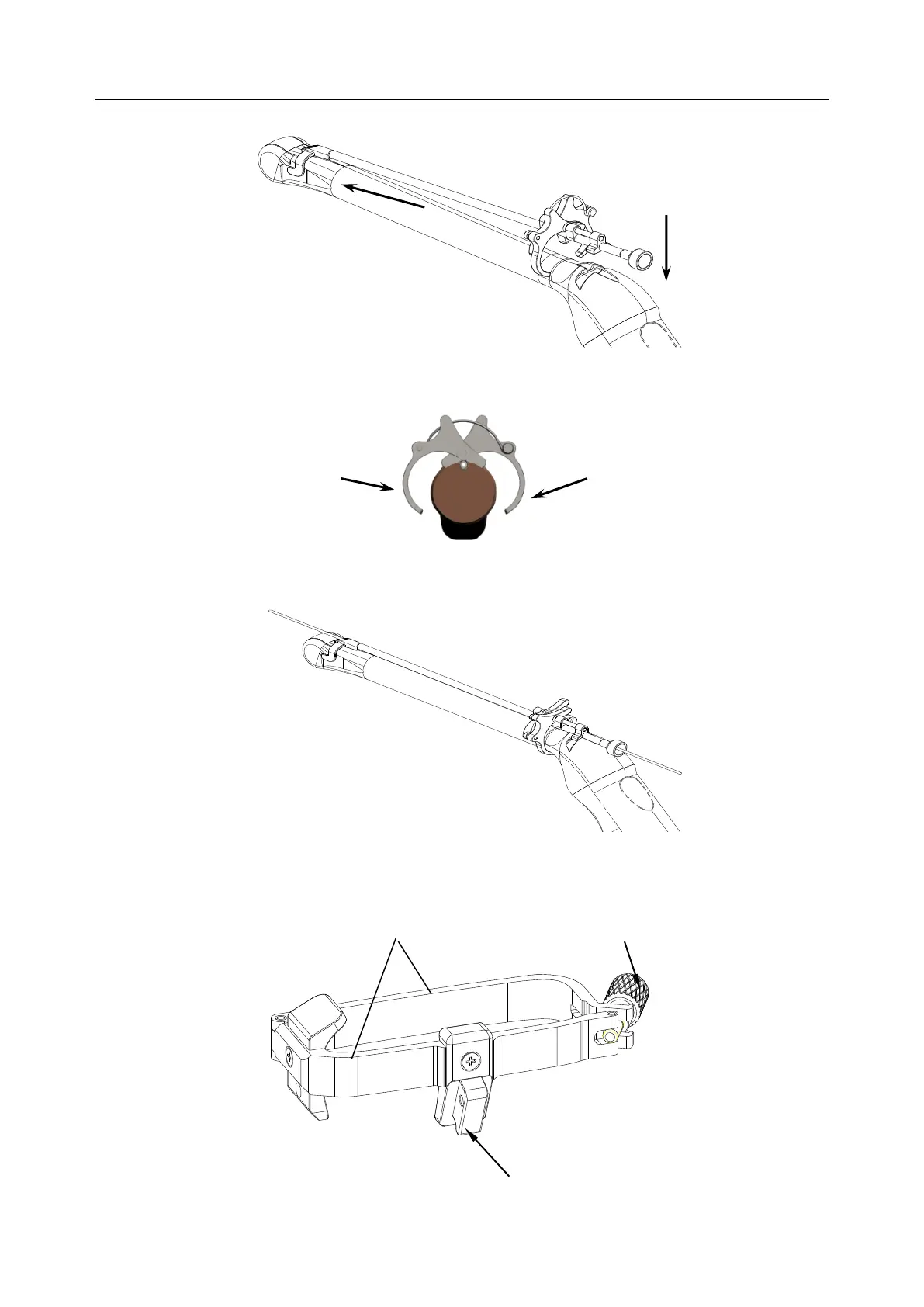

3. Press the left and right side of the clamp as the figure below to attach the bracket to the

transducer firmly.

4. Ensure the bracket is firmly attached, and then place the biopsy needle into the needle guide

path.

 BGK-001/BGK-003

The installation steps for these brackets are the same. Here we take one bracket for illustration.

Structures:

Needle Guide Holder

Clamp

Locking Knob
