F15 Series Fetal & Maternal Monitor Service Manual Connecting to OB TraceVue System
- 67 -
Check other bedside monitors in the OB TraceVue system to see if protocol converters (as
shown in the following illustrations) are used.

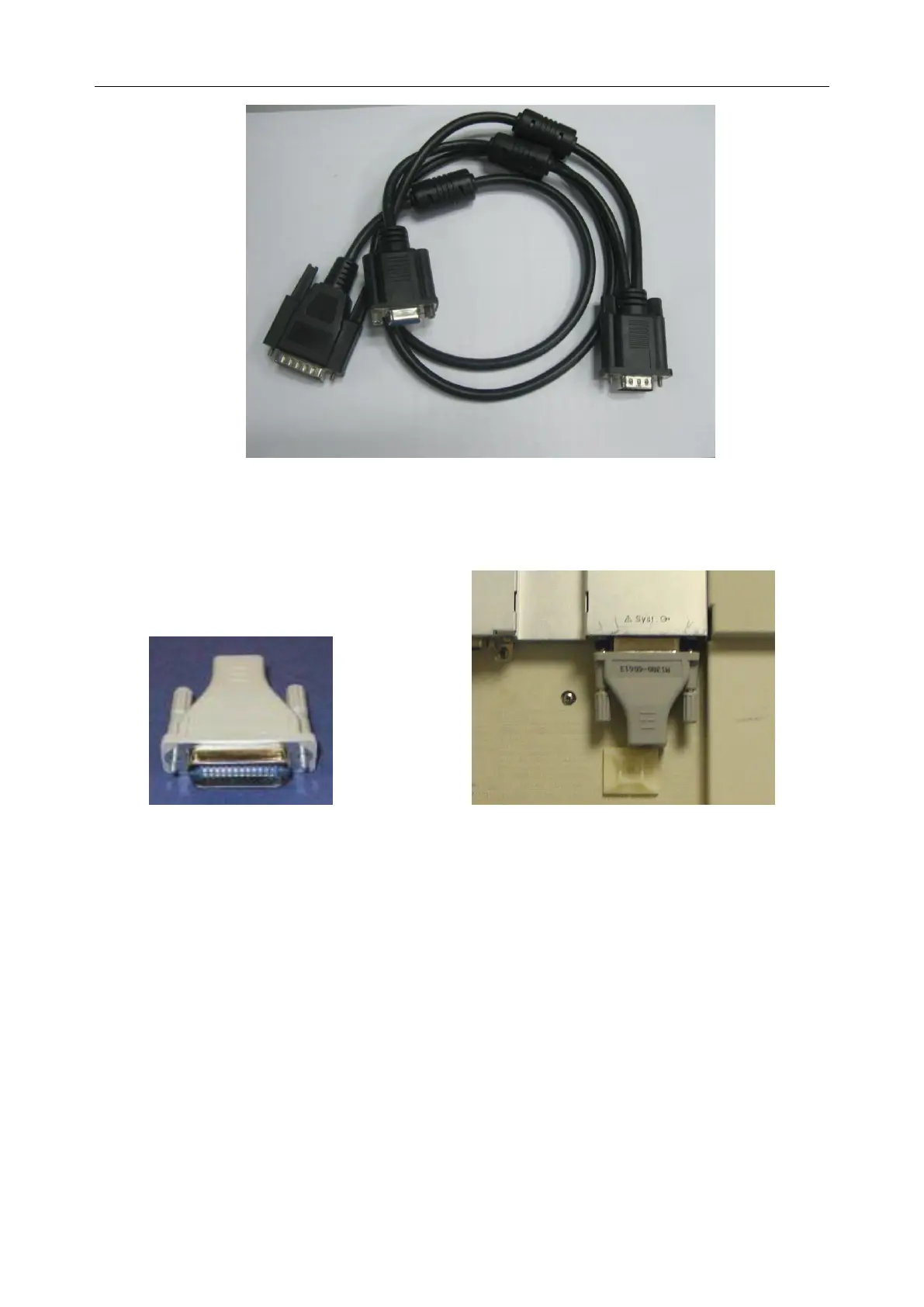

Figure A2-3 Protocol Converter Figure A2-4 A Protocol Converter Used on a Monitor
If protocol converters are used on other bedside monitors, connect F15/F15Air with the
Serial Port to RJ45 Cable #2 (01.13.036124). Otherwise use the cable #1 (01.13.107702).
Connection
Connect the DB15 interface of the DB9 head Y shape cable to the monitor,
Connect the convex plug of the serial port connection wire to the DB9 interface of the DB9
head Y shape cable; connect the concave plug to the DB9 interface of the OB TraceVue system.
Or
Connect the convex plug of the Serial Port to RJ45 Cable to the DB9 interface of the DB9
head Y shape cable; connect the RJ45 plug of the Serial Port to RJ45 Cable to the free RJ45
interface of the OB TraceVue system.
