M3 Vital Signs Monitor User Manual TEMP Monitoring (Optional)
- 81 -

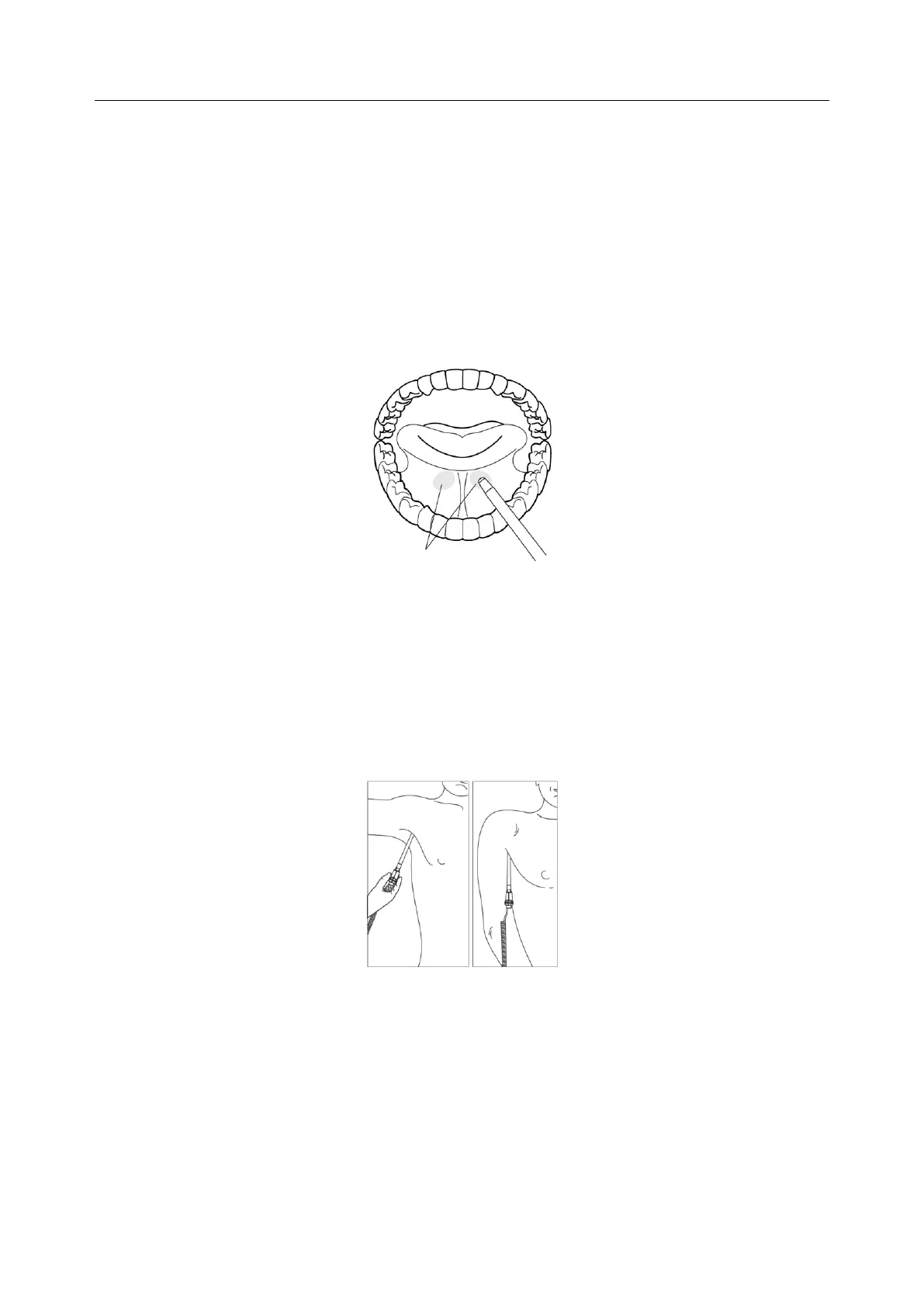

2. Withdraw probe and apply a probe cover. The thermometer turns on automatically and a
beep will be heard when the probe completes warm-up.
3. For Oral temperatures, insert the probe tip deep into the sublingual pocket next to the
frenulum linguae, (vertical fold of tissue in middle of tongue), on one side or the other,
toward the back of the mouth.
NOTE:
Accurate body temperature readings can only be obtained in one of these two “heat
pocket” locations as shown. Temperatures taken in other mouth locations will result in
inaccurate body temperature readings.
4. Patient’s mouth must be CLOSED.
5. Securely hold the probe in place until the temperature is displayed.
6. For Axillary temperatures, have the patient raise the arm, then place the probe tip in the
axilla. Press gently to assure good contact. For the most accurate temperature the probe tip
should be placed directly against the patient’s skin.
7. Have the patient then lower the arm and remain as still as possible. Hold the probe parallel to
the arm as shown.
8. If three short beeps are heard, it means the unit switched to Monitoring Mode for this
temperature only.
9. Two beeps are sounded when measurement is complete and the final temperature is
displayed.
10. Eject the used cover into a bio-waste container by pushing top button.
Rectal Temperature Taking
1. Make certain that the Red isolation chamber/probe unit is attached.
To Next Page
