EDAN SE-1201 - 2.4 Right Panel Connectors

SE-1201 Electrocardiograph User Manual Introduction
- 13 -
Name Explanation
A
Potential Equalization
Conductor
Potential equalization conductor provides a
connection between the unit and the potential equalization
bus bar of the electrical installation.
B Mains Supply Socket AC SOURCE: alternating current supply socket
C Handle Part for people to hold
D Heat Emission Hole Path for internal heat emission
E Fuse The specification is: T3.15AH 250V Ø5×20
2.4 Right Panel

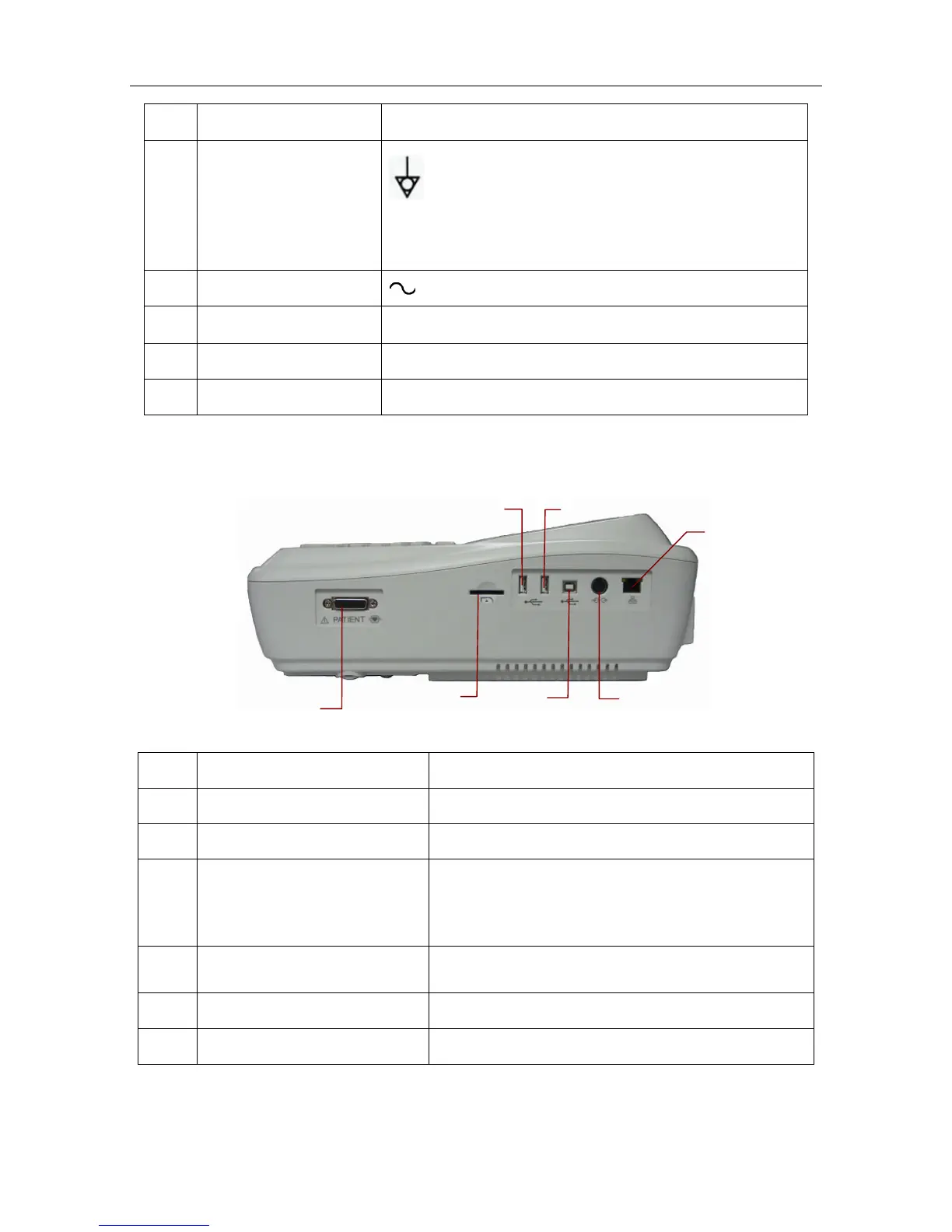

Figure 2-4 SE-1201 Right Panel
Name Explanation
A Patient Cable Socket Connecting to the patient cable
B SD Card Socket Connecting to SD card
C USB Socket 1/2
Standard USB Host socket, connecting to a U disk,
a bar code reader or a USB printer recommended by
the manufacturer
D USB Socket 3 Standard USB Device socket, connecting to a PC.
E External Input / Output Socket Connecting to the external signal device
F Net port Standard net port, connecting to a PC
C
A
E
F
C
B
D
