Chapter 8 Managing Orders
NOTE: To use the order function, the Smart ECG Viewer software of the manufacturer
must be installed in the PC.
Select Order on the main screen2 to open the Order Manager screen.

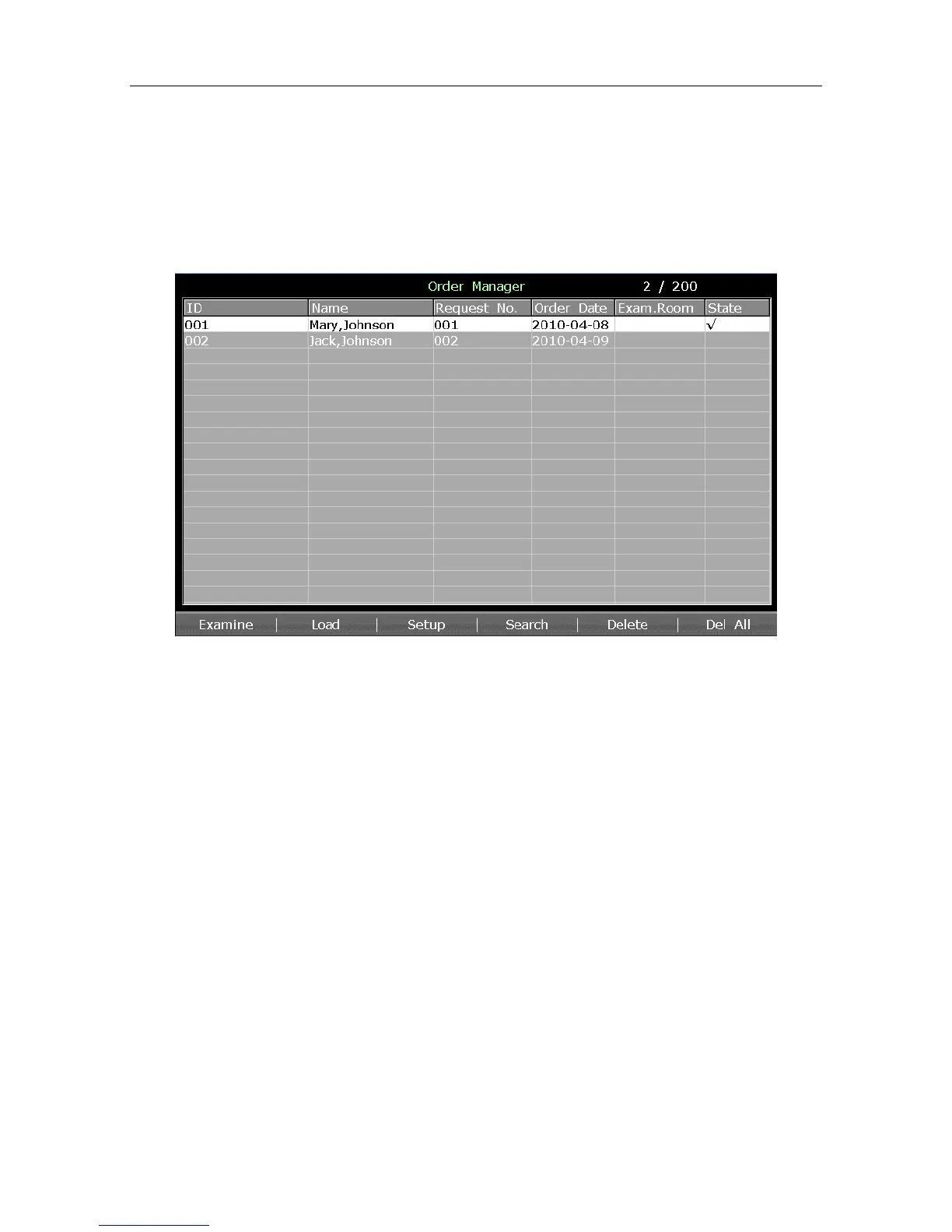

Figure 8-1 Order Manager
Screen
8.1 Loading Orders
Before loading orders, please configure on the Order Setup screen. For details, please refer to
Section 8.5 “Setting Orders”.
Operation procedures are as follows:
1. Connect the electrocardiograph to the PC installed with the Smart ECG Viewer software by
using an Ethernet cable recommended by the manufacturer.
2. Set Remote IP, Local IP, Gateway and Subnet Mask in the Transmission Setup window.
For details, please refer to Section 7.1.1 “Transmitting ECG Data in DAT Format through Net
Cable”.
3. Select Order on the main screen2 to open the Order Manager screen.
4. Select Load on the Order Manager screen to load orders from the Smart ECG Viewer
software, and then a hint will be displayed as follows.
To Next Page
Loading...
