SE-1201 Electrocardiograph User Manual Introduction
- 16 -

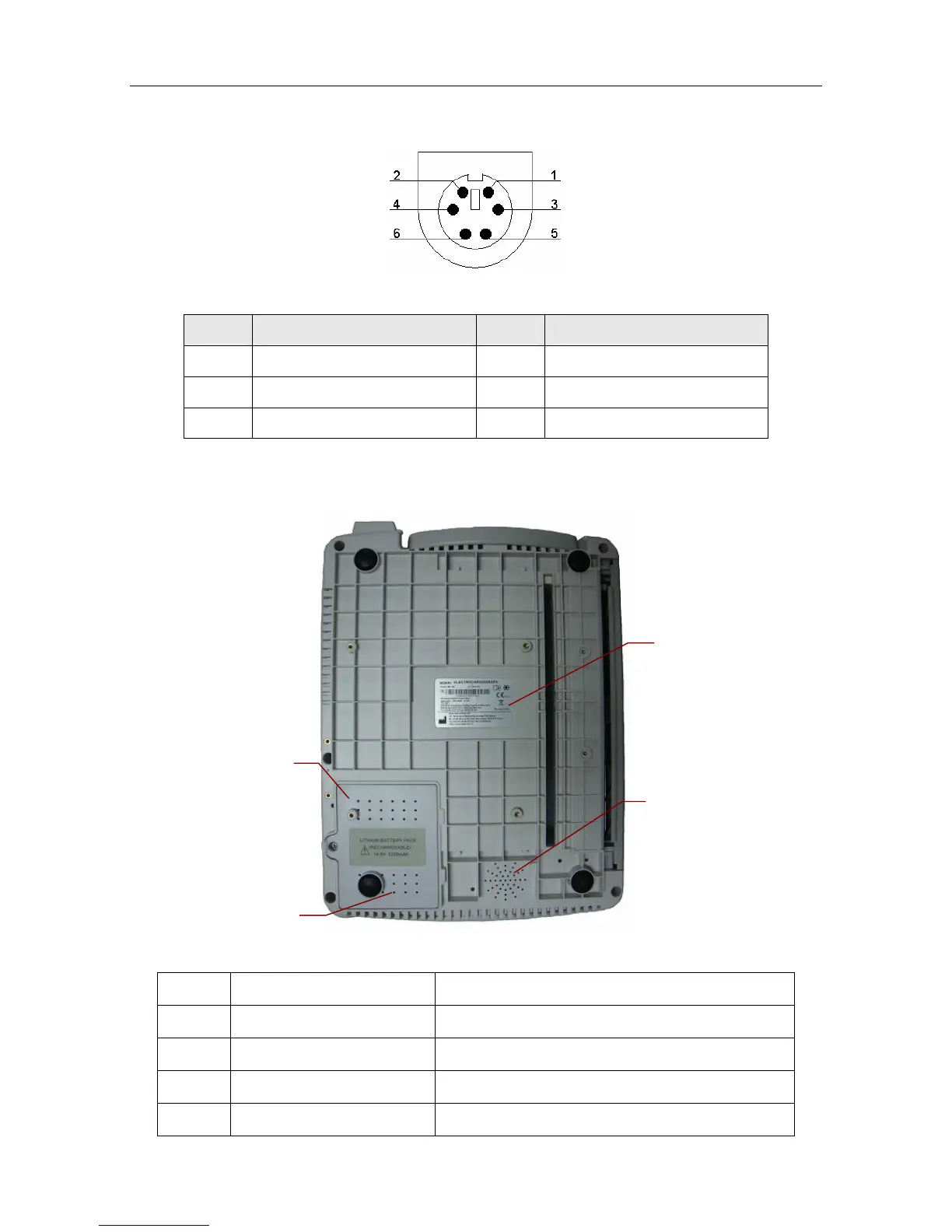

4) External Input/Output Socket
Definitions of corresponding pins:
Pin Signal Pin Signal
1
GND
4
GND
2
GND
5
ECG Signal (input)
3
GND
6
ECG Signal (output)
2.5 Bottom Panel
Figure 2-5 SE-1201 Bottom Panel
Name Explanation
A Speaker Hole Path for sound from speaker
B Battery Compartment Compartment for the battery
C Heat Emission Hole Path for internal heat emission
D Label Position for product information label
B
D
A
C
