Definitions of corresponding pins:
Pin Signal Pin Signal Pin Signal
1
CD DAT3
5
CLK
9
DAT2
2
CMD
6
Vss
10
CD
3
Vss
7
DAT0
11
WP
4
Vcc
8
DAT1

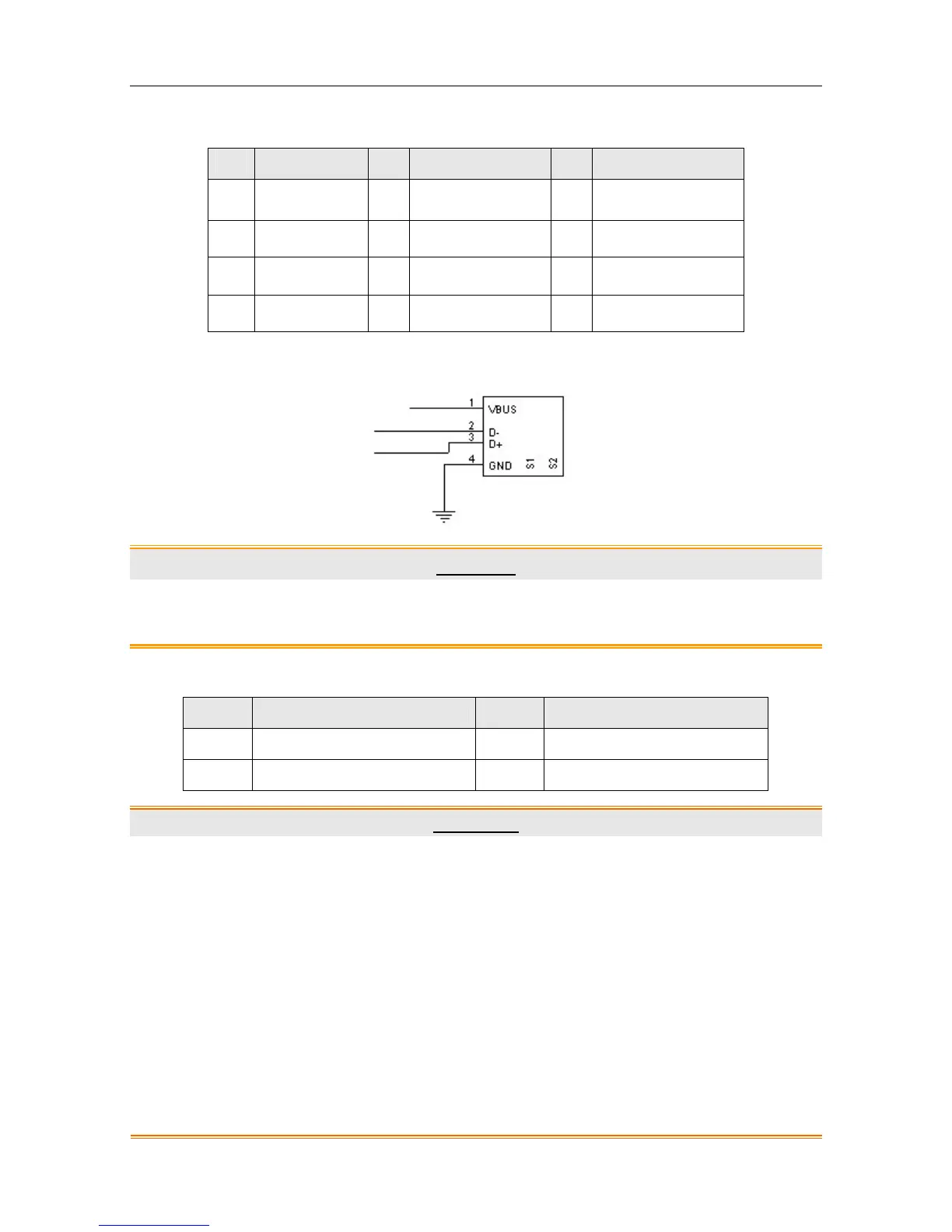

3) USB Socket 1/USB Socket 2/USB Socket 3
CAUTION
Only the USB equipment recommended by the manufacturer can be connected to the
USB socket 1/2.
Definitions of corresponding pins:
Pin Signal Pin Signal
1
+5V
3
D+
2
D-
4
GND
WARNING
1. Accessory equipment connected to the analog and digital interfaces must be certified
according to the respective IEC/EN standards (e.g. IEC/EN 60950 for data
processing equipment and IEC/EN 60601-1 for medical equipment). Furthermore all
configurations shall comply with the valid version of the standard IEC/EN 60601-1-1.
Therefore anybody, who connects additional equipment to the signal input or output
connector to configure a medical system, must make sure that it complies with the
requirements of the valid version of the system standard IEC/EN 60601-1-1. If in
doubt, consult our technical service department or your local distributor.
2. If multiple instruments are connected to a patient, the sum of the leakage currents
may exceed the limits given in the IEC/EN 60601-1 and may pose a safety hazard.
Consult your service personnel.
