SE-1201 Electrocardiograph User Manual Printing ECG Reports
- 49 -
2. When the main screen is displayed, press the MODE key to select the manual mode. Press
F3 to select a paper speed. Press F4 to switch the gain. Press F5 to set the EMG filter or the
Lowpass filter.
3. Press the Left or Right arrow to select the lead group to be displayed and printed.
4. Press the PRINT/STOP key to print an ECG report. Or press the PRINT/STOP key to stop
printing the ECG report.
6.1.3 Rhythm Mode
Operation Method:

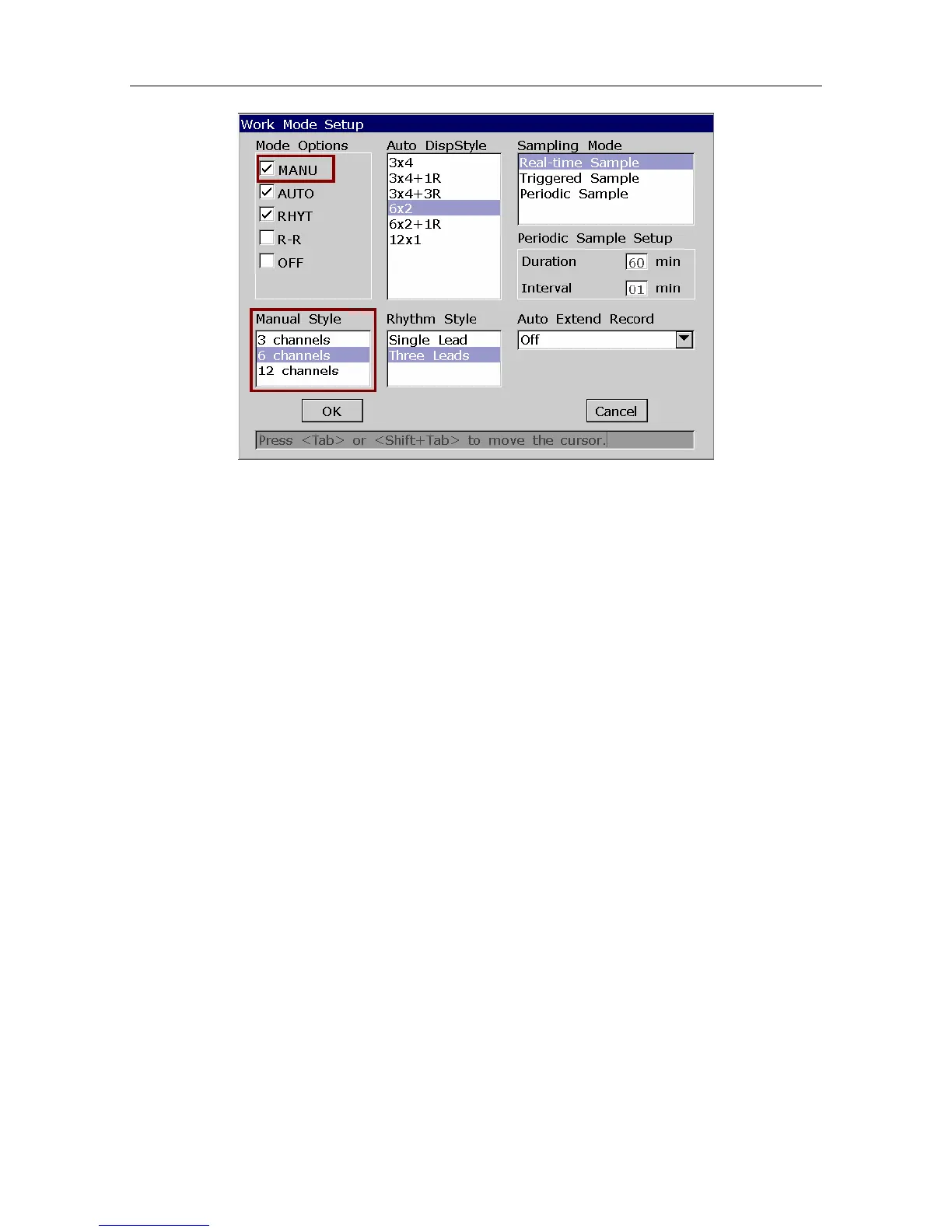

1. To set Mode Options, Rhythm Style, Rhythm Lead1/2/3 or Lead Sequence (Optional)
1) Select RHYT from the Mode Option list in the Work Mode Setup window.
2) Select a style from the Rhythm Style list in the Work Mode Setup window.
3) Select a lead from the Rhythm Lead1/2/3 list in the Lead Setup window.
4) Select a sequence from the Lead Sequence list in the Lead Setup window.
5) Press Enter to confirm.

EDAN SE-1201 Specifications

General

Category	Medical Equipment
Model	SE-1201
Brand	EDAN
ECG Channels	12
Parameters Monitored	ECG, RESP, SpO2, NIBP, TEMP, IBP, CO2, AG
ECG	Yes
RESP	Yes
SpO2	Yes
NIBP	Yes
TEMP	Yes
IBP	Yes
CO2	Yes
AG	Yes
Printing	Built-in thermal printer
Data Storage	Yes
Power Supply	AC 100-240V, 50/60Hz
Battery Life	Up to 4 hours
Display	12.1 inch color TFT LCD
Connectivity	USB
Weight	3.5 kg
