SE-1201 Electrocardiograph User Manual Entering Patient Information
- 45 -
3. When the main screen is displayed, scan the patient’s bar code with the bar code reader, and
then the patient information will appear in the corresponding box.
NOTE: Only bar code readers, complying with the standards Bar Code 128 and Bar Code
93 and recommended by the manufacturer, can be used.
5.3 Entering Patient Information by Acquiring Orders
NOTE: To use the order function, the Smart ECG Viewer software of the manufacturer
must be installed in the PC.
Operation procedures are as follows:
1. Connect the electrocardiograph to the PC with Ethernet cable recommended by the
manufacturer.
2. Log into the Smart ECG Viewer software.
3. Set Remote IP, Local IP, Gateway and Subnet Mask in the Transmission Setup window.
For details, please refer to Section 7.1.1 “Transmitting ECG Data in DAT Format through
Ethernet Cable”.
4. Select Order Acquired function.

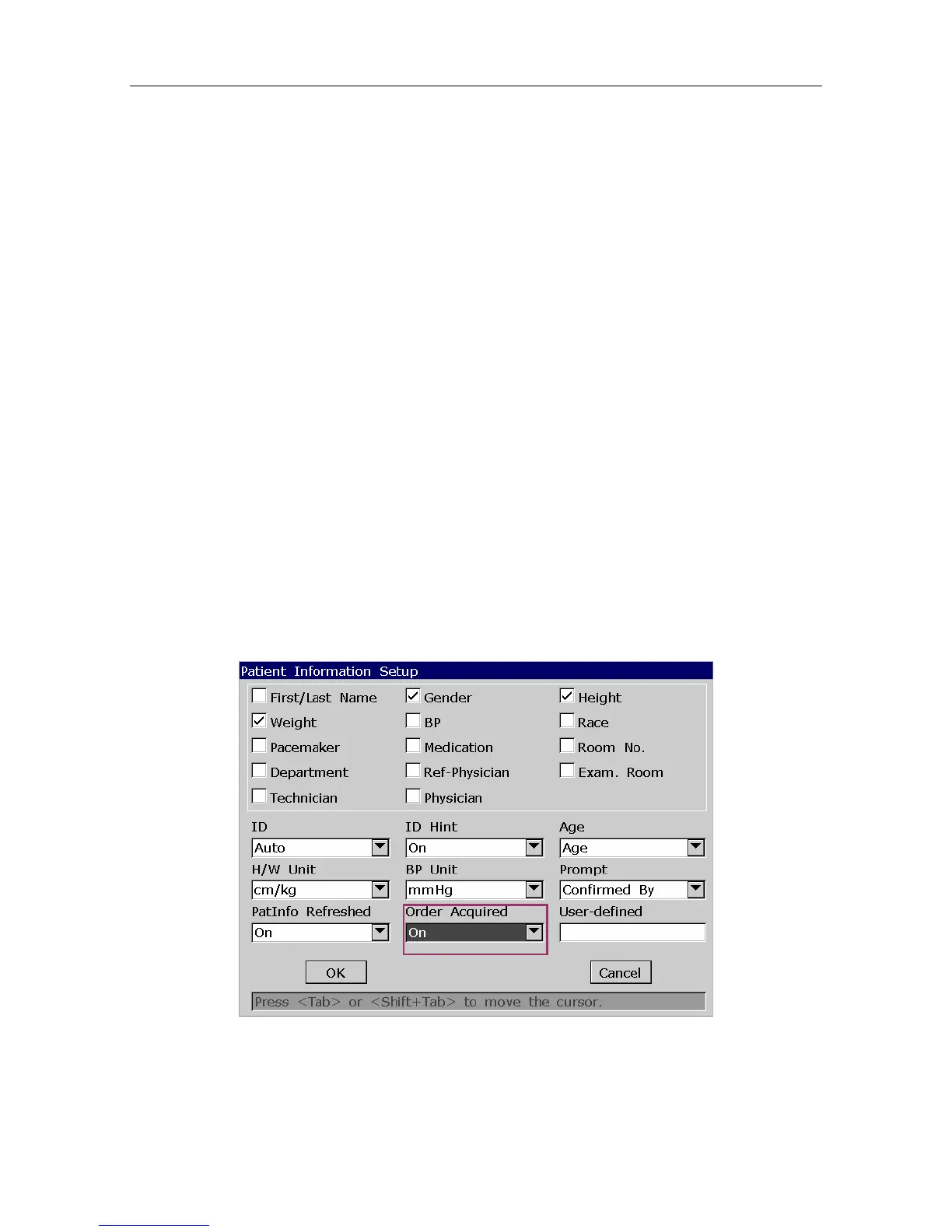

1) Select Setup> Patient Info to open the Patient Information Setup window.
2) Select On from the Order Acquired list box, and then press Enter to confirm.
5. Select Patient on the main screen1 to open the Patient Information window.
