SE-1201 Electrocardiograph User Manual Entering Patient Information
- 46 -

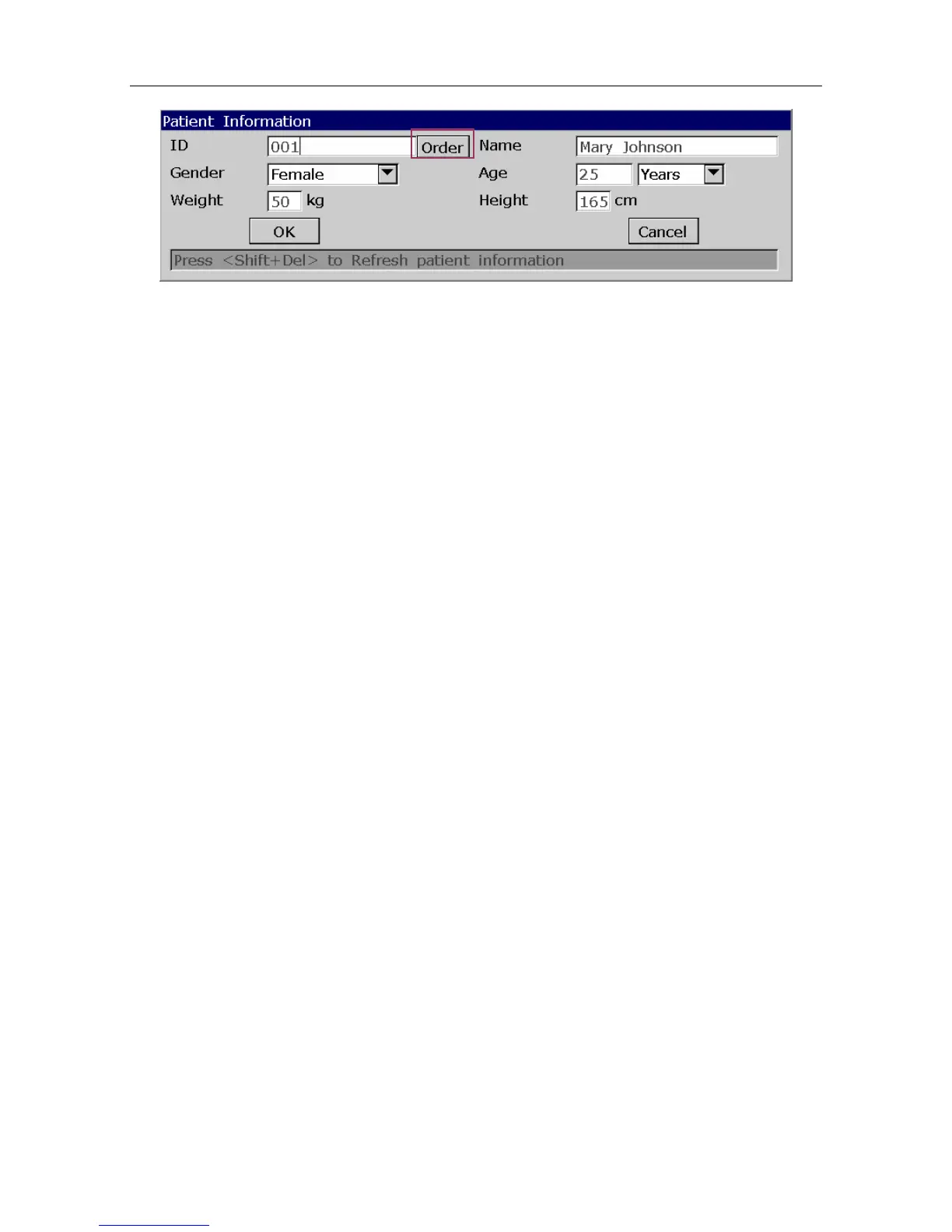

6. Enter the patient ID manually in the ID textbox and press Order, then the matched order will
be loaded from Smart ECG Viewer software and the order information will be displayed in
the corresponding textboxes.
Or, you can acquire orders by using a bar code reader.
1. Select On from the Order Acquired list box in the Patient Information Setup window.
2. Connect the bar code reader to USB socket 2 on the right panel of the electrocardiograph.
3. Select Patient to open the Patient Information window, and then move the cursor to the
ID textbox.
4. Scan the patient’s bar code with the bar code reader, and then the related order will be
loaded from Smart ECG Viewer software and the order information will be displayed in
the corresponding textboxes.
