SE-601 Series Electrocardiograph User Manual
- 44 -
interface.
3. Press the START/STOP key to print an ECG report.
4. Press the START/STOP key to stop printing the report.
7.3 Rhythm Mode
Operation Method:
1. When the main interface1 is displayed, press the MODE key to select the RHYT mode.
Press F2 to switch the gain. Press F3 to select a paper speed. Press F4 to set the EMG filter
and the Lowpass filter.
2. To set Rhythm Style, Rhythm Lead1/2/3 or Lead Sequence (Optional)
When the main interface1 is displayed, press the function key F5 below to open
the main interface2. Press the function key F1 below Setup to display the System Setup
interface and the cursor is on Work Mode. Press Enter to open the Work Mode Setup
interface.
1) For SE-601B/C, press F1 or F2 to select RHYT. For SE-601A, press F3 or F4 to
select RHYT.
2) For SE-601B/C, press Tab or Shift + Tab to move the cursor to the Rhythm Style
item, and then press F1 or F2 to select a style.
For SE-601A, press F1, F2, Tab or Shift + Tab to move the cursor to the Rhythm
Style item, and then press F3 or F4 to select a style.
3) Press Enter to confirm.

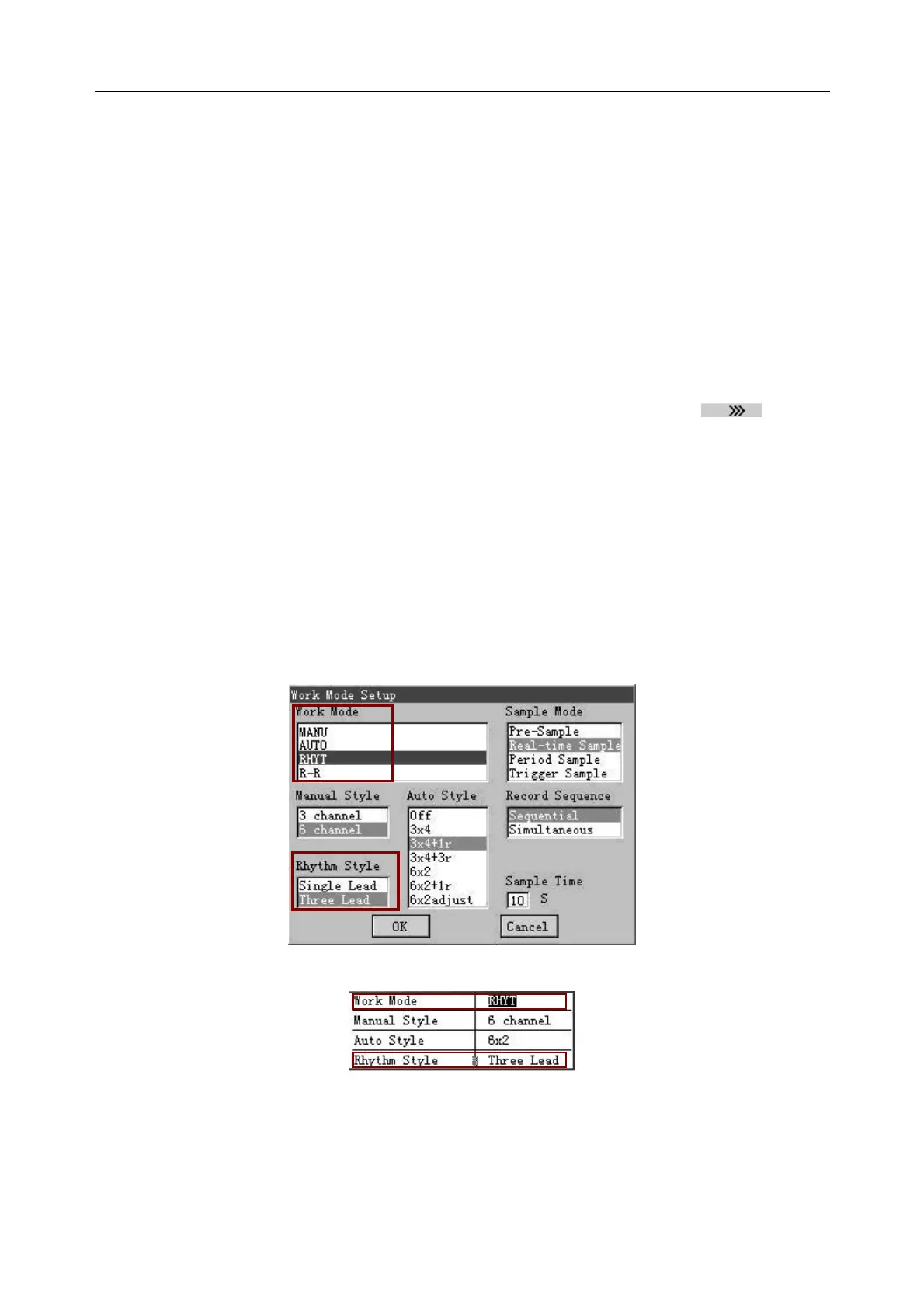

SE-601B / SE-601C Work Mode Setup Interface
SE-601A Work Mode Setup Interface
4) On the System Setup interface, press F1, F2, F3, F4, Tab or Shift + Tab to move the
cursor. When the cursor is on Lead, press Enter to open the Lead Setup interface.
