OPERATION
PREVENTATIVE MAINTENANCE

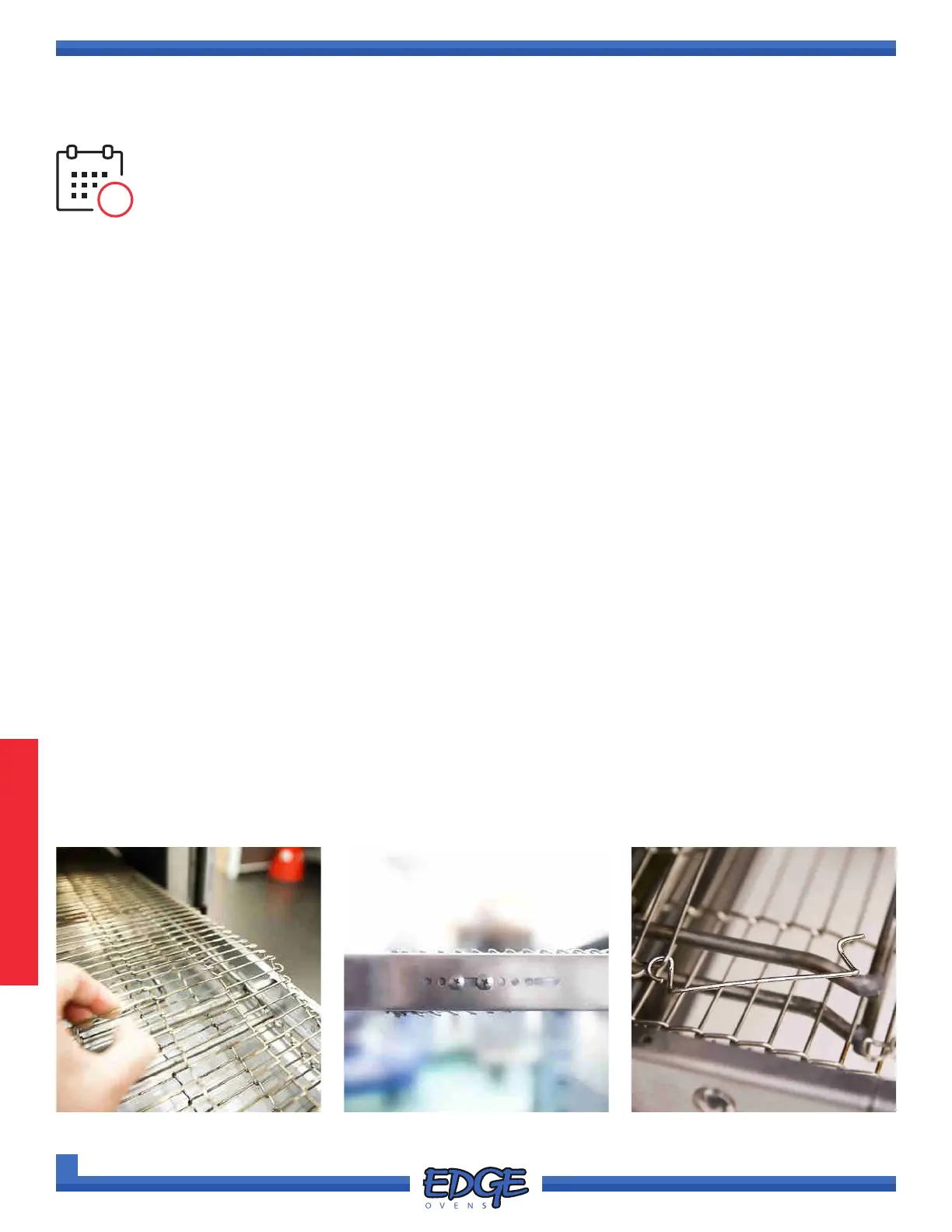

FIGURE 3-25
FREQUENCY:
Inspect and adjust the tension conveyor belt MONTHLY.
METHOD:
• Observe belt travel and ensure alignment is correct.
• Observe belt for bent linkage or damage, bent linkage may be corrected using 2 pairs of pliers. Damaged
sections (torn or bent sections that are not repairable) may be corrected with segment replacement.
Contact MF&B for details of this process.
• Conduct conveyor belt tension check, a row of linkage will need to be removed to correct the belt tension if
you are able to pull two (2) rows of linkage together using only your ngers. For models manufactured after
January 2022 please use adjustment brackets located of the left hand side (non-drive side) of the conveyor
frame. See CONVEYOR BELT TENSION ADJUSTMENT section for further instructions.
• If you have expended the adjustment amount of the adjustment brackets or your oven does not have this
feature, use a set of bull-nose pliers to remove the MASTER LINKS, allow the belt to separate. See also
CONVEYOR BELT LINK REMOVAL in this section of the manual for more detailed instructions.
• Where the belt has been separated, unwind a row of linkage from the belt and connect the belt back
together using the removed MASTER LINKS.
CAUTION:
• DO NOT twist the conveyor or drag it through the oven. Damage due to improper handling is not covered
by the warranty.
AREA OF OVEN:
• Conveyor belt and frame.
CONVEYOR BELT TENSION INSPECTION & ADJUSTMENT
