58
support@edgeovens.com Technical Support: +1 (724) 628 3050
INSTALLATION
FIGURE 2-146 FIGURE 2-147
FIGURE 2-150
FIRE SUPPRESSION

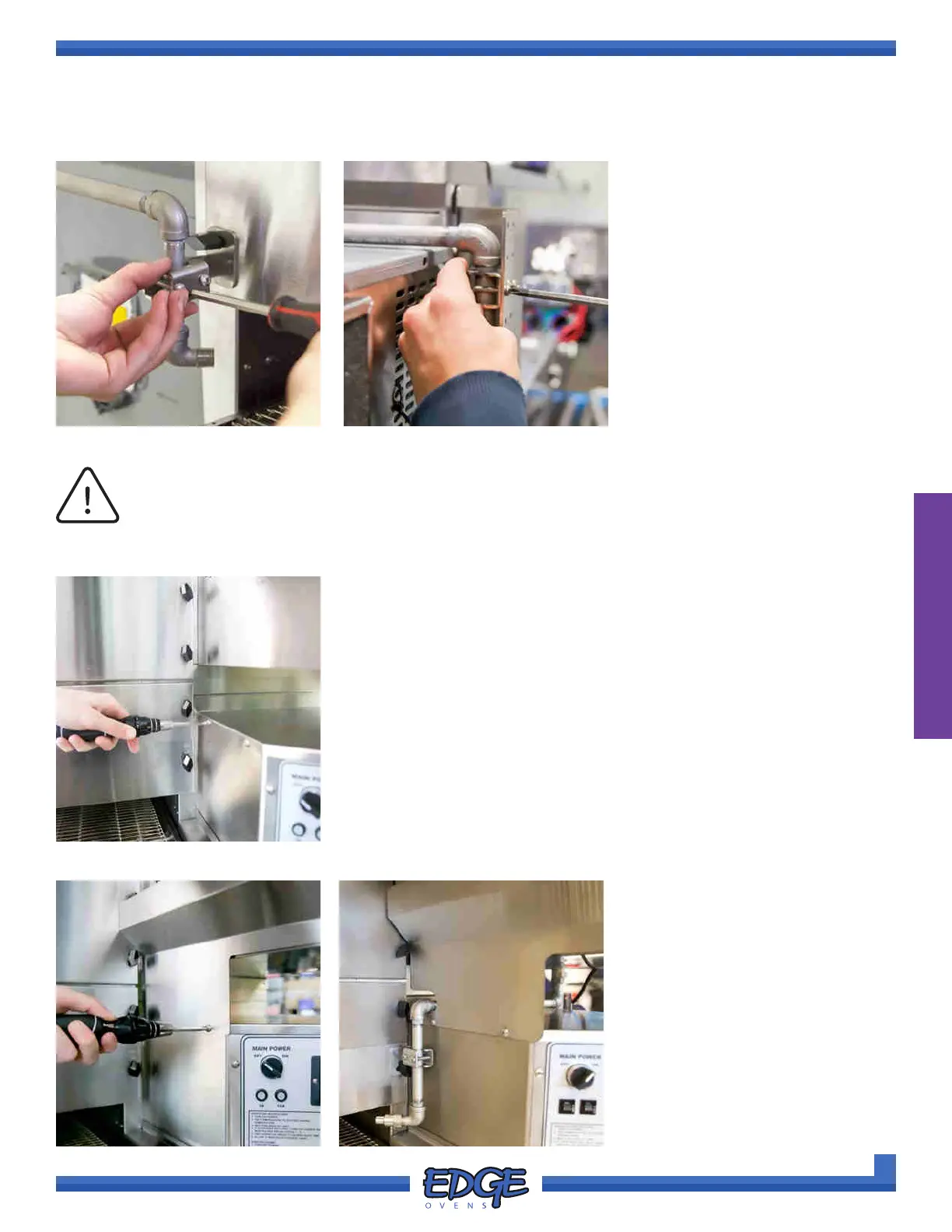

12. Tighten all the ‘A’ and ‘B’
pipework clamping brackets
using a Philips head
screwdriver. (Figure 2-146 &
Figure 2-147)
13. Remove the notched HEAT SHIELD from the re suppression pack.
14. Using a #2 Phillips screwdriver, remove the two (2) front securing
screws from the front of the control cabinet lid. RETAIN SCREWS
FOR LATER USE. (Figure 2-148)
FIGURE 2-148
FIGURE 2-149
MIDDLE & BOTTOM ovens are required to have HEAT SHIELDS installed to prevent thermal
damage to system components. The EDGE Fire Suppression kit includes one (1) heat shield
for a double stack oven and two (2) heat shields for a triple stack oven.
NOTICE
15. Align the screw holes in heat
shield with control cabinet lid
holes and install the previously
removed screws. (Figure 2-149
& Figure 2-150)
HEAT SHIELD INSTALL
PIPE & BRACKET INSTALL (CONTINUED)
