Edge EDGE-1830 - Fire Suppression

53
support@edgeovens.com
Technical Support: +1 (724) 628 3050
INSTALLATION
Local code may require the installation of re suppression for your oven. The EDGE re suppression piping
provides a clean, intentional application of the plumbing required to deliver chemical re suppression to your
EDGE oven stack. These systems are available in single, double and triple stack arrangement.
Final connections are to be made by your Fire Suppression contractor.
FIRE SUPPRESSION
• One (1) loosely assembled, control side, re suppression pipework kit (3/8” NPT, stainless steel)
• One (1) loosely assembled, non-control side, re suppression pipework kit (3/8” NPT, stainless steel)
• One (1) connecting pipe (model specic: 30”, 40”, 60” & 70”)
• One (1) or 2 (Two) EDGE Heat Shield for Fire Suppression Systems (P/N: 145209-FS)

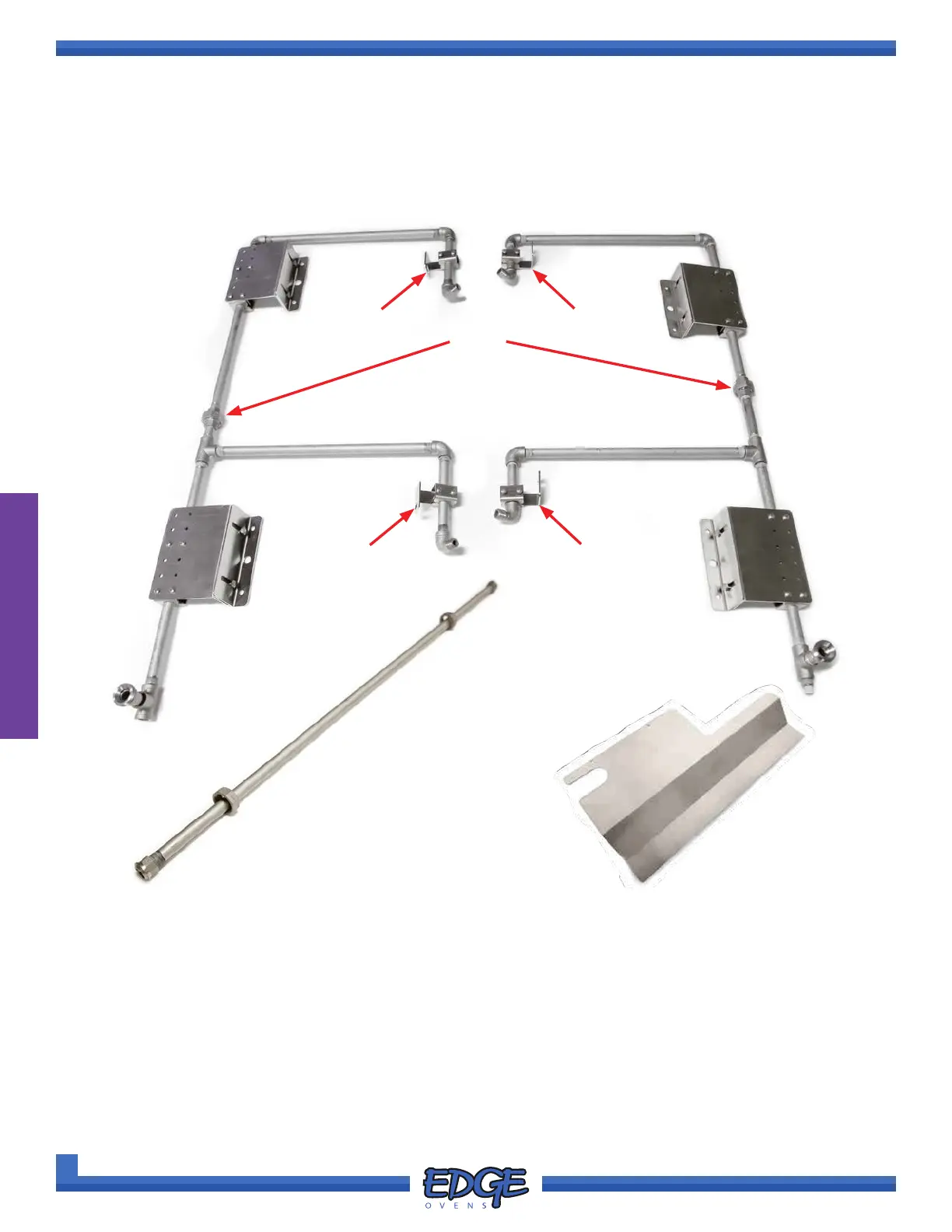

FIRE SUPPRESSION KIT CONTENTS
KIT CONTENTS
UNION
A
3
A
4
A
1
A
2
CONNECTION PIPE
B
3
B
4
B
2
B
1
• #2 Phillips Screwdriver
• 3/8” Wrench/Socket
• 7/16” Wrench/Socket
• Medium to Large Adjustable Wrench
TOOLS REQUIRED
• Fire Suppression Nozzles two (2) per Oven Deck
• Flexible Agent Distribution Hose (such as ANSUL 435982)
• 1/2” - 3/8” NPT Reducer
OTHER ITEMS YOU WILL NEED
HEAT SHIELD
