SPECIFICATIONS
MODEL INCHES MM
L D H L D H
1830 70 32 50 1778 813 1270
2440 70 32 59 1778 813 1499
3240 70 32 67 1778 813 1702
2460 90 32 59 2286 813 1499
3260(S) 90 32 67 2286 813 1702
3860 90 32 73 2286 813 1854
4460(S) 90 32 79 2286 813 2007
3270 96 32 67 2438 813 1702
3870 96 32 73 2438 813 1854
All EDGE ovens are shipped on their backs (window facing upwards) with the belt folded on each
end of the oven, to reduce crate length and protect the oven during shipping. Each deck is supplied
with a set of lifting plates tted, designed to accommodate the EDGE lifting and assembly system.
The belt end will need to be unfolded prior to removing the oven from it's skid.
NOTICE
L
H
D
FIGURE 1-2 - END VIEW
FIGURE 1-3 - SIDE VIEW

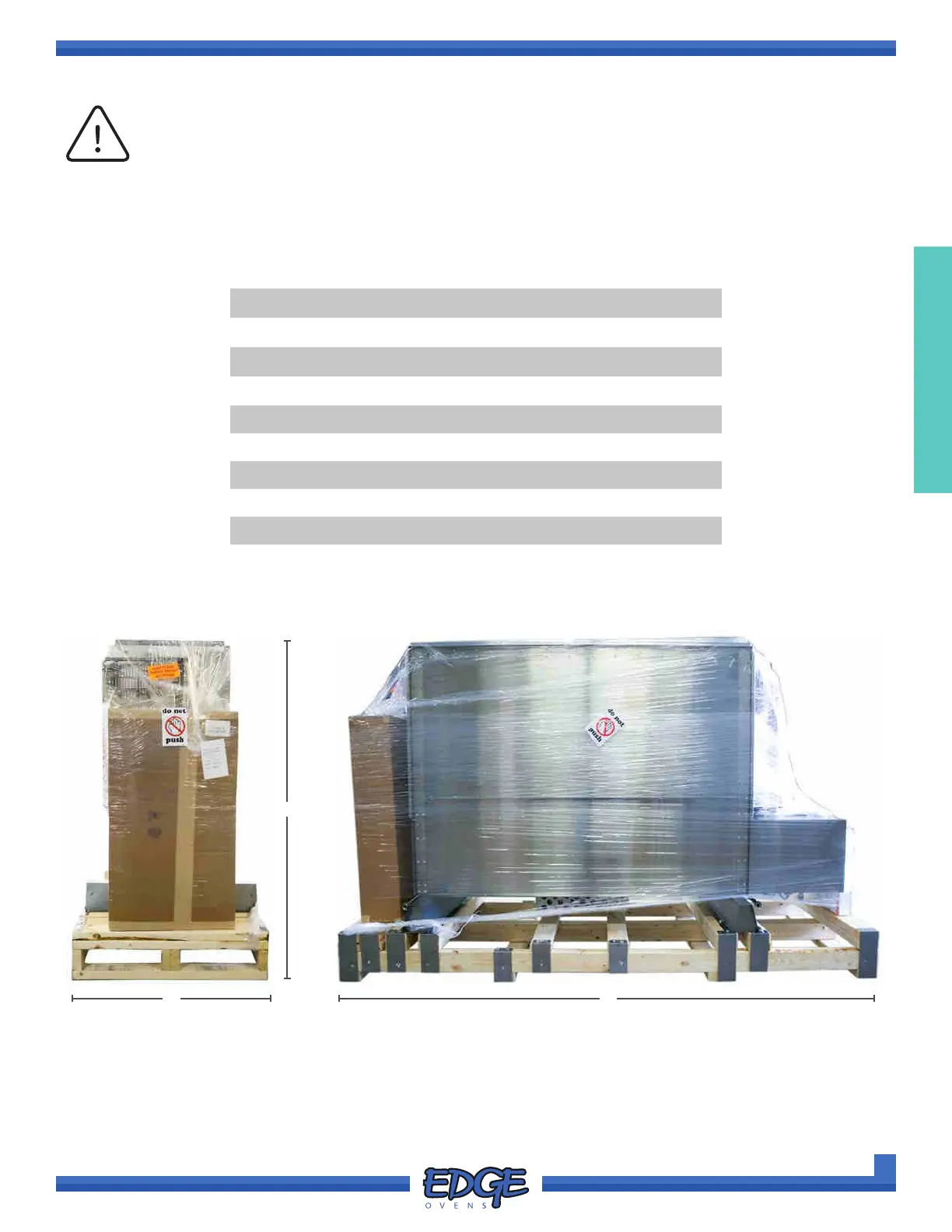

OVEN SHIPPING DIMENSIONS
