INSTALLATION
FIRE SUPPRESSION
FINAL CONNECTIONS

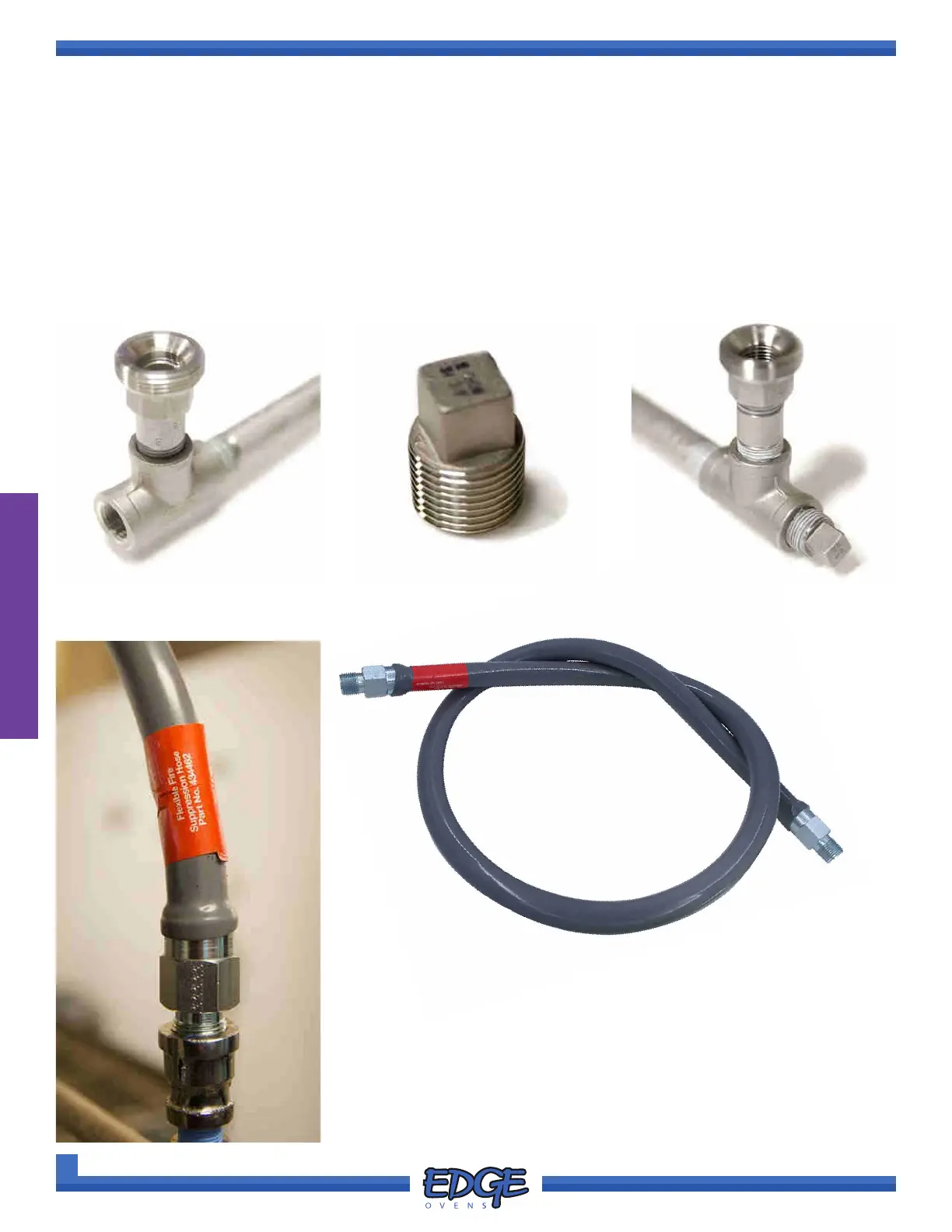

It is recommended that the re suppression be connected using a FLEXIBLE AGENT DISTRIBUTION HOSE
(Figure 2-155), long enough to provide movement of the ovens during maintenance.
Connection can be accommodated on either side of the pipework (Figure 2-151 & Figure 2-153). A single (1) 3/8”
threaded plug (Figure 2-152) is provided installed on one end of the connection TEE on the lowest oven. This
TEE and plug can be moved to accommodate your connection plan requirements.
All nal connections should be made by a certied re suppression contractor or plumber.
FIGURE 2-152 FIGURE 2-153
FIGURE 2-154 FIGURE 2-155
FIGURE 2-151
ANSUL P/N: 435982
