SERVICE
GAS CONVERSION

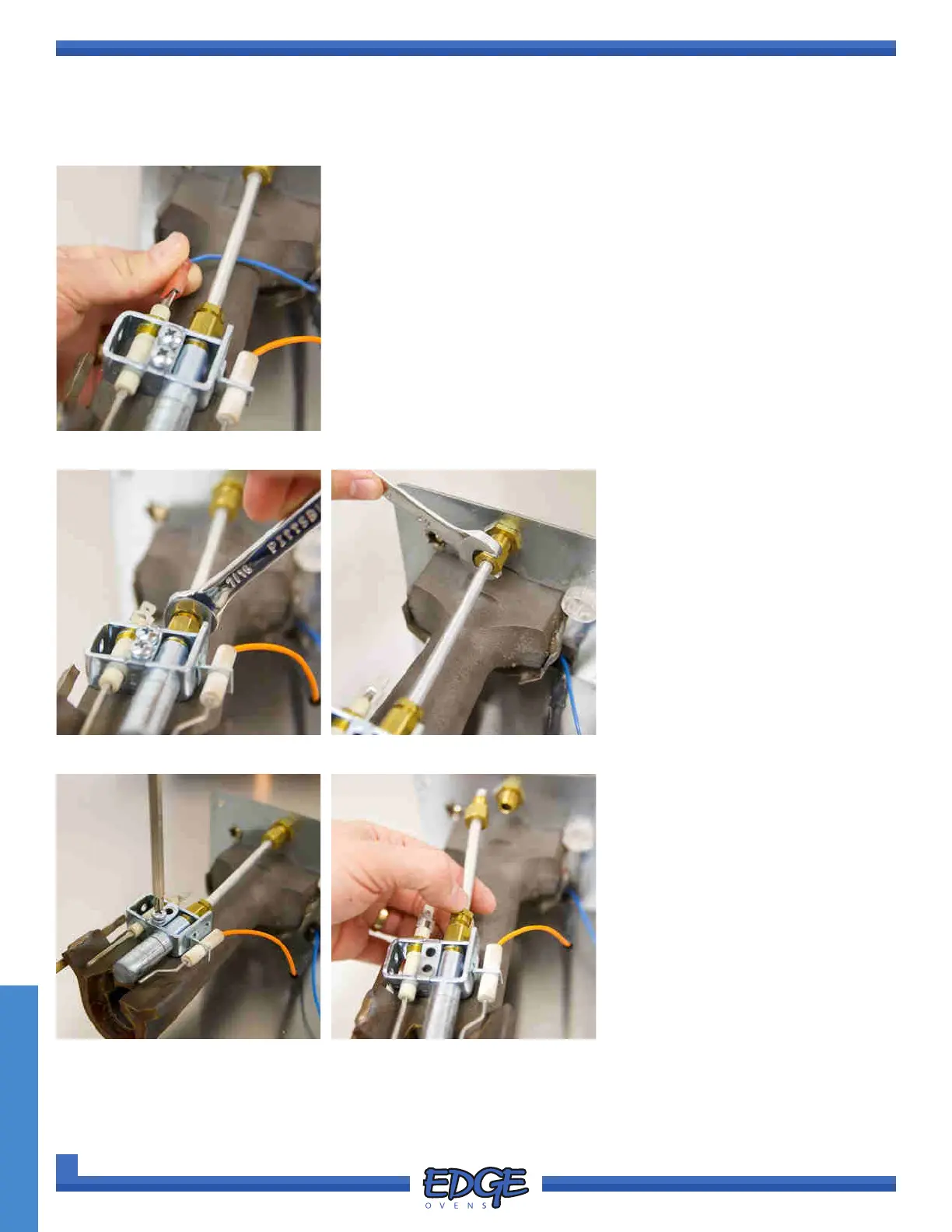

REPLACING THE PILOT ORIFICE
1. Disconnect the BLUE electrode wire from the pilot assembly attached
to the venturi. (Figure 4-16)
FIGURE 4-16
2. Using a 7/16” wrench, loosen
the compression nut securing
the pilot orice to the pilot tube.
(Figure 4-17)
3. Using a 1/2” wrench, loosen the
compression nut on the opposing
side of the pilot tube. (Figure
4-18)
FIGURE 4-19
FIGURE 4-17 FIGURE 4-18
FIGURE 4-20
4. Remove the two (2) screws from
the pilot assembly. (Figure 4-19)
5. With the pilot assembly loose,
remove the pilot tube from the
pilot assembly. (Figure 4-20)
