SERVICE
GAS CONVERSION
REPLACING THE GAS VALVE

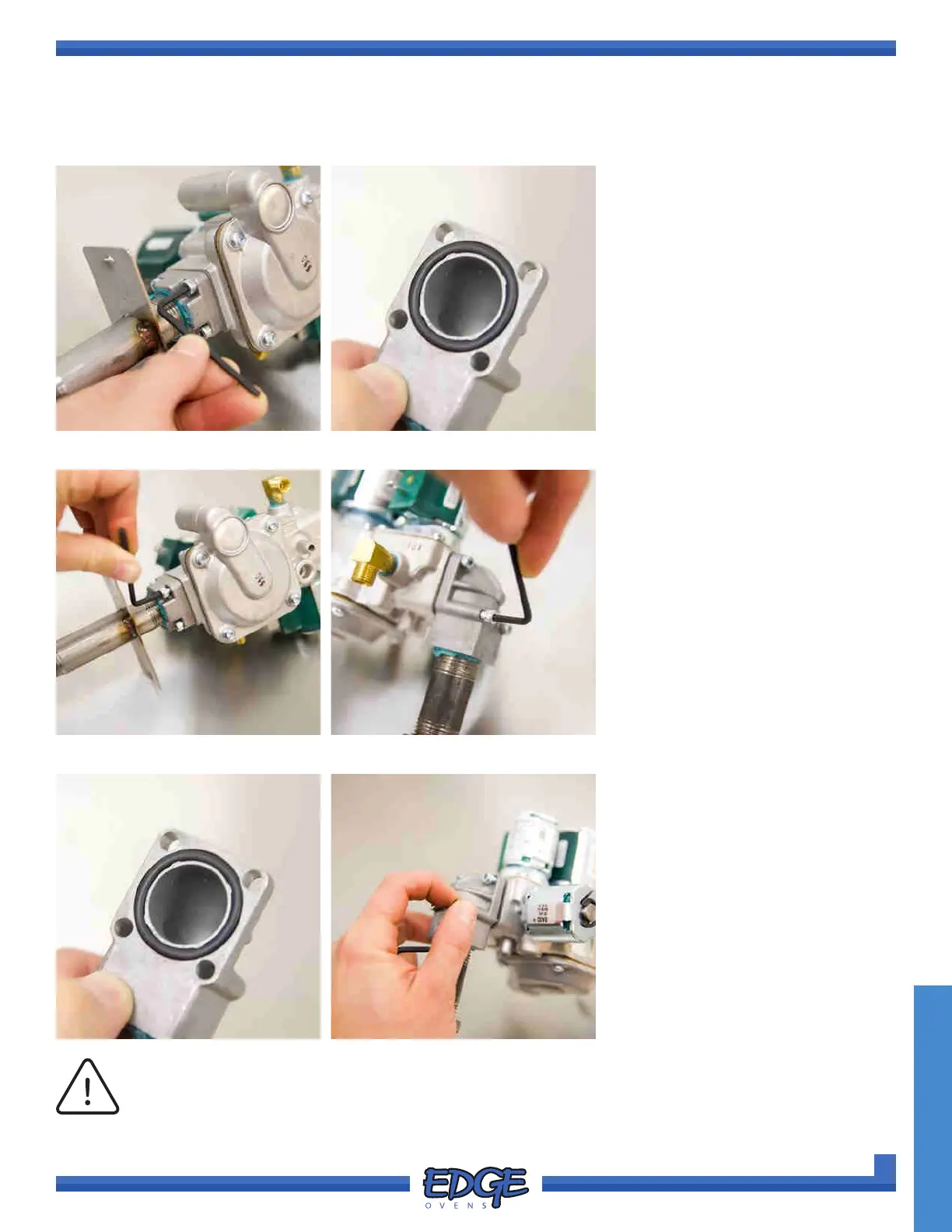

1. Using a 2.5mm hex wrench
(Allen key) remove the four (4)
screws from the straight ange.
(Figure 4-33)
2. Once removed, ensure that
the O-ring is seated within the
ange. (Figure 4-34)
FIGURE 4-33
3. Install the straight ange on
the new valve using the same
orientation. (Figure 4-35)
4. Remove the four (4) 2.5mm hex
screws from the angled ange
and carefully remove. (Figure
4-36)
FIGURE 4-36
5. Once removed, ensure that
the O-ring is seated within the
ange. (Figure 4-37)
6. Install the angled ange on
the new valve using the same
orientation. (Figure 4-38)
FIGURE 4-34
FIGURE 4-35
FIGURE 4-38FIGURE 4-37
A gas leak check must be performed after reassembly and installation of the gas valve and
train.
NOTICE
