INSTALLATION

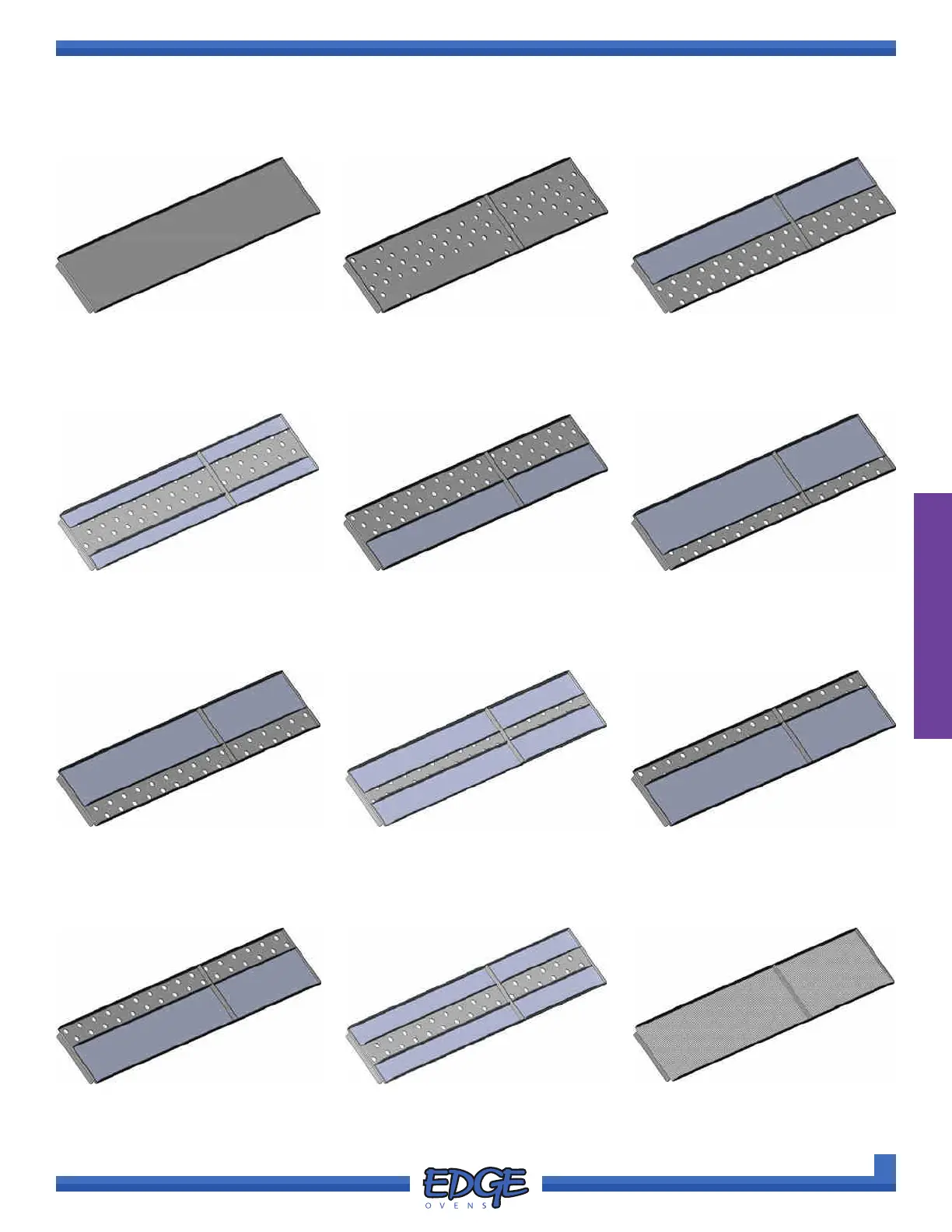

COLUMNATING PANEL OPTIONS (CONTINUED)
OVEN ASSEMBLY
#30 FULL BLOCK #40 FINISHING PANEL #50 HALF LEFT OPEN
Delivers radiant heat across
the product, impingement air is
complete blocked.
A special columnating panel that is
used exclusively on the exit nger.
Provides 50% impingement air
along the downwards facing LEFT
half of the panel.
#60 HALF RIGHT OPEN #70 QUARTER LEFT OPEN
#75 THIRD LEFT OPEN
Provides 50% impingement air
along the downwards facing
RIGHT half of the panel.
Provides 25% impingement air
along the downwards facing LEFT
half of the panel.
Provides 33% impingement air
along the downwards facing LEFT
half of the panel.
#80 QUARTER RIGHT OPEN
#85 THIRD RIGHT OPEN
Provides 25% impingement air
along the downwards facing
RIGHT half of the panel.
Provides 33% impingement air
along the downwards facing
RIGHT half of the panel.
#56 HALF CENTER OPEN
Provides 50% impingement air in
the CENTRE of the panel
#78 QUARTER CENTER OPEN
Provides 25% impingement air in
the CENTRE of the panel
#87 THIRD CENTER OPEN
Provides 33% impingement air in
the CENTRE of the panel
#00 SOFT FULL OPEN
A special panel that provides a
softer style of impingement. Panel
has no columnating holes.
