1-24
4205 SIDE SCAN SYSTEM 0021769_REV_D
1.2.3 Tow Cables
The tow cables are used to both connect and tow the Towfish. They are available in the customer’s choice
of Kevlar-reinforced, shown in F
IGURE 1-7 or armored styles, and both types can be terminated at both
ends or just at the Towfish end depending on customer requirements.
Both cable types include a single conductor and a shield. They also include an MCIL6F female wet-
pluggable connector on the towfish end and either an MCIL4M male wet-pluggable connector on the
topside processor end or an open termination at this end for direct connection to the slip rings of a winch.
A cable grip is included for attaching the tow cable to the towing arm of the towfish.

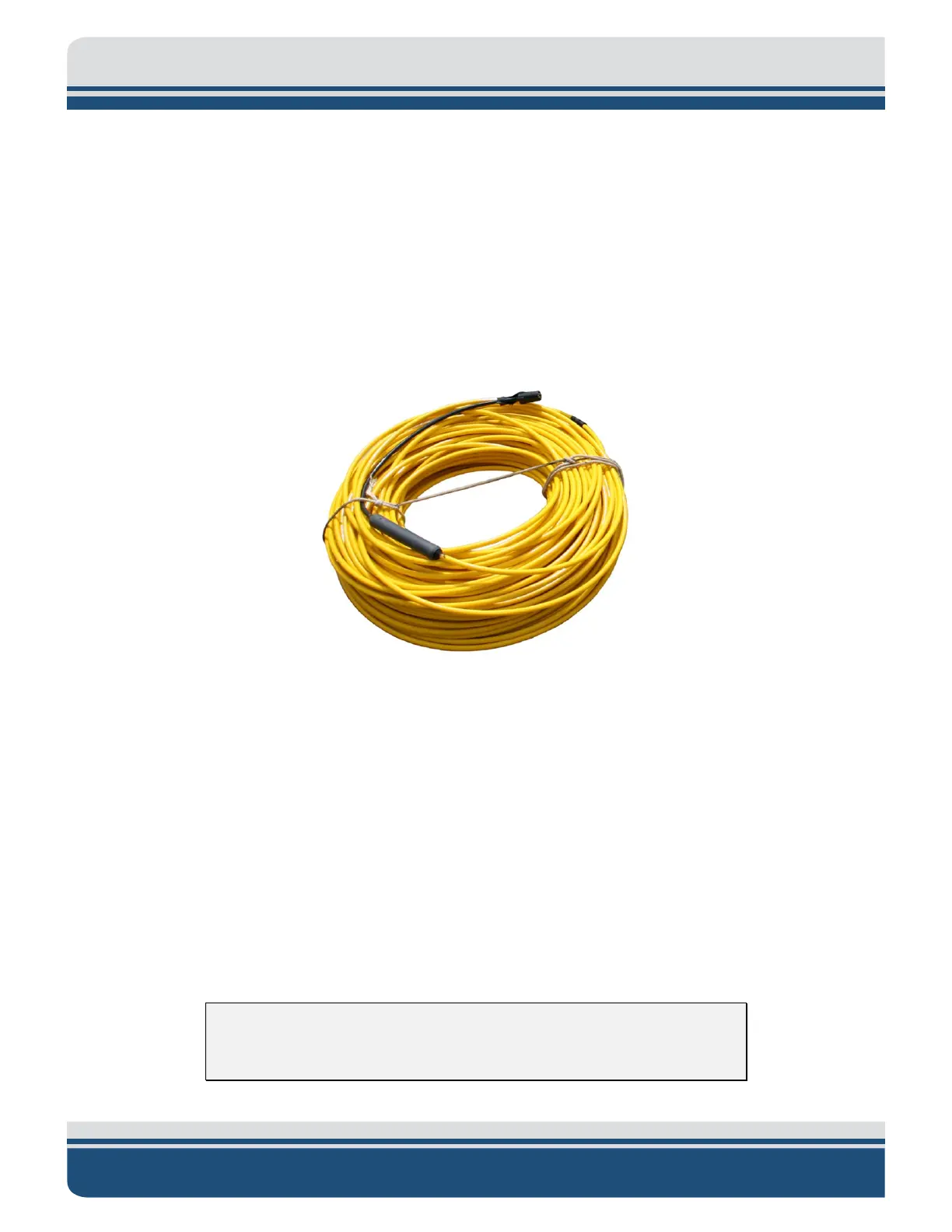

Figure 1-7: Kevlar Tow Cable
1.3 Optional Equipment
The following optional equipment can be installed and used with the 4205 High Definition Dual-frequency
Side Scan Sonar System:
• SGB Compass
• Depressor Wing
• Magnetometer Interface
• Acoustic tracking system
• Pressure sensor
• Responder
NOTE: The option connector provides 28 VDC ± 4% at 2.6 amps
maximum.
