Edgetech 4205 User Manual

2-37
TOW CABLE CONNECTIONS:
Pin 1 : 0VDC
PIN 2: 400VDC+Telemetry Data
MAGNETOMETER CONNECTIONS:
Pin 1 : 28VDC +/-4%
PIN 2: Return/RS-232 GND
PIN 3: Side-Scan TX to Mag (RS232)
PIN 4: Side-Scan RX from Mag TX(RS-232)
PIN 5: Return/RS-232 GND
PIN 6: TRIG-MAG
PIN 7: 27VDC
PIN 8: GND

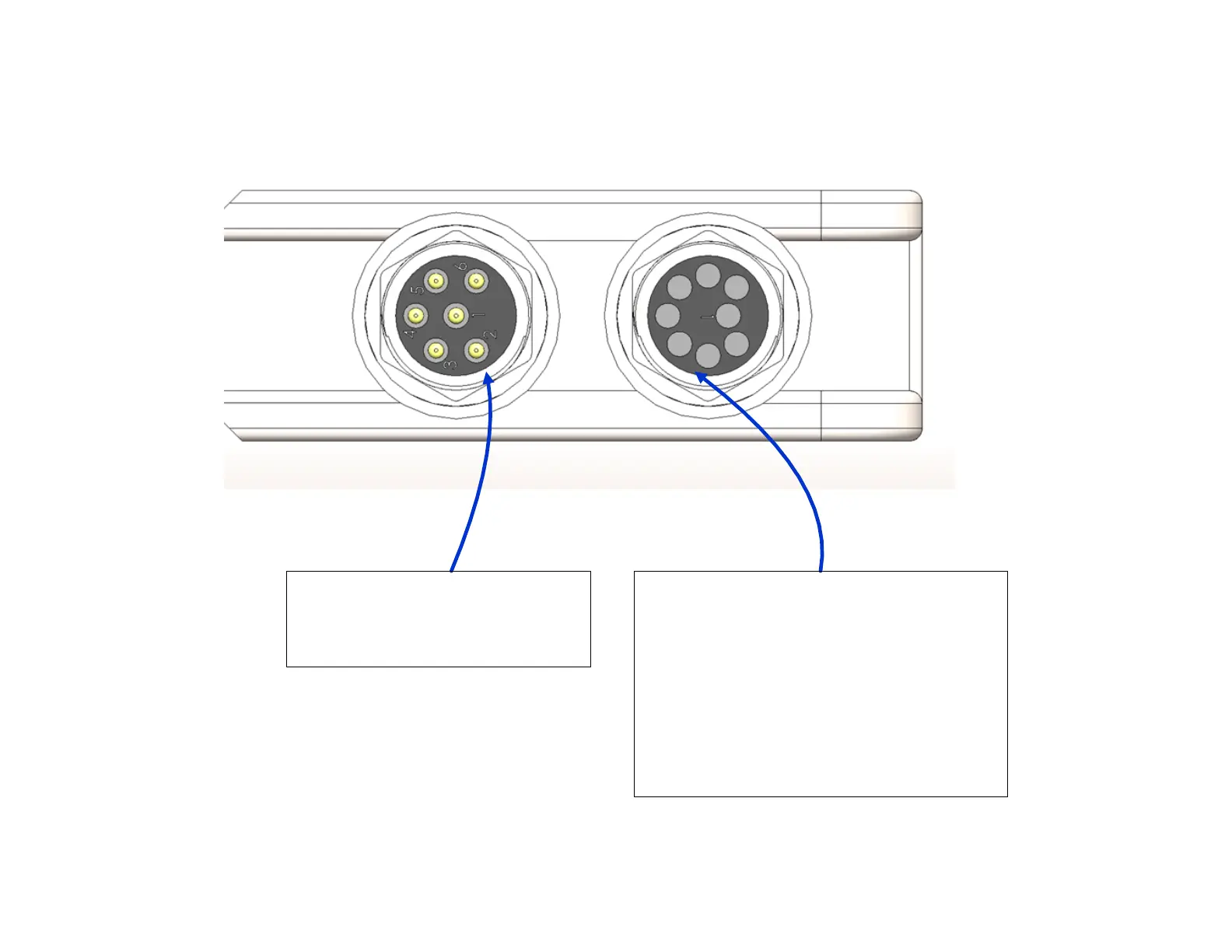

Figure 2-6: 4205 MPMT and Tri-Frequency Tow Cable Connections with Pinouts
