Edgetech 4205 - Figure 3-7: 4205 Rack Mount Topside Processor Rear Panel

3-59

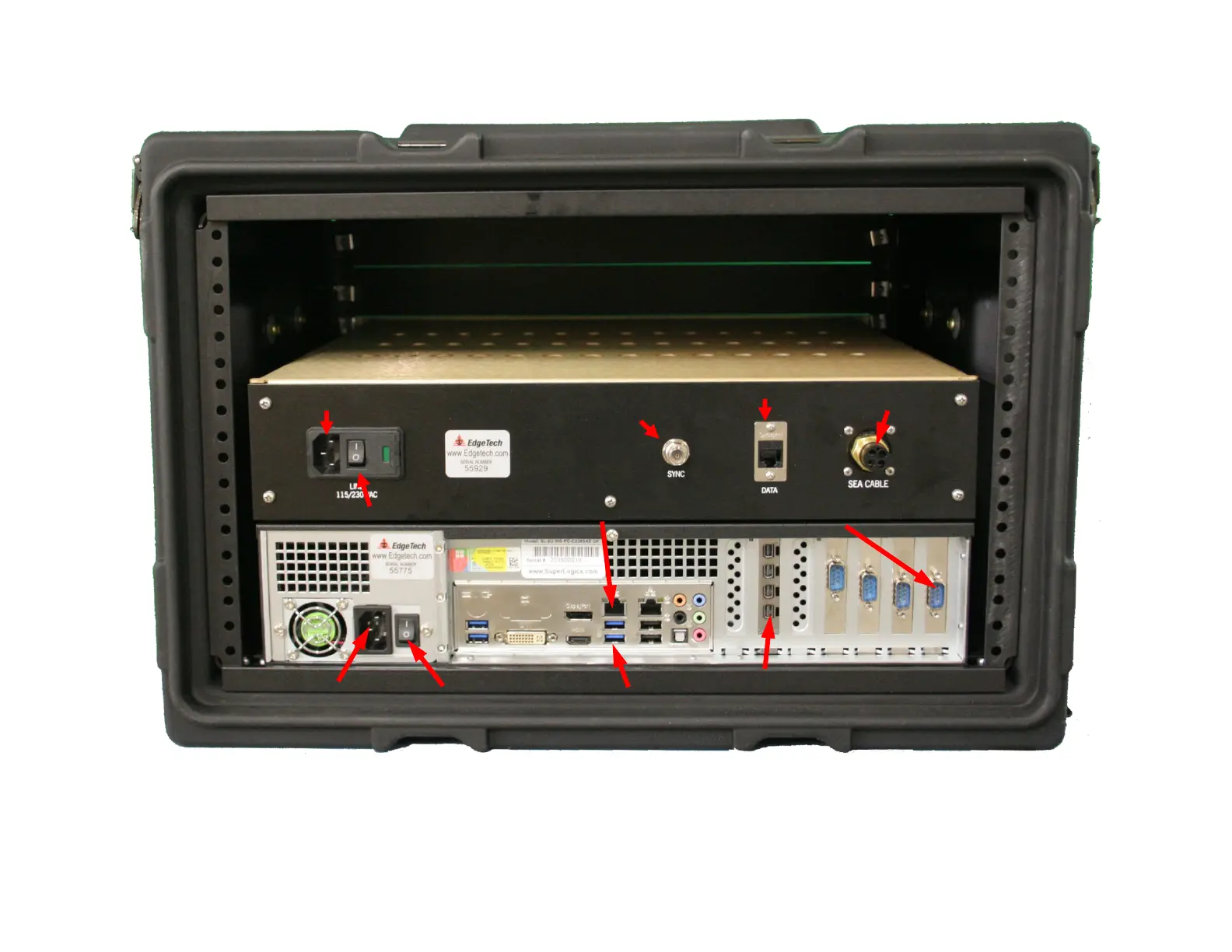

Figure 3-7: 4205 Rack Mount Topside Processor Rear Panel
SEA CABLE connector
ETHERNET connector
Video Card
POWER switch
VAC INPUT connector
COM 1-NAV connector
USB connectors
ETHERNET connector
SYNC connector
VAC INPUT connector
POWER switch
