3-64

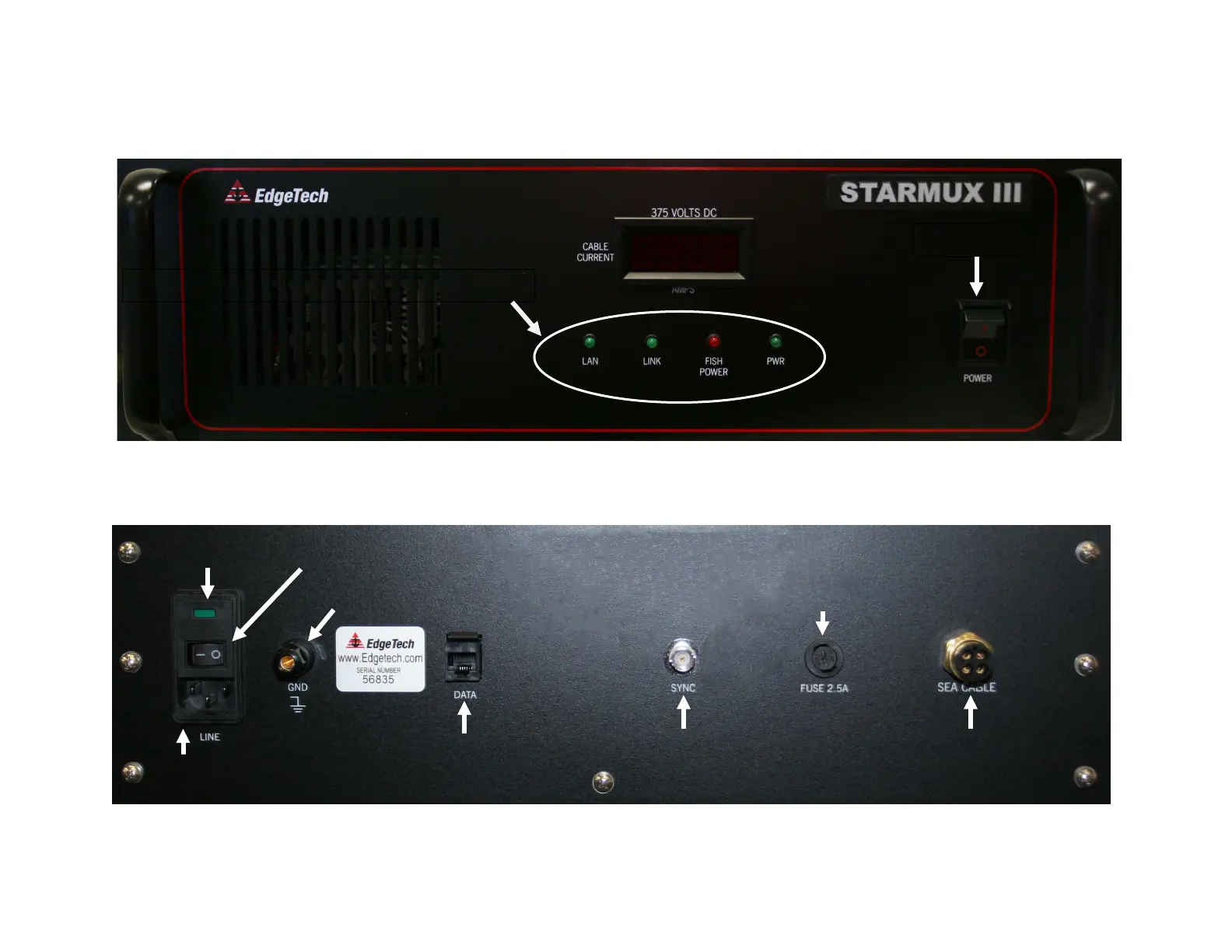

Figure 3-11 Starmux III Front Panel
Figure 3-12: Starmux III Back Panel
LAN, Link, Fish Power and Starmux Power Indicators
Power Switch
Sea Cable Connector
Data Connector
Sync Connector
2.5A Fuse
AC Fuse
Line Power Switch
Grounding Lug
Line VAC
Connector
