4205 SIDE SCAN SYSTEM 0021769_REV_D

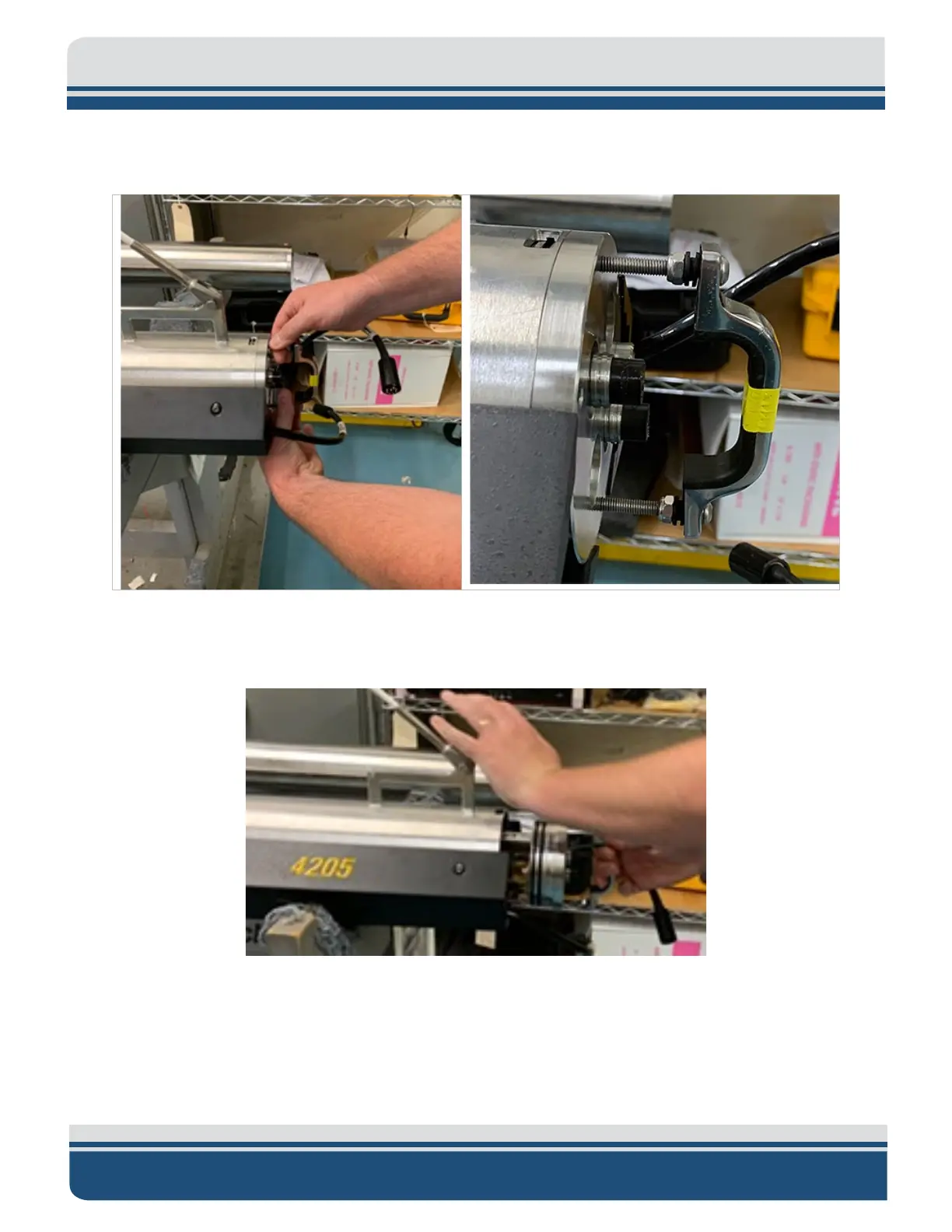

9. Attach the Edgetech supplied grip to the aft endcap by threading in the bolts.
Figure 7-7: Aft Endcap Grip Handle Installation
10. Carefully pull the attached supplied grip to remove the electronics chassis from the housing and
place it on a clean, dry, flat surface.
Figure 7-8: Electronics Chassis Removal From Towfish Housing
