Edgetech 4205 - Figure 7-5: Nose Cone Removal; Figure 7-6: Forward Endcap Cable Disconnections

7-91

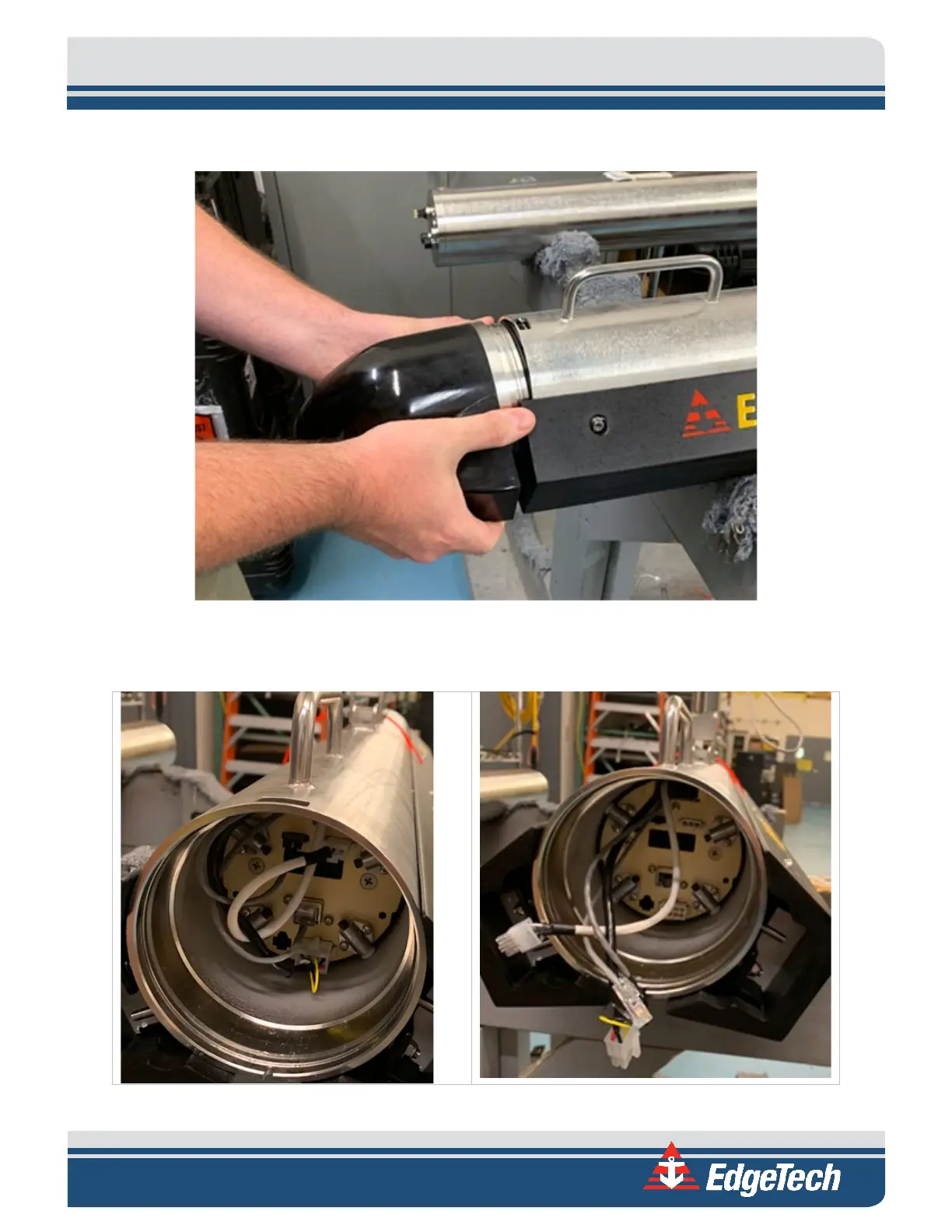

7. Carefully remove the nose cone by pulling it from the vehicle.
Figure 7-5: Nose Cone Removal
8. The forward endcap is now exposed. Carefully disconnect all cables from their connectors.
Figure 7-6: Forward Endcap Cable Disconnections
