3-56

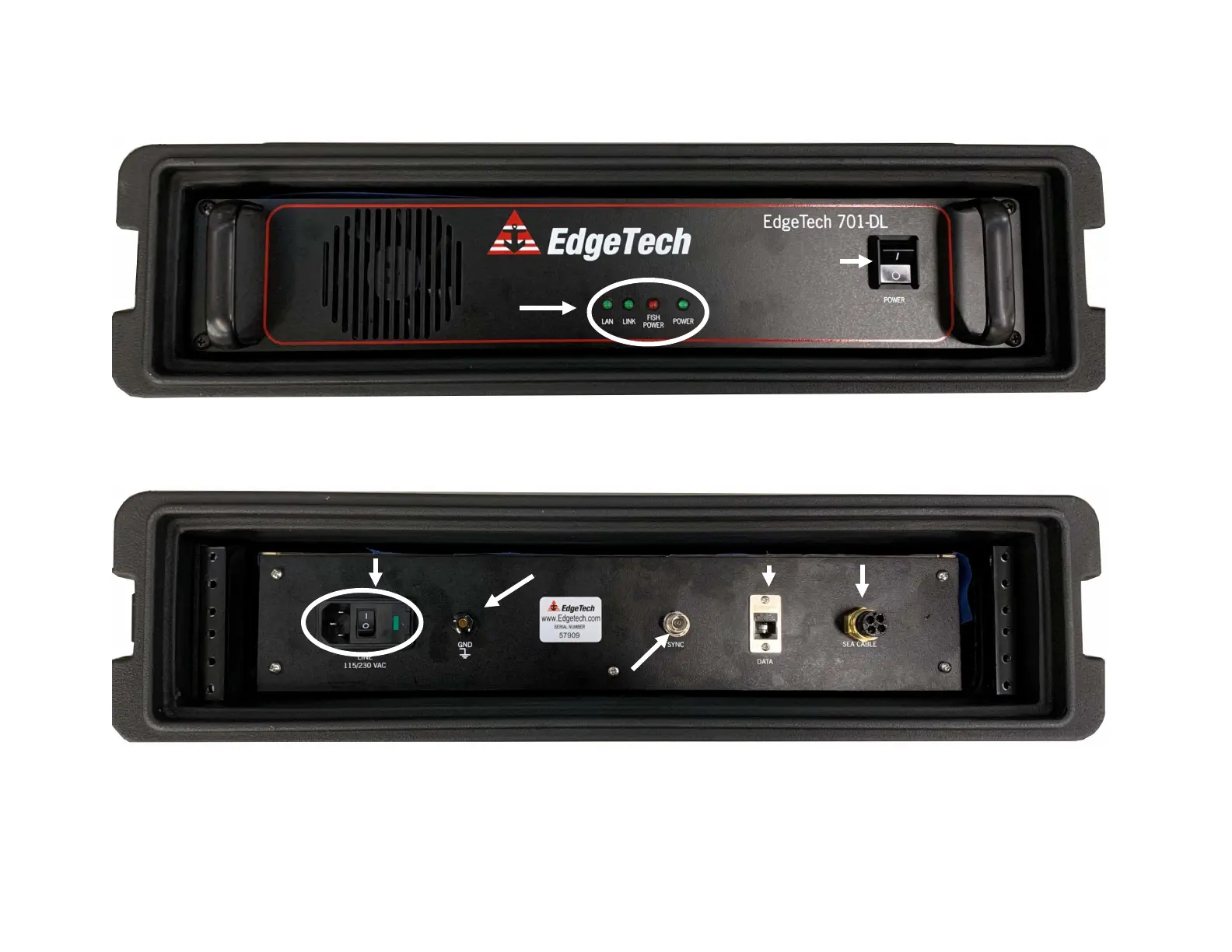

Figure 3-5: 701-DL Front and Back Panels
SYNC
connector
LINE VAC connector,
Switch, and AC Fuse
DATA
connector
LAN, LINK, FISH POWER
and POWER indicators
POWER Switch
SEA CABLE
connector
GROUNDING
LUG
