3-50

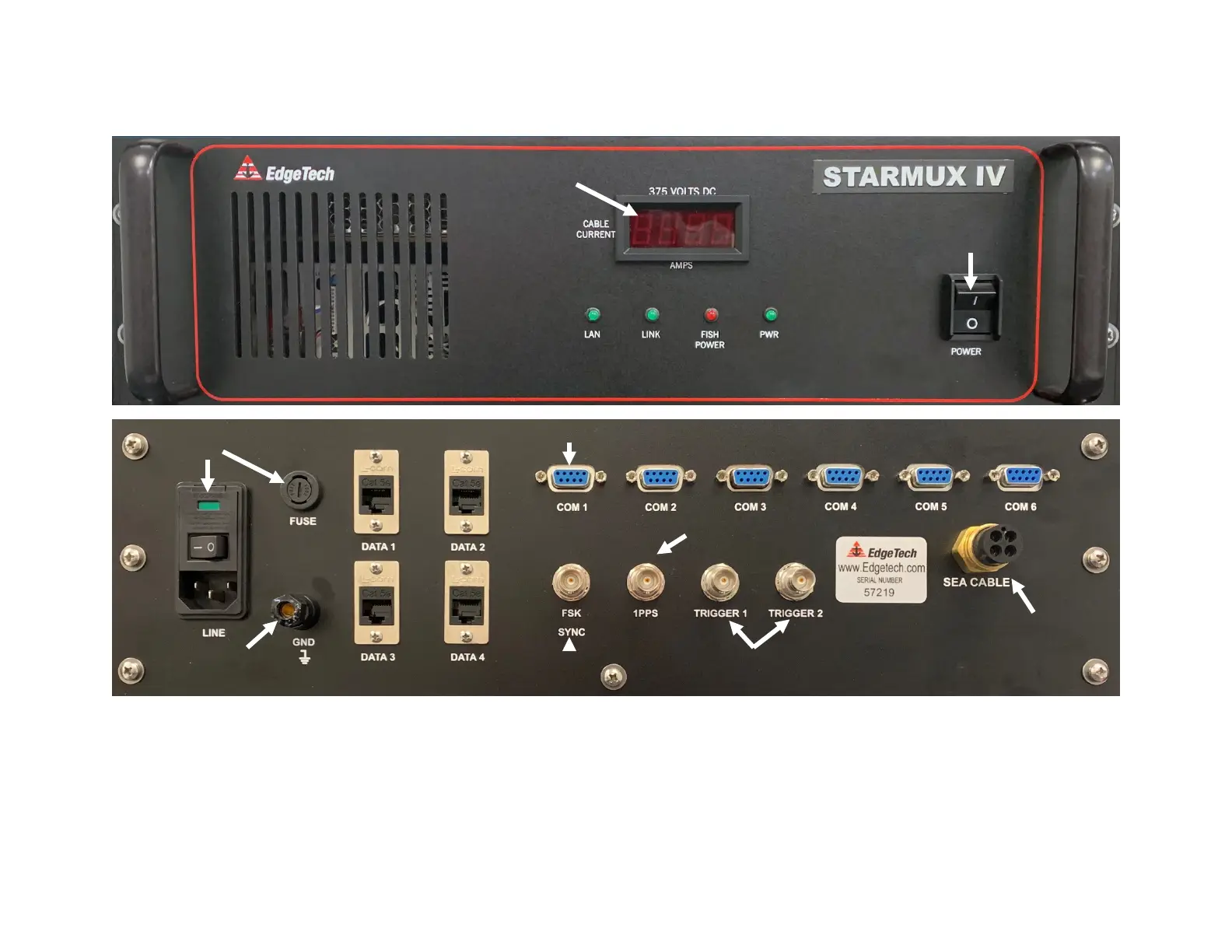

Figure 3-2: Starmux IV Front and Back Panels
Digital Display
Indicator Lights
Starmux Power Switch
Telemetry/Subsea Serial Ports
Sea Cable Connector
Optional Trigger Connectors
Network Ethernet Ports
Grounding
Lug
Power
Switch
FSK Sync
Connector
NAV Input for Network Broadcast
Fuses
1PPS Connection
