4205 SIDE SCAN SYSTEM 0021769_REV_D
5. Remove [2] screws and [2]finishing washers from both the forward side and aft side of the housing
using a Phillips screwdriver.

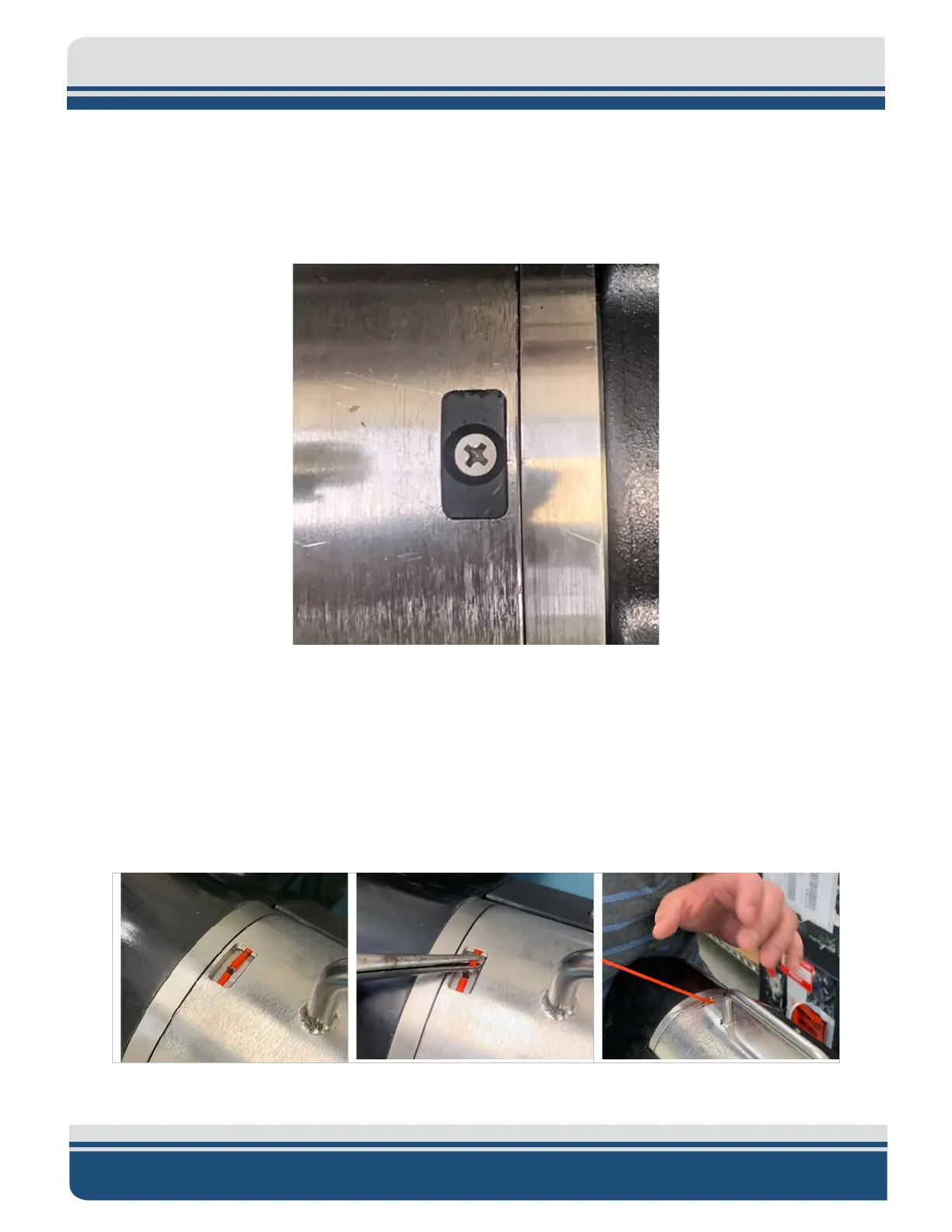

Figure 7-3: Side Seal Screw and Washer
6. Remove the nylon retaining lines from both forward and aft side of the housing where the
finishing screws and washers were removed. To remove, grip the nylon retaining line with needle
nose plyers and pull it completely out of the housing. It may be necessary to push on the endcap
for leverage to remove the line. Installing the supplied grip can facilitate this (see
STEP 9).
Figure 7-4: Nylon Retaining Line Removal
To Next Page
