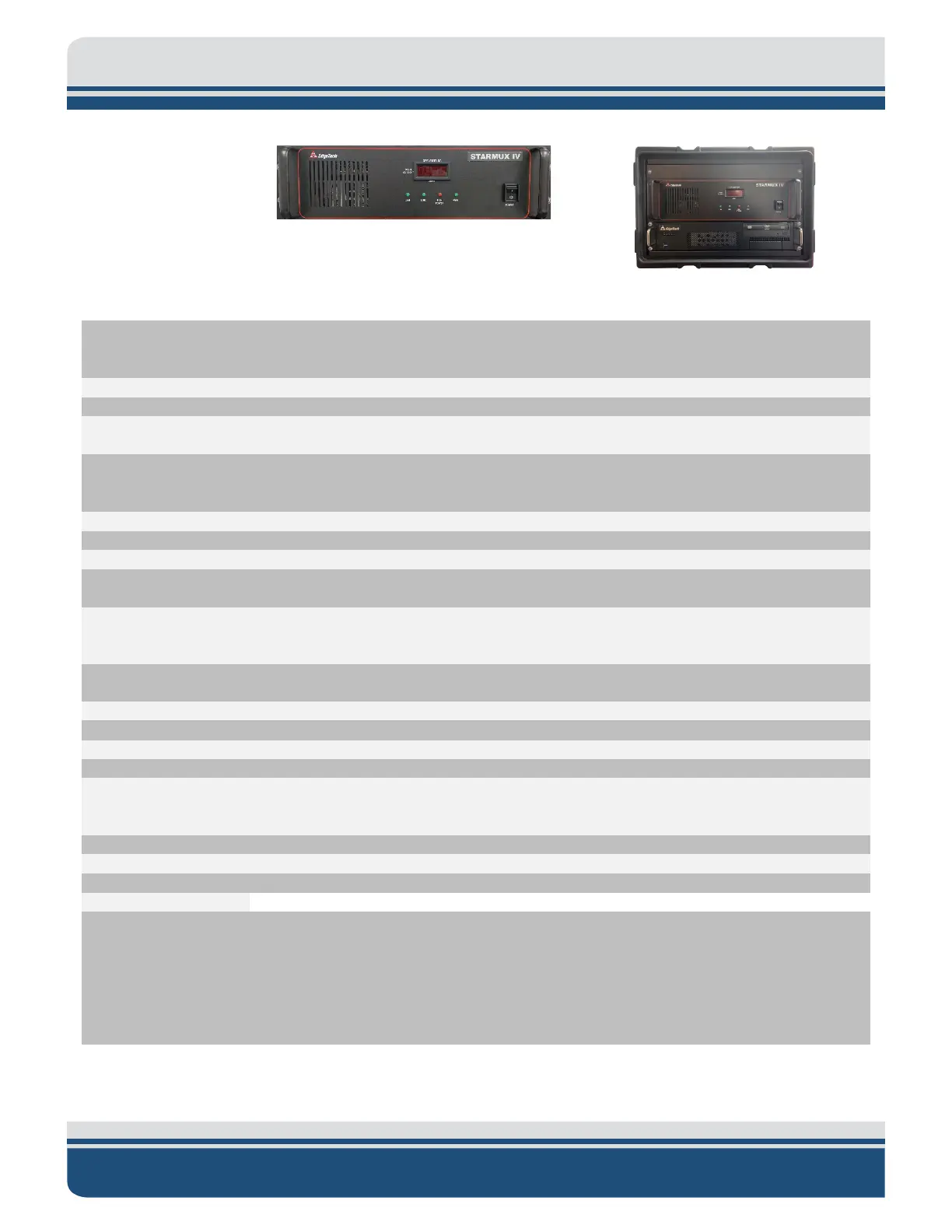

4205 SIDE SCAN SYSTEM 0021769_REV_D
STARMUX IV DIGITAL LINK
RACK MOUNT (STARMUX IV DL AND 2U
COMPUTER IN 6U CASE)
Size
13.2 cm (5.2 in.) high
48.2 cm (19 in.) wide
50.5.2 cm (20 in.) deep
76.2 cm (30 in.) high
76.2 cm (30 in.) wide
64.9 cm (23.37 in.) deep
Weight
10.4 kg (23 lb.)
70.31 kg (155 lb.)
Case construction
Aluminum 19-inch rack mount
PVC
Shipping Container
Type
Carton
Sealed high impact polyurethane case
Shipping Container Size
66 cm (26 in) high
66 cm (26) in wide
30.5 cm (12 in) deep
76.2 cm (30 in.) high
76.2 cm (30 in.) wide
76.2 cm (30 in.) deep
Shipping Weight
14.5 Kg (32 lb.)
70.3 kg (155 lb.)
Operating Temp.
0–45°C (32–113°F)
0–45°C (32–113°F)
Storage Temp.
-10–60°C (14–140°F)
-10–60°C (14–140°F)
Operating relative
humidity
5–90% (non-condensing)
0–90% (non-condensing)
Non-operating storage
relative humidity
5-90%
5-90%
Input voltage
100-264 VAC, 50/60 Hz, auto-switching
100-264 VAC, 50/60 Hz, auto-switching
Input power
~ 1200W
~ 1200 W
Power to Towfish
375 VDC
375 VDC
Processor
—
Intel Core, I7, 3.6 GHz Quad-Core
Memory
—
4 GB, 1333 MHz
Data storage
—
DVD/RW drive
1-TB hard drive (data)
500-GB hard drive (OS)
Display
—
21-inch LCD monitor
Keyboard
—
High impact industrial keyboard
Pointing device
—
High impact industrial trackball
External trigger
I/O ports
(4) Ethernet
(6) RS-232
(1)PPS Trigger
(1)FSK Trigger
(2)Trigger
(5) Ethernet
(8) RS-232
(6) USB 2
(2) USB 3
(1)PPS Trigger
(1)FSK Trigger
(2) Trigger
Table 2-3: Starmux IV Specifications
