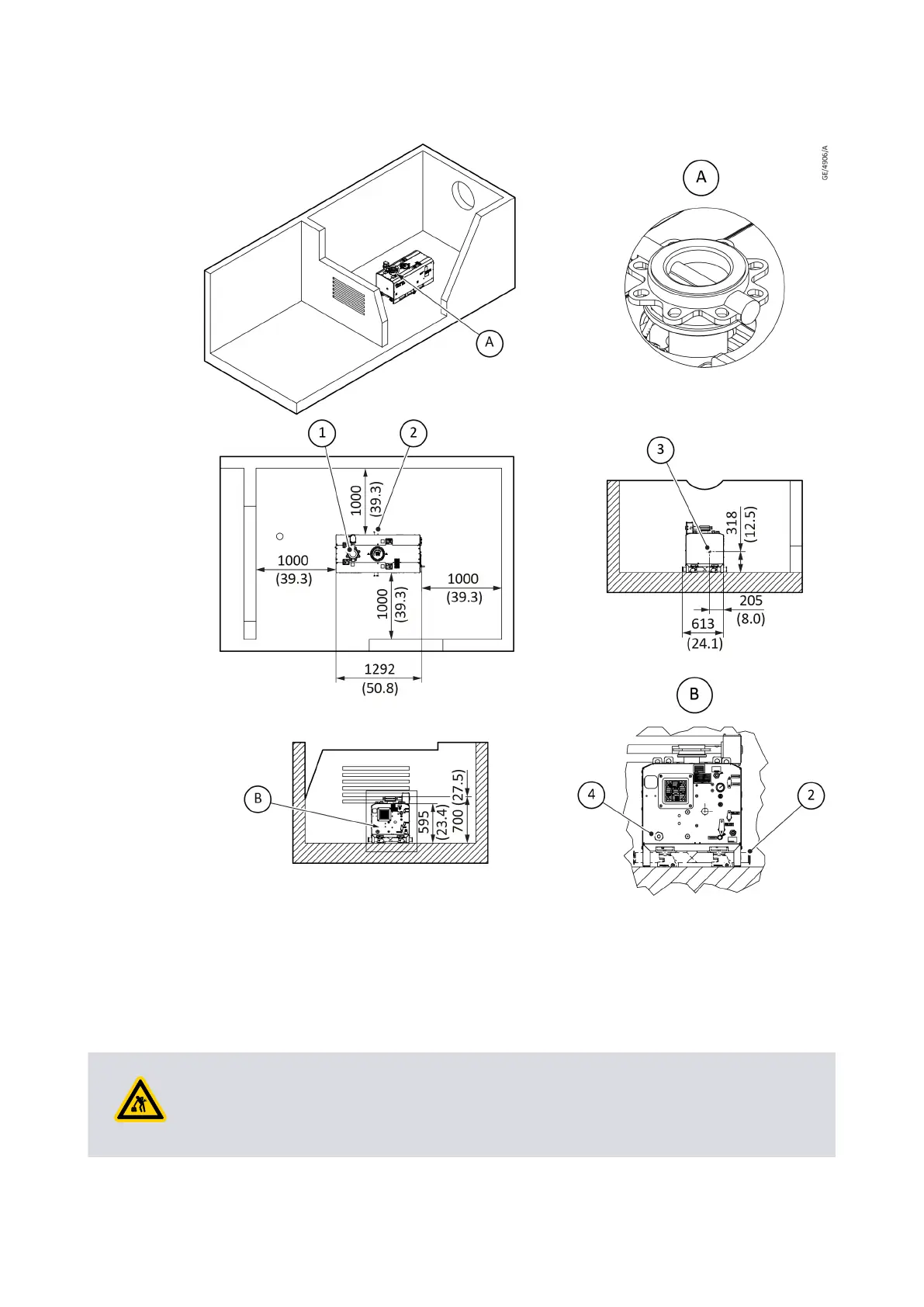

Figure 10 Installaon dra
wing - EXS450
A. Isolaon valve B. Ulity sideA. Isolaon valve B. Ulity side
1. Process inlet 2. Exhaust outlet
3. Motor cranking access 4. Mains power inlet
1. Process inlet 2. Exhaust outlet
3. Motor cranking access 4. Mains power inlet
5.2 Locate the dry pumping system
WARNING:
Suit
able liing equipmen
t must be used to move the dry pumping system. It is too
heavy to li by hand.
07/2021 - ©Edwards Limited
Page 30A41870880_A
A41870880_A - Inst
allaon
