5. Attach the take-up/supply assemblies (4) to the printer; make sure leveling foot is installed on each of them (Pro 16h only).

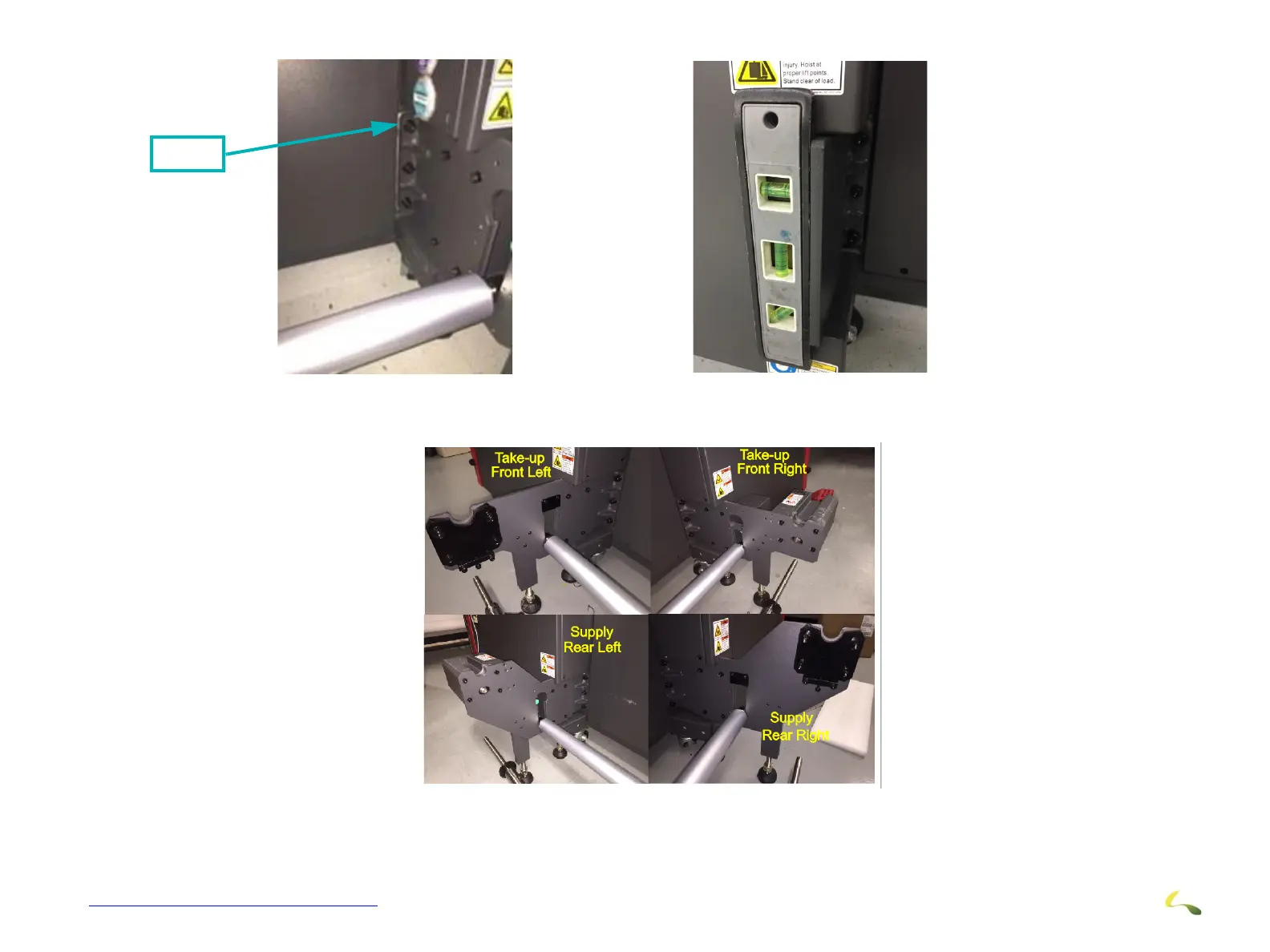

Figure 3-31: Attach Assemblies to Printer (Dancer Shown on Take-up Side Has Been Removed)
6. Level the take-up and supply assemblies using the leveling feet.
Screws
Figure 3-30: Level the Mounting Plates
