3.14.1 Media Table Base Assembly

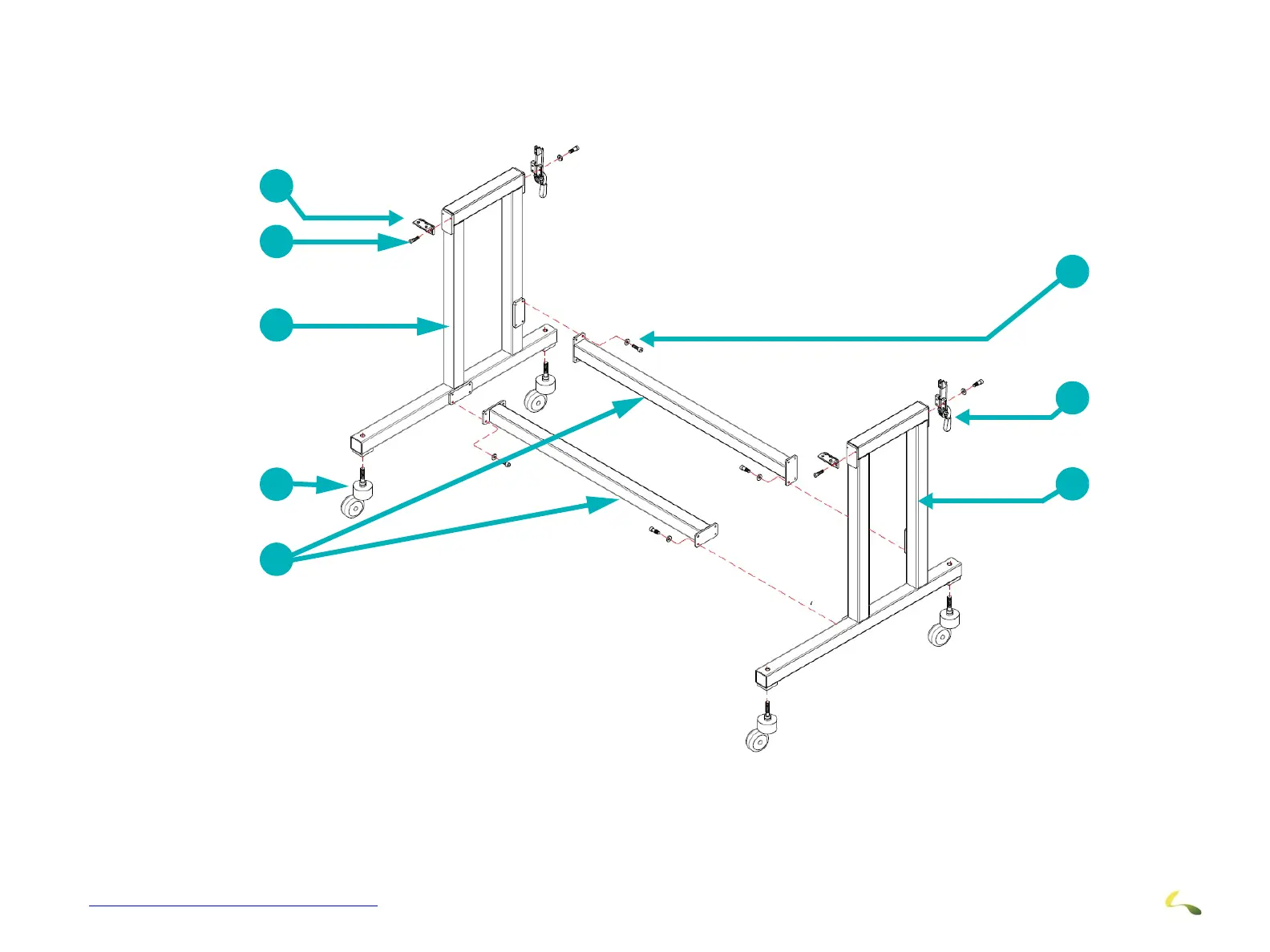

Ensure all table base parts are in close proximity and assemble the table base in accordance with the illustration. Adjust
table wheels such that table is level to floor.
1
3
8
7
6
2
4
Figure 3-45: Media Table Base Assembly
1 Hinge 2 Hinge Screw 3 Left Table Leg 4 Caster
5 Cross Members 6 Screw and Washer 7 Locking Mechanism 8 Right Table Let
5
To Next Page
