EFI Pro 16h - Install Media Vacuum Foot Pedal

Document ID: OMM-00131 Rev. E
45
3.13 Install Media Vacuum Foot Pedal
Place the Media Vacuum Foot Pedal in the desired location. The Foot Pedal is already attached to the printer and stored in
the PC compartment. There is a slot in the bottom of the door that the cable passed through.

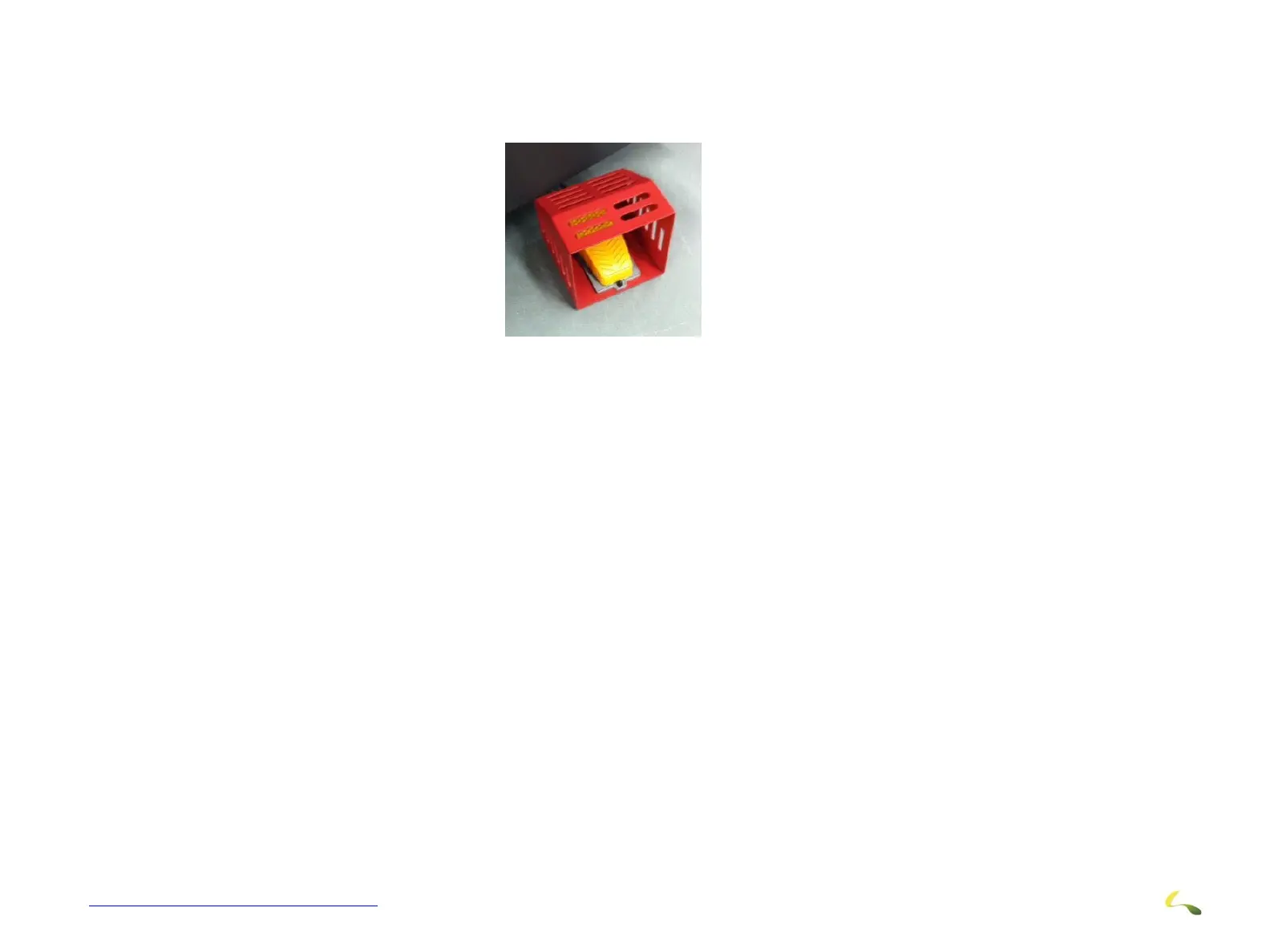

Figure 3-43: Media Vacuum Foot Pedal Assembly
