________________________________________________________________
(Page 1 / 2)

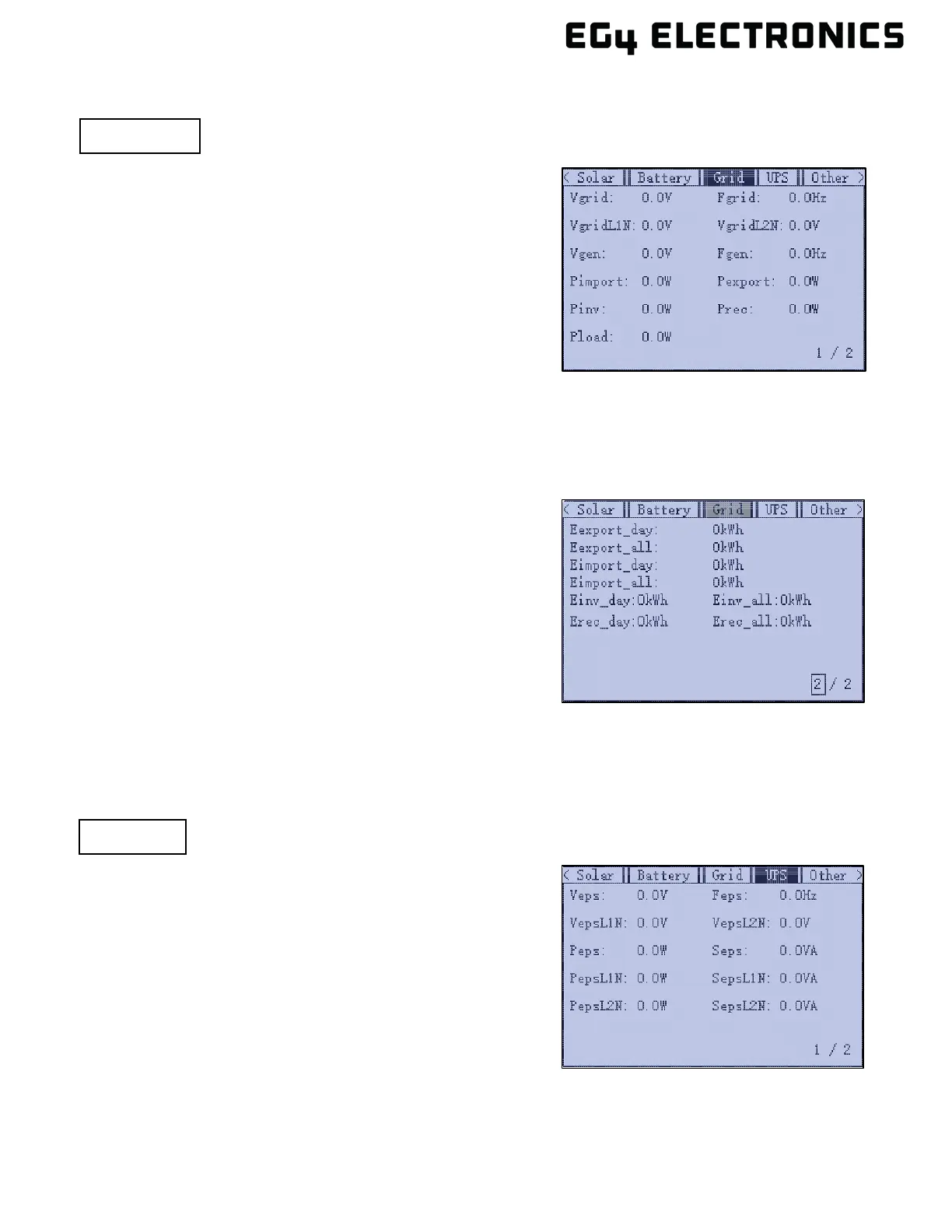

Veps: Load voltage
Feps: Load frequency
VepsL1N: L1-N voltage of load
VepsL2N: L2-N voltage of load
Peps: The active power of load
Seps: The apparent power of load
PepsL1N: L1-N active power of load
SepsL1N: L1-N apparent power of load
PepsL2N: L2-N active power of load
SepsL2N: L2-N apparent power of load
________________________________________________________________
(Page 1 / 2)
Vgrid: Grid voltage
Fgrid: Grid frequency
VgridL1N: Split phase L1-N voltage
VgridL2N: Split phase L2-N voltage
Vgen: Generator voltage
Fgen: Generator frequency
Pimport: Power input from the grid to the inverter
Pexport: Power output from the inverter to the grid. The
output should be 0kWh since this is an off-grid inverter.
Pinv: Inverted power
Prec: Rectified power
Pload: Load power
(Page 2 / 2)
Eexport_day: Power the inverter has exported to the grid
during the day. The output should be 0kWh since this is an
off-grid inverter.
Eexport_all: Total power the inverter has exported to
the grid. The output should be 0kWh since this is an
off-grid inverter.
Eimport_day: Power imported from the grid to the inverter
during the day
Eimport_all: Total power imported from the grid to the inverter
Einv_day: Amount of inverted power in a day
Erec_day: Amount of rectified power in a day
