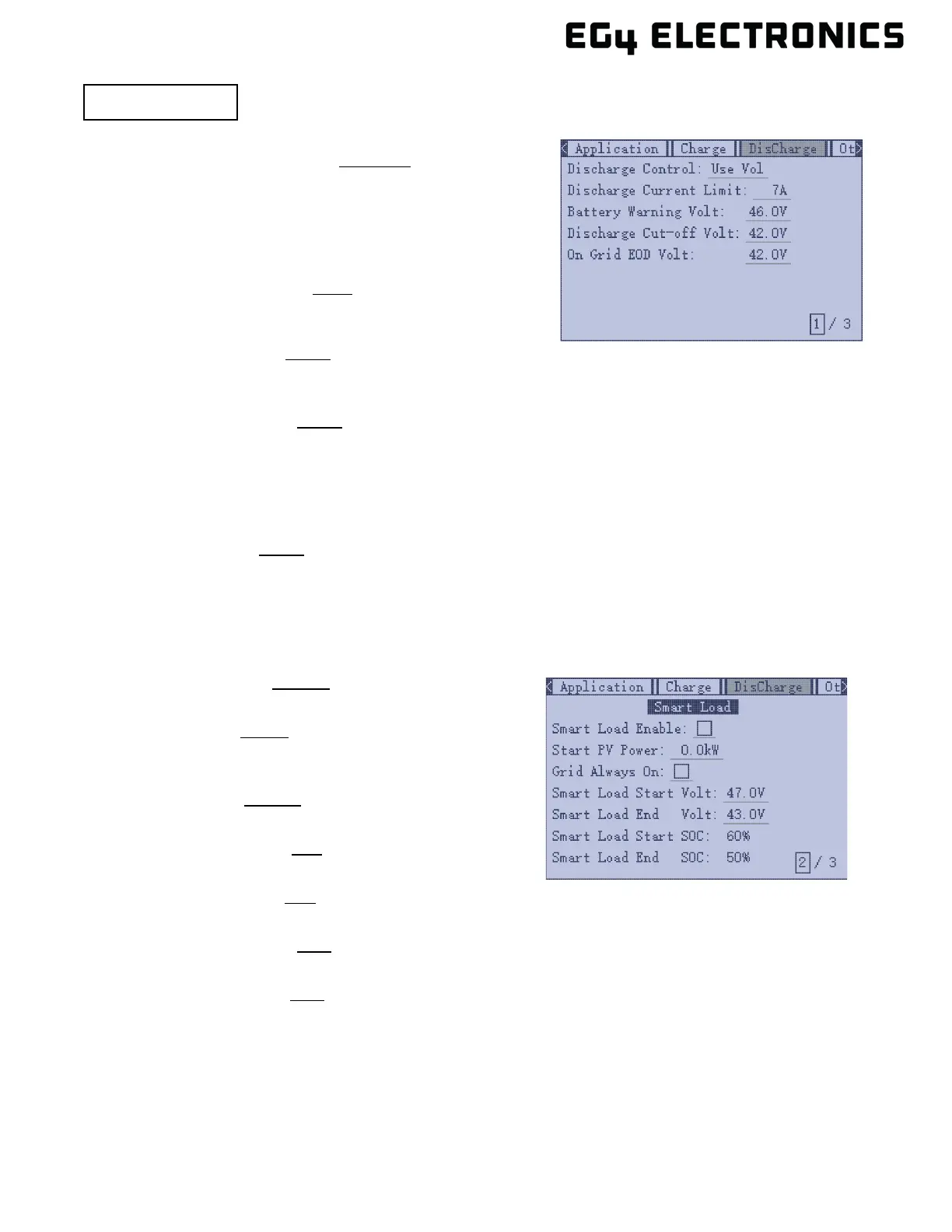

(Page 1 / 3)
Discharge Control: U
se Vol | Use SOC
Battery discharge can be based on voltage or SOC.
Set to “According to Voltage” when using a lead-acid
battery or a lithium battery in lead-acid mode. Set to
“According to SOC” when using a compatible Lithium
battery.
Discharge Current Limit: 250
A
Set the discharge current for lead-acid batteries. Set this
according to the battery requirements. Range is 1 – 250A.
Battery Warning Volt:
44.0V
The inverter will display a battery low warning when the battery voltage falls to this value. Set this
according to the battery requirements. Range is 40 – 56VDC.
Discharge Cut-off Volt: 42.0V
Voltage at which the batteries will stop discharging in off-grid mode. When the battery reaches the
cut-off voltage, the inverter will force charge +2V when grid available. Discharge will be restored
after forced charge completes the 2V charging unless the battery voltage is still below 48V. The
battery needs to be above 48V to allow discharge. Set this according to the battery requirements.
Range is 40 – 56VDC.
On Grid EOD Volt: 42.0
V
When the set voltage is met, the inverter will change to on-grid mode. For example, if the voltage is
set to 51 volts, the inverter will remain in off grid mode until the set battery voltage. At that point, the
inverter will require power from the grid or from solar.
(Page 2 / 3) - Smart Load
Smart Load Enable: D
isable | Enable
Turns the smart load feature on or off.
Start PV Power: 0.5kW
When the actual PV input power is greater than the
value, the smart load function takes effect.
Grid Always On: D
isable | Enable
Normally its enabled when connected to the grid.
Smart Load Start Volt: 54
V
Set the voltage point at which smart load will take effect.
Smart Load End Volt:
48V
Smart load end voltage point.
Smart Load Start SOC:
90%
The SOC value smart load is enabled.
Smart Load End SOC: 60%
The SOC value smart load is disabled.
