Electrolux EWM2100 - Examples of Alarm Display; Operation of Alarms During Diagnostics

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 13/91 599 70 56-70
Notes:
• The first letter of the alarm code “E” (Error) is not displayed, since this letter is common to all alarm
codes.
• The alarm code “families” are shown in hexadecimal; in other words:
→ A is represented by 10 flashes
→ B is represented by 11 flashes
→ ...
→ F is represented by 15 flashes
• Configuration errors are shown by the flashing of all the LEDs (user interface not configured).
5.2.2 Examples of alarm display

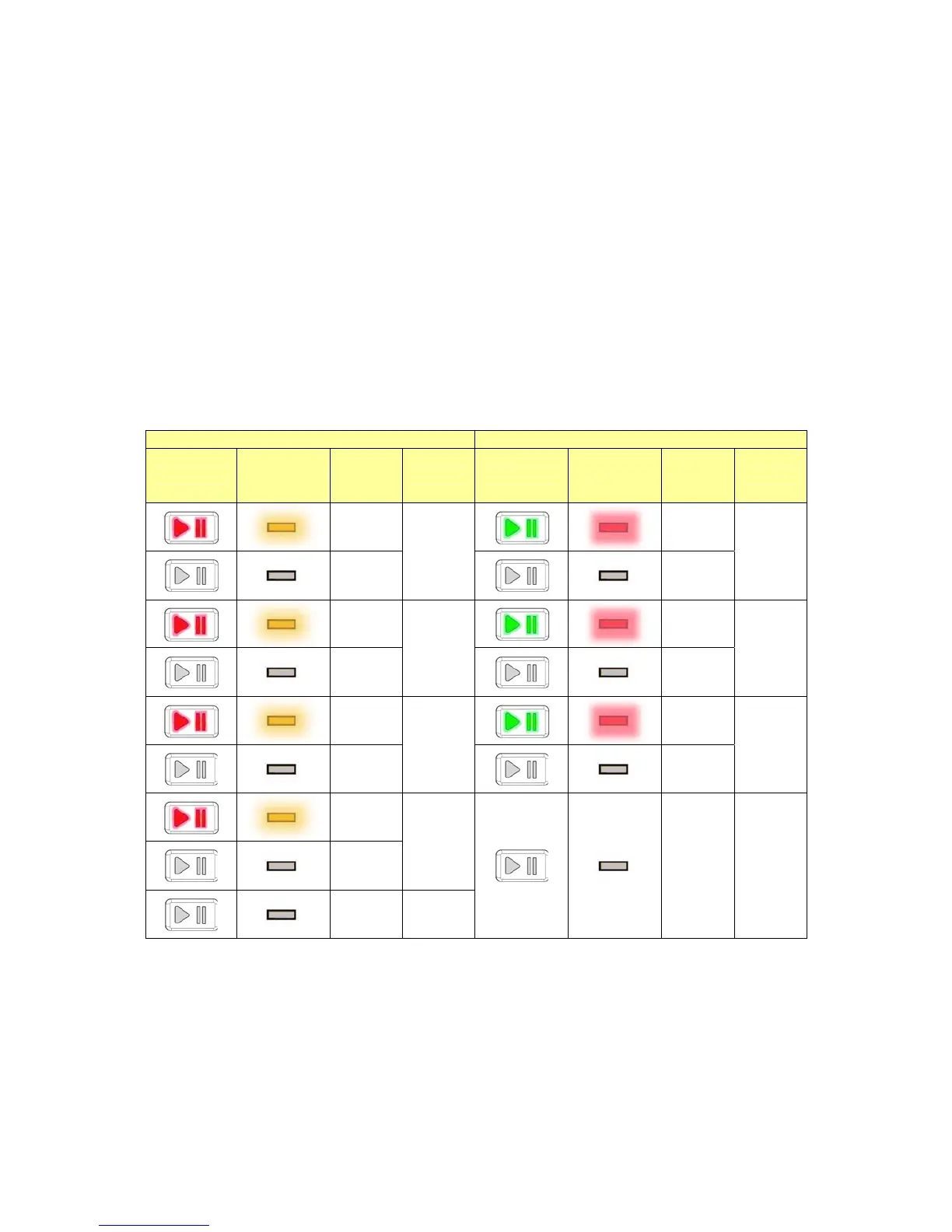

Example: Alarm E43 (problems with the door interlock Triac) will display the following:
• the sequence of four flashes of the START / PAUSE button with red light (version AEG LED yellow
light), indicates the first number E
43;
• the sequence of three flashes of the START / PAUSE button with green light (version AEG LED red
light), indicates the second number E4
3;
5.2.3 Operation of alarms during diagnostics
All alarms are enabled during the components diagnostic phase.
START / PAUSE button with red light START / PAUSE button with green light
ON/OFF
On/Off
(Ver. AEG)
Time
(Sec.)
Value ON/OFF
On/Off
(Ver. AEG)
Time
(Sec.)
Value
0.5
0.5
0.5
1
0.5
1
0.5
0.5
0.5
2
0.5
2
0.5
0.5
0.5
3
0.5
3
0.5
0.5
4
1.5 Pause
2.5 Pause
