Electrolux EWM2100 - E73: NTC Sensor on Drying Duct Faulty

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 64/91 599 70 56-70
NO
NO
YES
YES
NO
YES

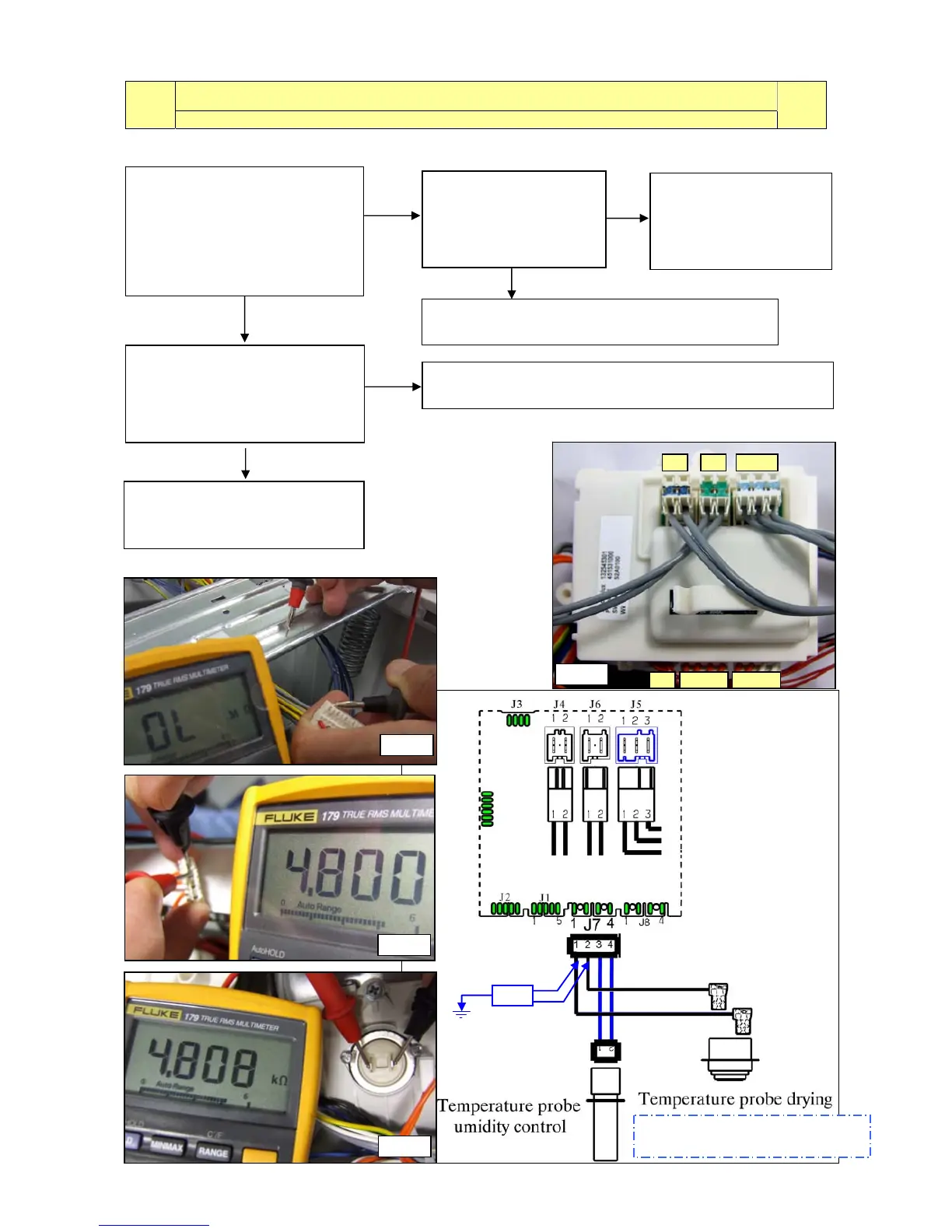

E73: NTC sensor on drying duct faulty
E73
Ohm value of the NTC out of limits
E73
Tests to be performed:
fig. 6
Measure the value of the NTC
sensor across contacts J7-1 and
J7-2 of the WD board
connector.- (see fig. 30) -
Is the value correct?
(between 4.7 and 5.3 KΩ at
20°C
)
Detach the connector
and measure the NTC
sensor directly.
Is the value correct?
- (see fig.31) -
Replace the NTC
sensor and restart the
diagnostic cycle to
check for further alarms.
Measure across terminals J7-1,
J7-2 of the connector and the
structure of the appliance – see
fig. 6 - Is there any current
leakage?
Check/replace the wiring and restart the diagnostic
cycle to check for further alarms.
Replace the WD board and restart the diagnostic cycle to
check for further alarms.
Check/replace the wiring and
restart the diagnostic cycle to
check for further alarms.
WD
board
∞
Ω
fig. 29
J4 J6 J5
J7 J8J1
fig. 31
fig. 30
If there are traces of burning on the
circuit board, refer to page 90
