Electrolux EWM2100 - E72: Drying NTC Sensor on Condenser Faulty

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 63/91 599 70 56-70
NO
NO
YES
YES
NO
YES

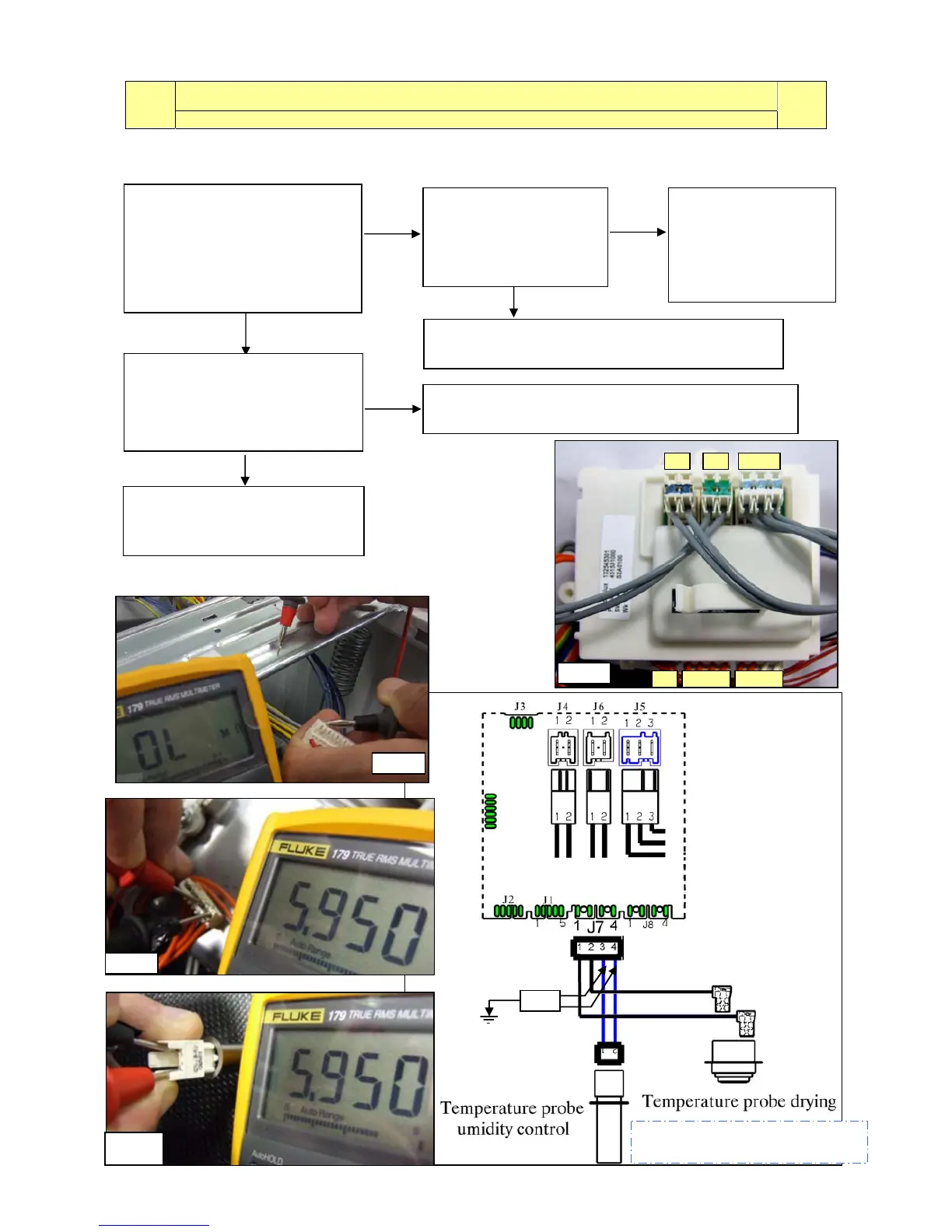

E72: Drying NTC sensor on condenser faulty
E72
Ohm value of the NTC out of limits
E72
Tests to be performed:
Measure the value of the NTC
sensor across contacts J7-3 and
J7-4 of the WD board connector.
- see fig. 32 -
Is the value correct?
(between 5.7 and 6.3 KΩ at
20°C
)
Detach the connector
and measure the NTC
sensor directly.
Is the value correct?
- see fig.33 -
Replace the NTC
sensor and restart the
diagnostic cycle to
check for further
alarms.
Measure across terminals J7-3,
J7-4 of the connector and the
structure of the appliance – see
fig. 6 -
Is there any current leakage?
Check/replace the wiring and restart the diagnostic
cycle to check for further alarms.
Replace the WD board and restart the diagnostic
cycle to check for further alarms.
Check/replace the wiring and
restart the diagnostic cycle to
check for further alarms.
∞
Ω
WD
board
fig. 6
fig. 29
J4 J6 J5
J7 J8J1
fig. 32
fi
g
. 33
Fig.33
If there are traces of burning on the
circuit board, refer to page 90
