Electrolux EWM2100 - E69: Washing Heating Element Interrupted (Version WM)

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 60/91 599 70 56-70
YES
NO
NO
YES

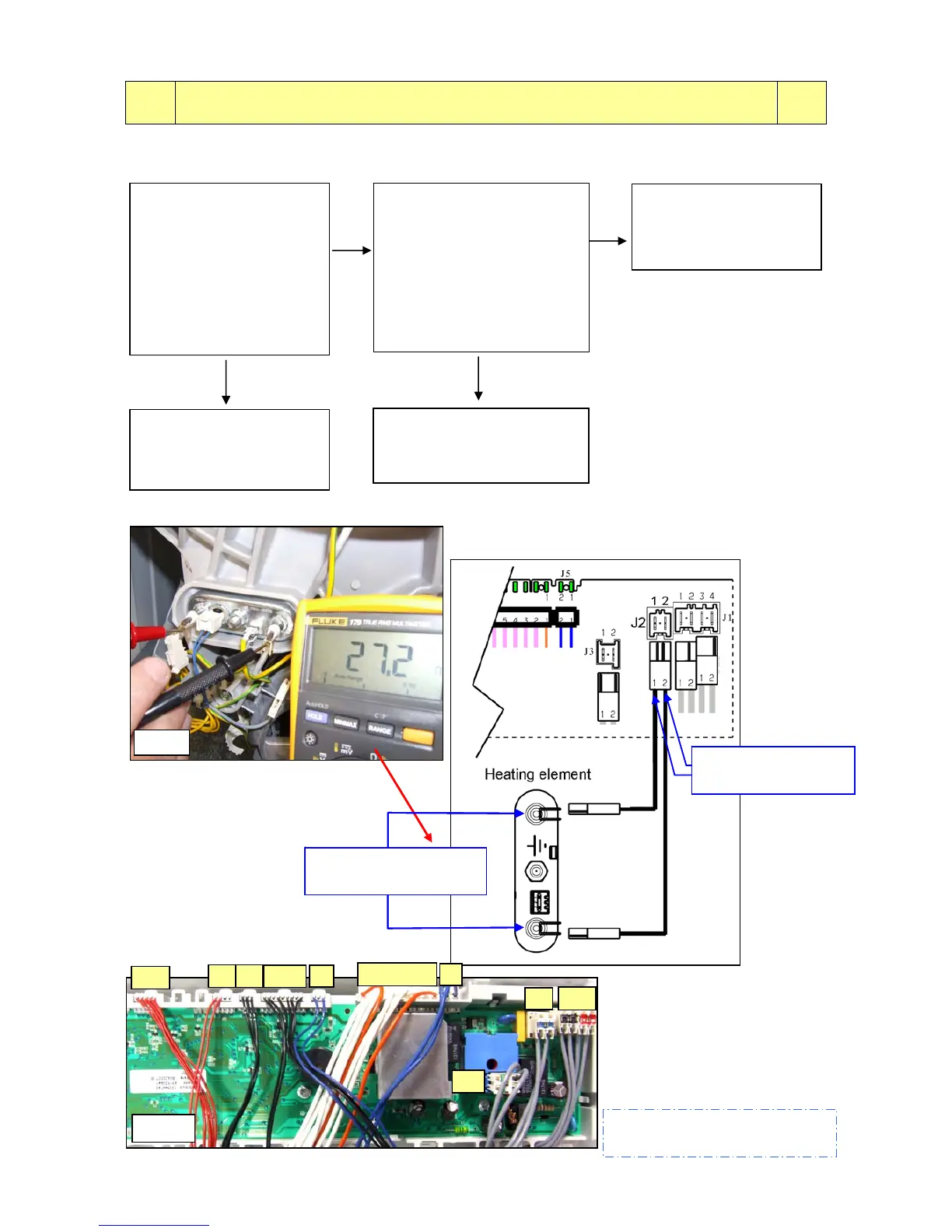

E69 E69: Washing heating element interrupted (version WM) E69
Tests to be performed:
Measure the heating
element value (Ω) across
terminals J2-2 ÷ J2-1of the
wiring connector.
-see fig.4-
Is the value correct?
(26÷28Ω for 230V/1950W,
28÷31 for 240V/1950W)
Replace the circuit board
and restart the diagnostic
cycle to check for further
alarms.
Measure the ohmic value
directly on the terminals of
the heating element (detach
the connectors)
-see fig 13-
Is the value correct?
(26÷28Ω for 230V/1950W,
28÷31 for 240V/1950W)
Replace the heating
element and restart the
diagnostic cycle to check
for further alarms.
Check/replace the wiring and
restart the diagnostic cycle to
check for further alarms.
Fig.13
If there are traces of burning on
the circuit board, refer to page 90
Circuit
board
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
J1
J2
U3
J5
J7
J8
J9
J10 J11
J16
Fig.4
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
