Electrolux EWM2100 - E69: Washing Heating Element Interrupted (Version WD)

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 61/91 599 70 56-70
YES
NO
NO
YES

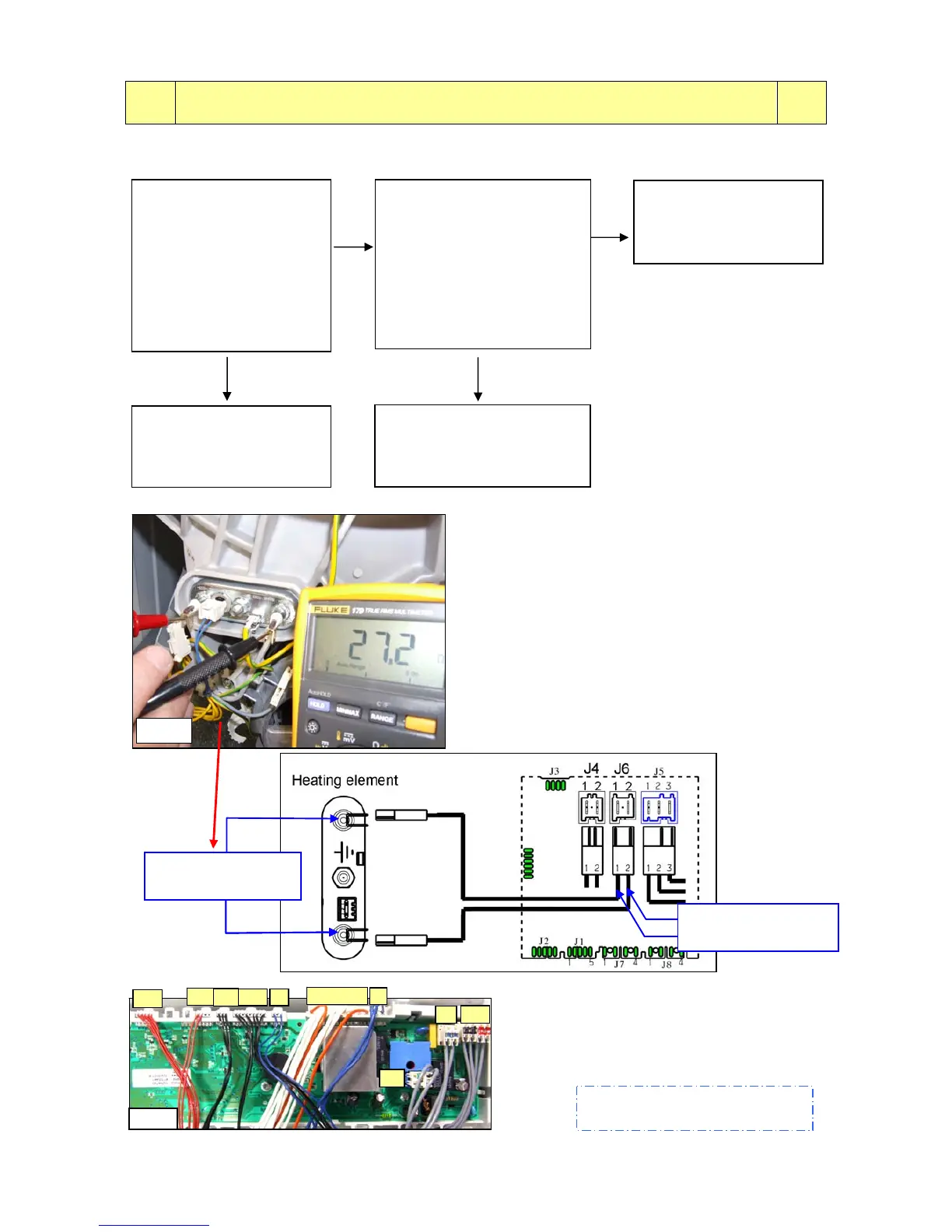

E69 E69: Washing heating element interrupted (version WD) E69
Tests to be performed:
Measure the heating
element value (Ω) across
terminals J6-2 ÷ J6-1 of the
wiring connector.
-see fig.4-
Is the value correct?
(26÷28Ω for 230V/1950W,
28÷31 for 240V/1950W)
Replace the WD board and
restart the diagnostic cycle
to check for further alarms.
Measure the ohmic value
directly on the terminals of
the heating element (detach
the connectors)
-see fig 13-
Is the value correct?
(26÷28Ω for 230V/1950W,
28÷31 for 240V/1950W)
Replace the heating
element and restart the
diagnostic cycle to check
for further alarms.
Check/replace the wiring and
restart the diagnostic cycle to
check for further alarms.
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
If there are traces of burning on the
circuit board, refer to page 90
WD
board
Fig.13
J1
J2
U3
J5
J7
J8
J9
J10
J11
J16
Fig.4
26÷28Ω 230V 1950W
28÷31Ω 240V 1950W
